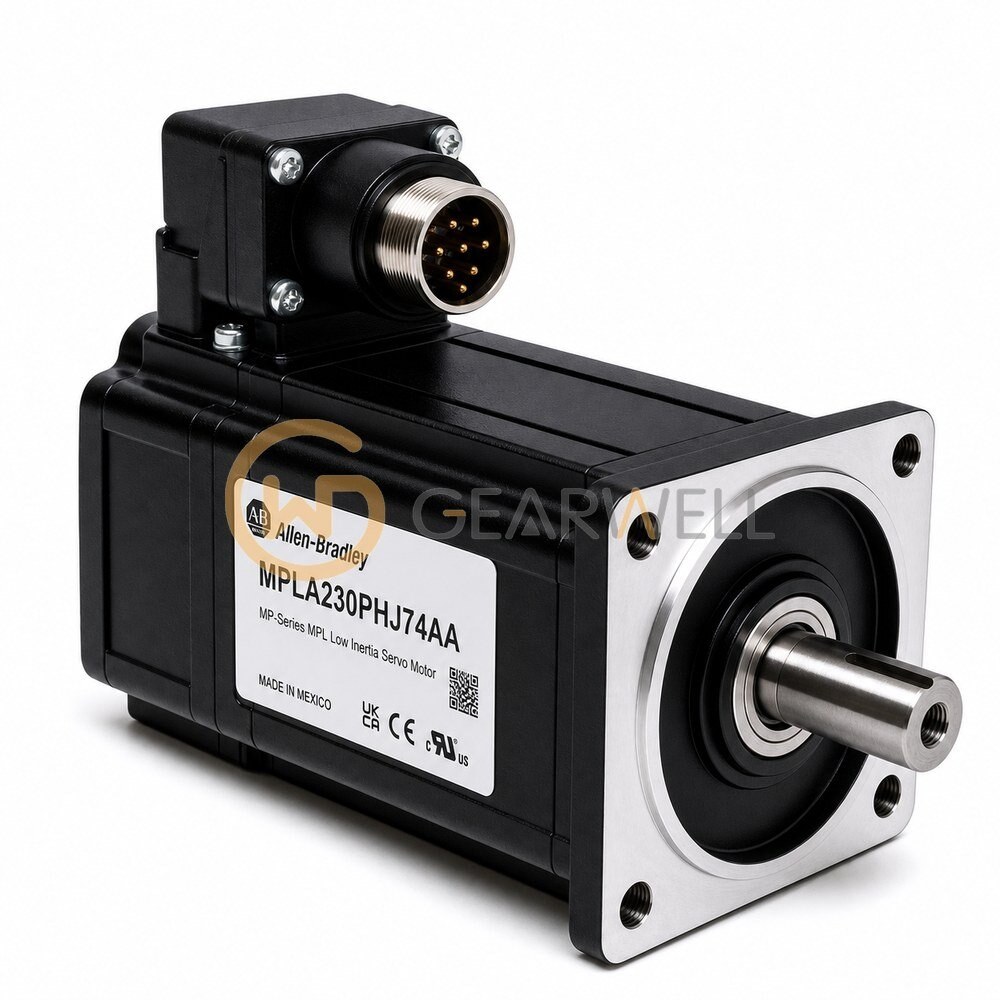

Allen-Bradley MPL-A230P-HJ74AA Kinetix MPL 0.86 kW Servo Motor
- Brand
- Allen-Bradley
- Model
- MPLA230PHJ74AA
- GEARWELL SKU
- GWP-000001834
- Category
- Industrial Automation Parts
Key specifications
- Feedback
- 2000 lines/revolution incremental encoder
- Connectors
- SpeedTEC DIN, right-angle, 180-degree rotatable
- Rated speed
- 5000 rpm
- Brake option
- 24 V DC holding brake
- Product type
- Kinetix MPL low-inertia rotary servo motor
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPL-A230P-HJ74AA is a Kinetix MPL low-inertia permanent magnet servo motor for 200 V-class drives in the 75 mm frame, rated 0.86 kW at 5000 rpm with 2.10 N·m continuous stall torque and 8.20 N·m peak stall torque. This version has a 2000 line incremental encoder, a keyed shaft without shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, a 24 V DC holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
Technical reference
| Product name | Allen-Bradley MPL-A230P-HJ74AA Kinetix MPL 0.86 kW Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPLA230PHJ74AA |
| Category | Industrial Automation Parts |
| Feedback | 2000 lines/revolution incremental encoder |
| Connectors | SpeedTEC DIN, right-angle, 180-degree rotatable |
| Rated speed | 5000 rpm |
| Brake option | 24 V DC holding brake |
| Product type | Kinetix MPL low-inertia rotary servo motor |
| Motor rated output | 0.86 kW |
| Voltage class | 200 V class |
| Nominal motor voltage | 230 V |
| Shaft configuration | Shaft key; no shaft seal |
