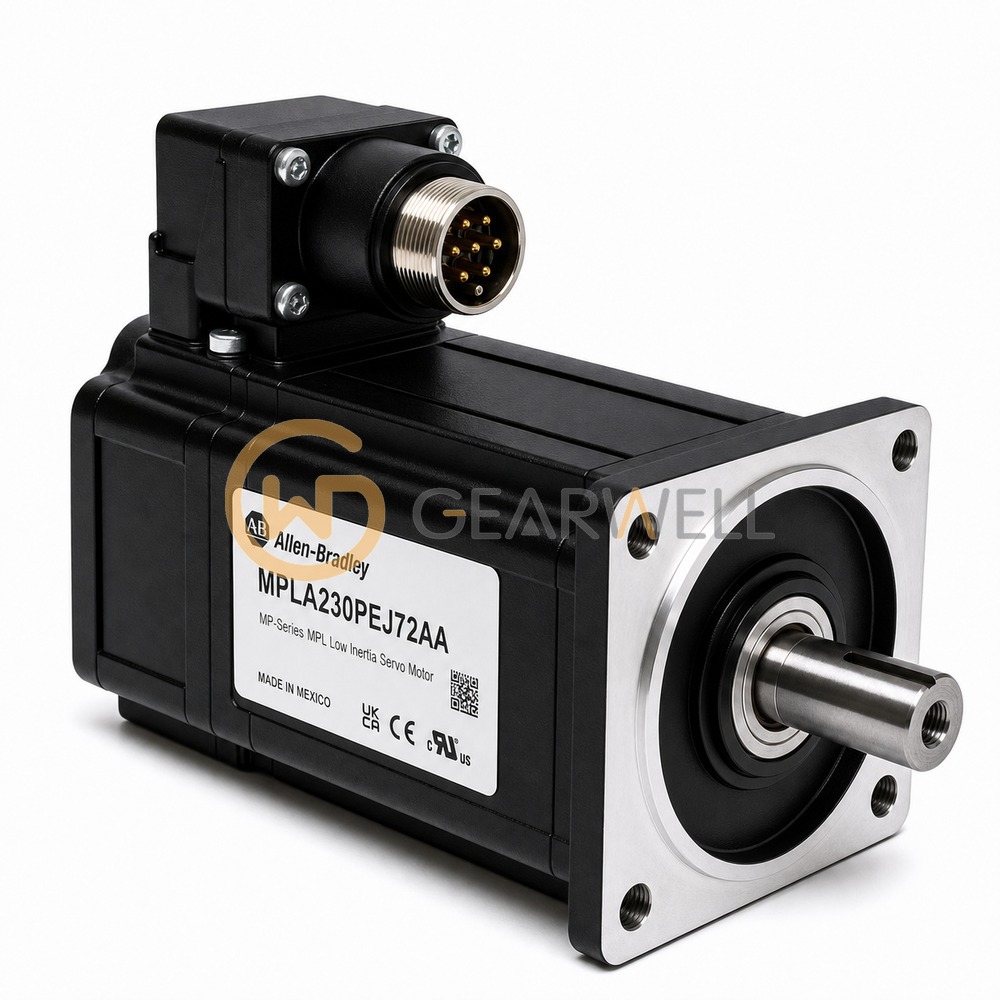

Allen-Bradley MPLA230PEJ72AA MP-Series Low-Inertia Brushless Servo Motor

Product overview

The Allen-Bradley MPL-A230P-EJ72AA is a Kinetix MPL low-inertia permanent magnet servo motor for 200 V-class drives in the 75 mm frame, rated 0.86 kW at 5000 rpm with 2.10 N·m continuous stall torque and 8.20 N·m peak stall torque. This version has a 128 sin/cos absolute single-turn encoder (Hiperface), a keyed shaft without shaft seal, a right-angle SpeedTec DIN connector that rotates through 180°, no holding brake and an IEC metric mounting flange. Rockwell designs the MPL range for high-performance motion systems such as packaging, converting, material handling and electronic assembly, with a high torque-to-size ratio and IP50 protection as standard without a shaft seal.
