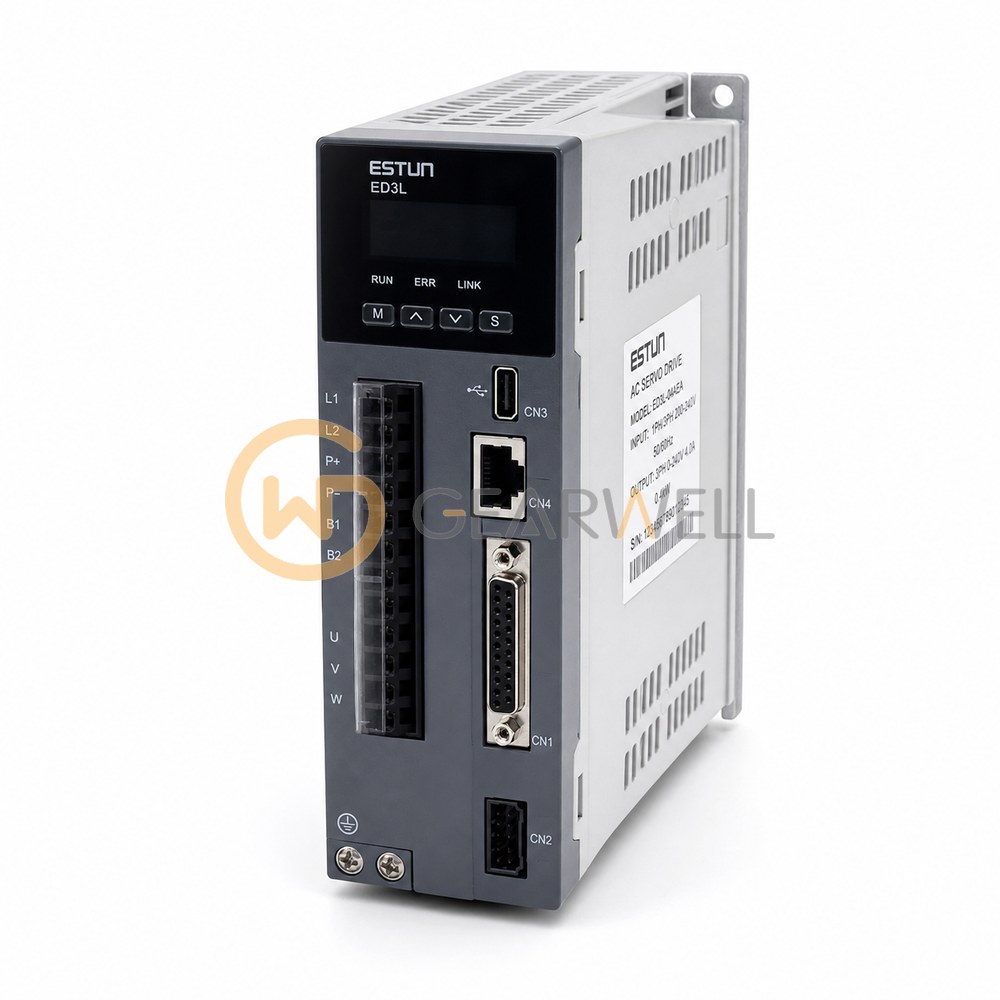

ESTUN ED3L-04AEA 400 W EtherCAT AC Servo Drive
- Brand
- ESTUN
- Model
- ED3L-04AEA
- GEARWELL SKU
- GWP-000002441
- Category
- Industrial Automation Parts
Key specifications
- Input
- 1-phase 200–240 V AC, -15% to +10%, 50/60 Hz
- Rated power
- 400 W
- Encoder interface
- Serial encoder
- Product type
- EtherCAT AC servo drive
- Continuous output current
- 2.9 A rms
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | ESTUN ED3L-04AEA 400 W EtherCAT AC Servo Drive |
|---|---|
| Brand | ESTUN |
| Model | ED3L-04AEA |
| Category | Industrial Automation Parts |
| Input | 1-phase 200–240 V AC, -15% to +10%, 50/60 Hz |
| Rated power | 400 W |
| Encoder interface | Serial encoder |
| Product type | EtherCAT AC servo drive |
| Continuous output current | 2.9 A rms |
| Single-phase power supply capacity | 1.2 kVA |
| Protection rating | IP20 with all terminals installed in place |
| Operating humidity | 5–95% RH, non-condensing |
| Actual manufacturer | ESTUN Automation |
| Instantaneous maximum output current | 11.5 A rms |
| Operating temperature | -5 to +55 °C; -5 to +40 °C for zero-gap installation |
