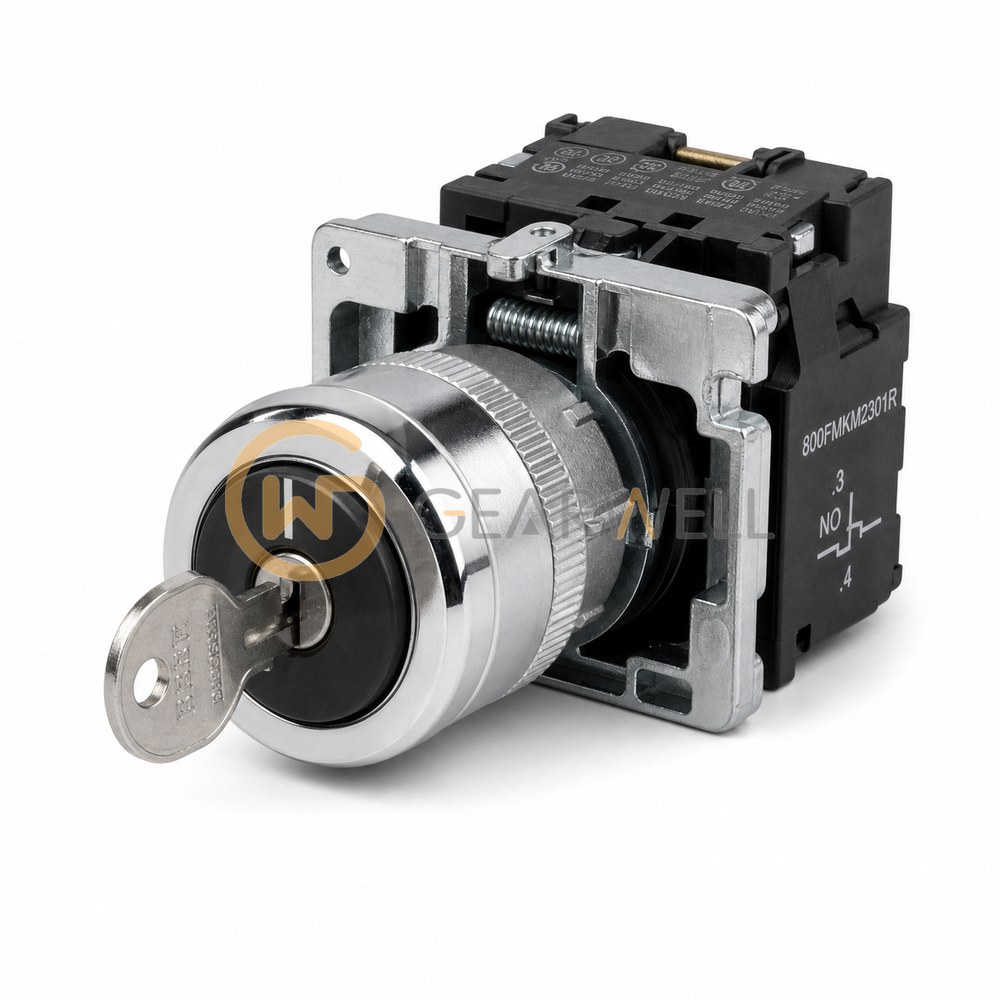

Allen-Bradley 800FMKM2301R 2-Position Maintained Key Selector, Both-Position Removal
- Brand
- Allen-Bradley
- Model
- 800FMKM2301R
- GEARWELL SKU
- GWP-000003109
- Category
- Industrial Automation Parts
Key specifications
- Humidity
- ≤95% RH from 25...60 °C (77...140 °F)
- Key code
- 3801
- Positions
- 2
- Hole diameter
- 22.5 mm
- Operator type
- Keyed selector switch
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 800FM-KM2301R is a Bulletin 800F 22.5 mm 2-position key-operated selector switch in metal, maintained with a 60° switching angle. The key can be removed in both positions and uses Ronis key number 3801. Keyed operators are rated IP66, Type 4/13.
Technical reference
| Product name | Allen-Bradley 800FMKM2301R 2-Position Maintained Key Selector, Both-Position Removal |
|---|---|
| Brand | Allen-Bradley |
| Model | 800FMKM2301R |
| Category | Industrial Automation Parts |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Key code | 3801 |
| Positions | 2 |
| Hole diameter | 22.5 mm |
| Operator type | Keyed selector switch |
| Operator action | Maintained, 2 position |
| Short-term storage temperature | -40...+85 °C |
| Key removal position | All |
| Operating temperature | -25...+70 °C; below 0 °C requires no freezing moisture or liquids; UL recognized to 55 °C |
| Enclosure compatibility | IP66, Type 4/13 (round metal operator) |
| Included contact blocks | None (operator only) |
| Type of control element | Key |
| Compatible contact-block thermal rating (not included) | 10 A |
