Allen-Bradley 800FMF5MX10 Yellow Flush Push Button, 1 NO Contact
- Brand
- Allen-Bradley
- Model
- 800FMF5MX10
- GEARWELL SKU
- GWP-000000132
- Category
- Industrial Automation Parts
Key specifications
- Illumination
- Non-illuminated
- Product type
- Momentary push-button operator
- Mounting hole
- 22.5 mm
- Operator color
- Yellow
- Operator style
- Flush, round
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

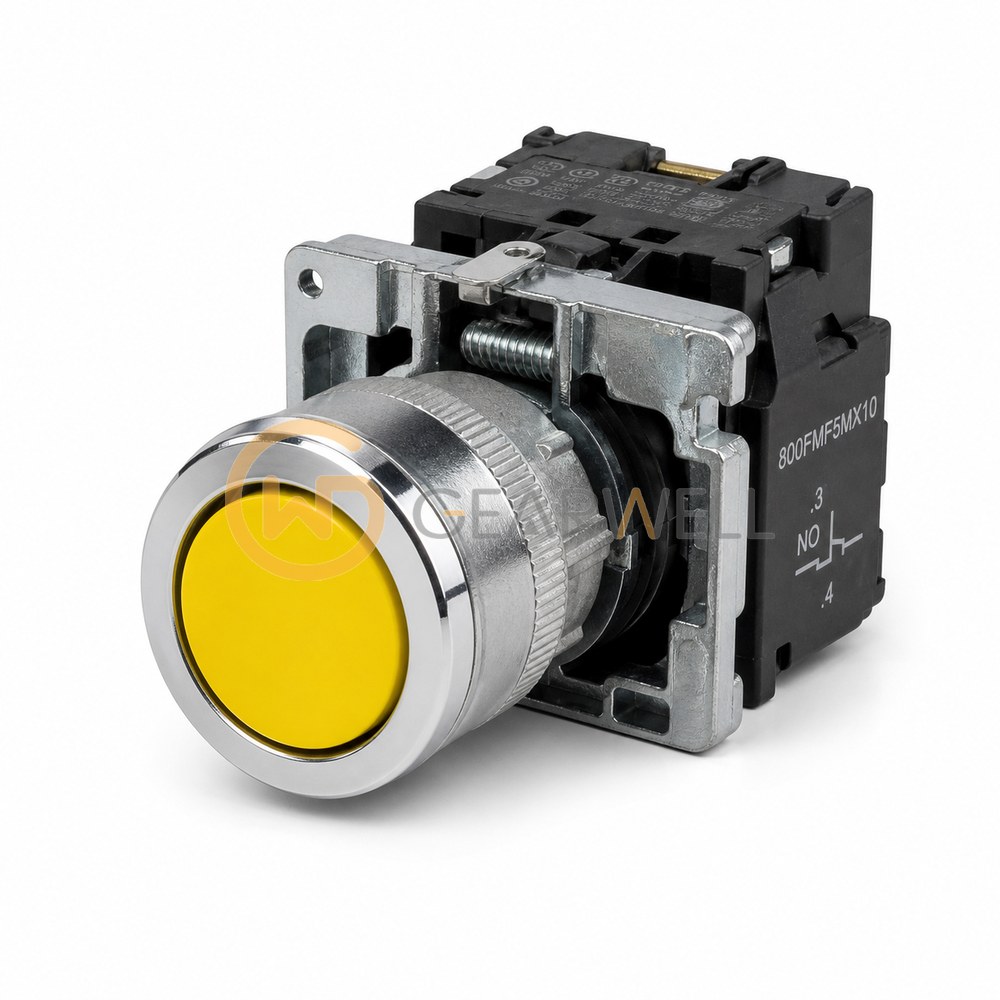

The Allen-Bradley 800FM-F5MX10 is a complete Bulletin 800F 22.5 mm momentary flush push button: a metal operator with a yellow cap (IP66, Type 4/13) together with a metal latch and 1 N.O. contact block with screw terminals. Standard contact blocks are rated A600 and Q600 with 10 A thermal current.
Technical reference
| Product name | Allen-Bradley 800FMF5MX10 Yellow Flush Push Button, 1 NO Contact |
|---|---|
| Brand | Allen-Bradley |
| Model | 800FMF5MX10 |
| Category | Industrial Automation Parts |
| Illumination | Non-illuminated |
| Product type | Momentary push-button operator |
| Mounting hole | 22.5 mm |
| Operator color | Yellow |
| Operator style | Flush, round |
| Minimum mechanical life (cycles) | 1.0E7 |
| Contact termination | Screw termination |
| Contact configuration | 1 N.O. |
| Operator construction | Round metal operator |
| Contact-block thermal current | 10 A |
| Enclosure compatibility | IP66, Type 4/13 (Round metal operator) |
