Allen-Bradley 440R-C23139 Guardmaster MSR131RTP Safety Relay
- Brand
- Allen-Bradley
- Model
- 440R-C23139
- GEARWELL SKU
- GWP-000003500
- Category
- Machine Safety & Vision
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

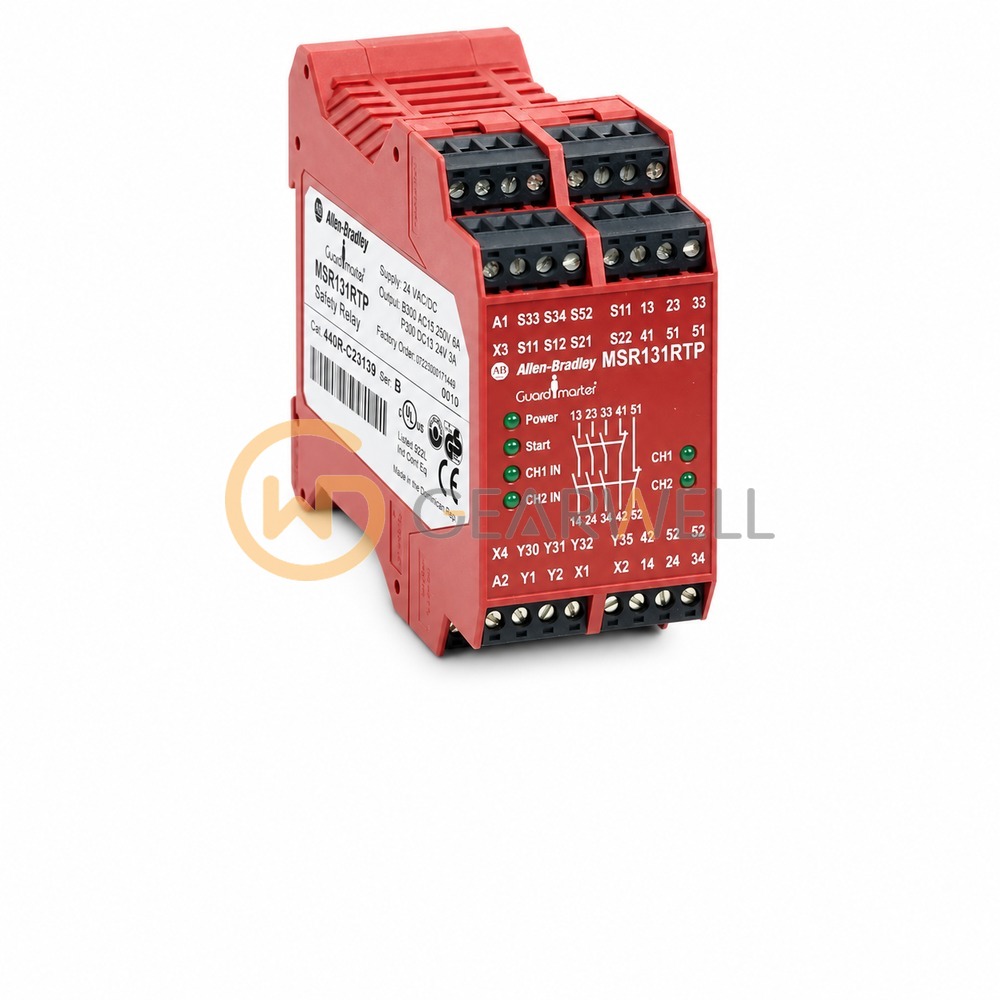

The Allen-Bradley 440R-C23139 is a Minotaur MSR131RTP single-function safety relay for 24V AC/DC with removable screw terminals. Jumpers set automatic/manual or monitored manual reset. It accepts 1 N.C., 2 N.C. or OSSD inputs and has 3 N.O. safety contacts, 2 N.C. auxiliary contacts and 2 PNP solid-state outputs: one shows that the inputs are closed, the other that the safety outputs are active. It is rated Cat. 4, PLe per ISO 13849-1 and SIL 3 per IEC 61508, with a response time of 15 ms. Thermal current is 1 x 6 A or 3 x 5 A, and the housing is 45 mm wide for a 35 mm DIN rail.
Technical reference
| Product name | Allen-Bradley 440R-C23139 Guardmaster MSR131RTP Safety Relay |
|---|---|
| Brand | Allen-Bradley |
| Model | 440R-C23139 |
| Category | Machine Safety & Vision |
