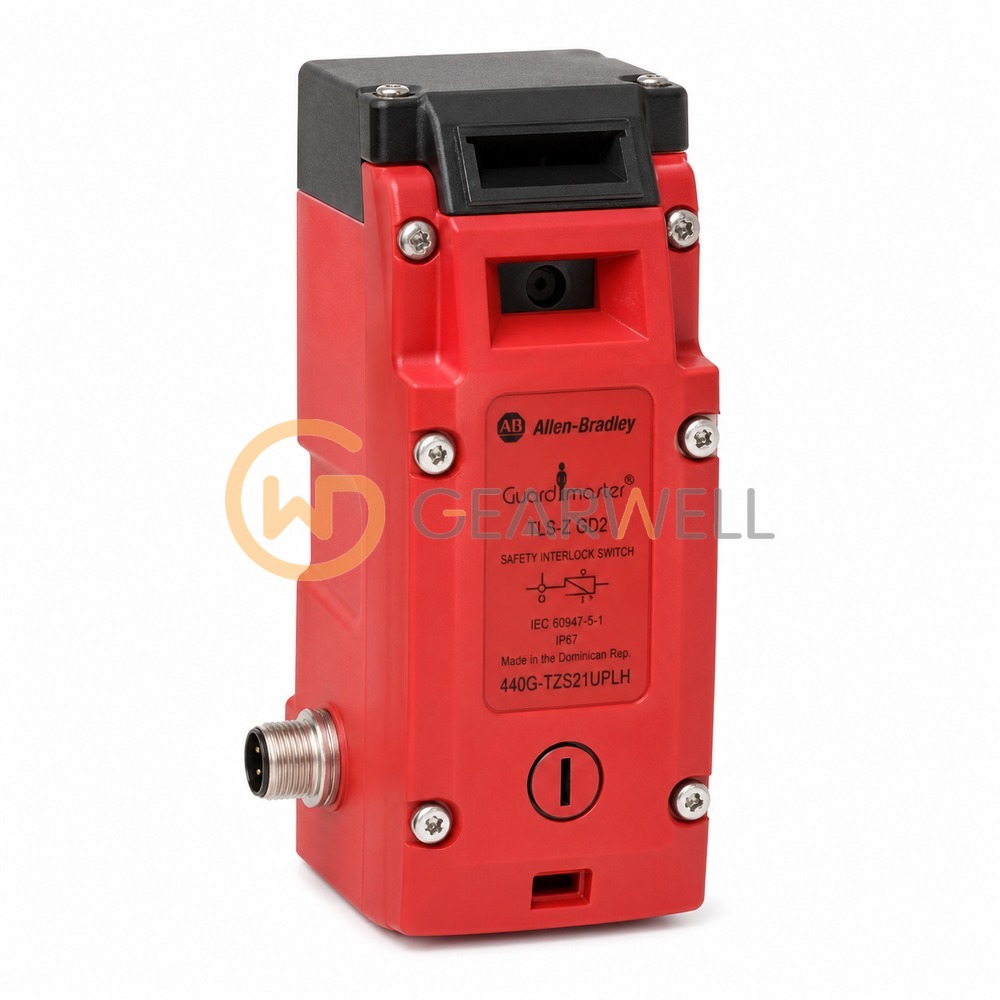

Allen-Bradley 440G-TZS21UPLH Guardmaster TLS-Z GD2 Guardlock Switch
- Brand
- Allen-Bradley
- Model
- 440G-TZS21UPLH
- GEARWELL SKU
- GWP-000002969
- Category
- Machine Safety & Vision
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 440G-TZS21UPLH is a TLS-Z GD2 power-to-lock guard locking switch with a uniquely coded RFID door target (high coding per ISO 14119) and a fully flexible actuator. It has 2 PNP safety outputs and 1 PNP auxiliary output for lock status, 0.2 A max each, and connects through an 8-in. pigtail with an M12 8-pin QD. It is rated PLe, Cat 4 per ISO 13849-1 and runs on 24V DC. Holding force Fzh is 2000 N with steel bolts, the housing is rated IP66 and IP69K for -10…+60 °C, and the switch weighs 400 g.
Technical reference
| Product name | Allen-Bradley 440G-TZS21UPLH Guardmaster TLS-Z GD2 Guardlock Switch |
|---|---|
| Brand | Allen-Bradley |
| Model | 440G-TZS21UPLH |
| Category | Machine Safety & Vision |
