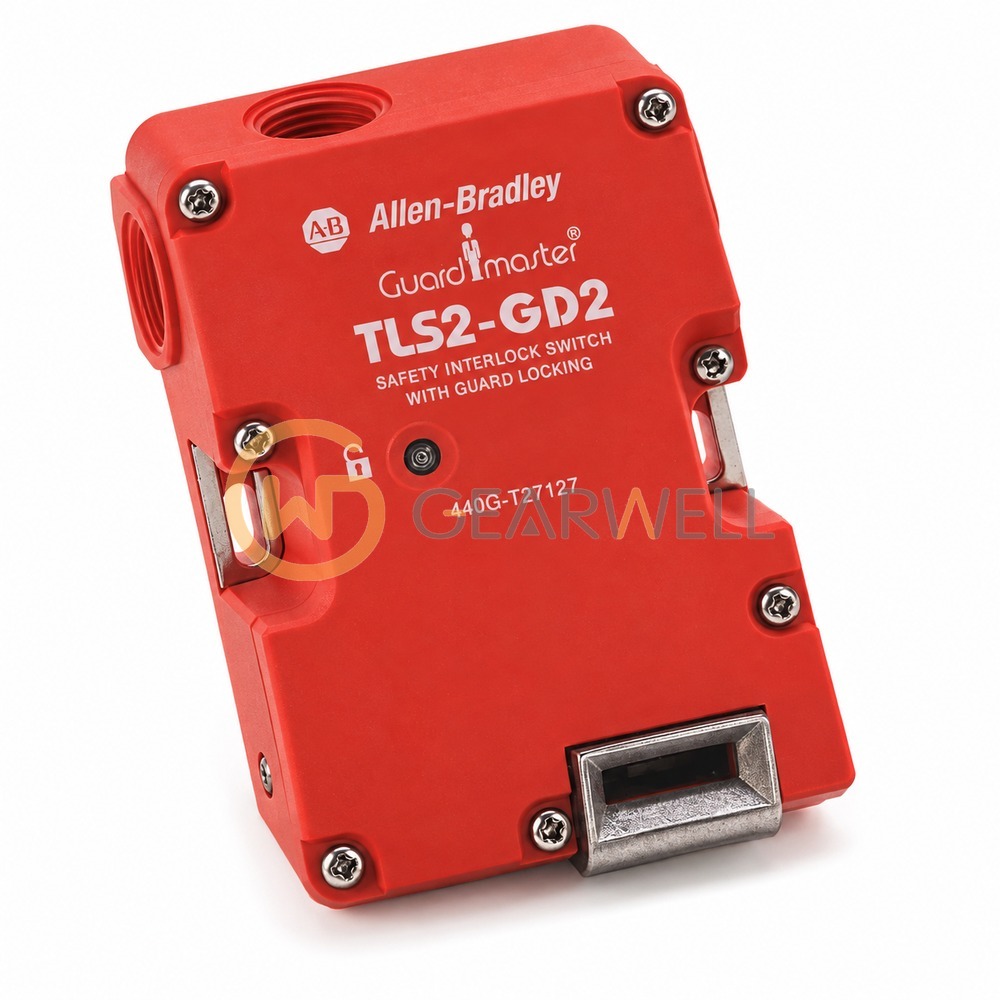

Allen-Bradley 440G-T27127 Guardmaster TLS-GD2 Guardlock Switch
- Brand
- Allen-Bradley
- Model
- 440G-T27127
- GEARWELL SKU
- GWP-000000030
- Category
- Machine Safety & Vision
Key specifications
- Actuator
- Not included
- Locking mode
- TLS-2 GD2, power to lock
- Conduit entry
- M20
- Solenoid voltage
- 24 V AC/DC
- Safety / auxiliary contacts
- 2 NC safety + 1 NO auxiliary
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 440G-T27127 is a TLS-2 GD2 power-to-lock guard locking switch with a 24V AC/DC solenoid and an M20 conduit entry. It is supplied without an actuator; order one separately, such as the 440G-A27011 GD2 standard actuator or the 440G-A27143 fully flexible actuator. The TLS-GD2 has five contacts: 2 N.C. and 1 N.O. for door position and 1 N.C. and 1 N.O. for lock monitoring, with a thermal current of 10 A. Holding force Fzh is 2000 N with steel bolts (1500 N with plastic pins), the solenoid takes 7 W, and the housing is rated IP66, IP67 and IP69K for -20…+60 °C. It is a Type 2 interlocking device with guard locking per ISO 14119, with a mechanical life of 1,000,000 operations and a weight of 400 g.
Technical reference
| Product name | Allen-Bradley 440G-T27127 Guardmaster TLS-GD2 Guardlock Switch |
|---|---|
| Brand | Allen-Bradley |
| Model | 440G-T27127 |
| Category | Machine Safety & Vision |
| Actuator | Not included |
| Locking mode | TLS-2 GD2, power to lock |
| Conduit entry | M20 |
| Solenoid voltage | 24 V AC/DC |
| Safety / auxiliary contacts | 2 NC safety + 1 NO auxiliary |
