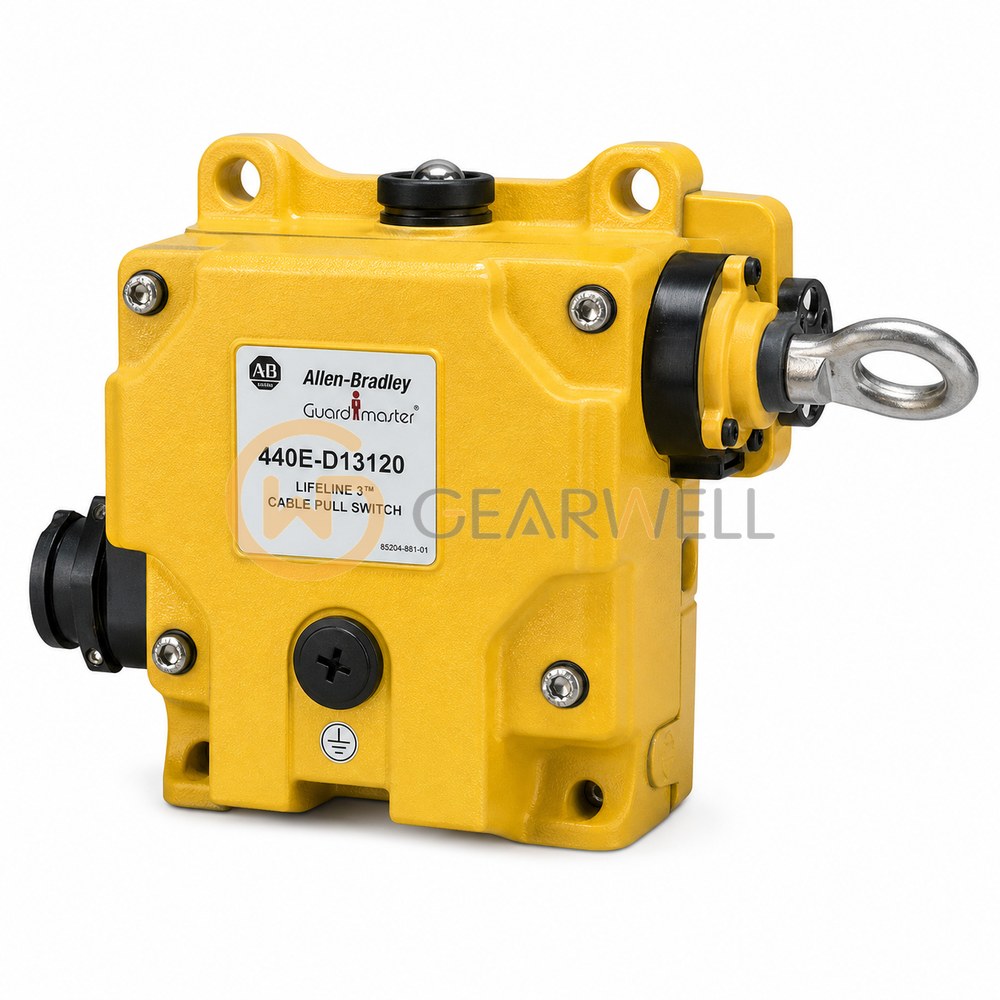

Allen-Bradley 440E-D13120 Industrial Safety Switch
- Brand
- Allen-Bradley
- Model
- 440E-D13120
- GEARWELL SKU
- GWP-000001835
- Category
- Machine Safety & Vision
Key specifications
- Actuator
- Up To 30m Span
- Material
- Die Cast Alloy (Yellow)
- Sub Brand
- Lifeline 3
- Contact Type
- Break Before Make
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 440E-D13120 is a Lifeline 3 cable-pull emergency stop switch to ISO 13850 with 2 N.C. safety and 2 N.O. auxiliary contacts, all direct-opening, and a 1/2 inch NPT conduit entry. It covers spans up to 30 m, locks out on cable pull and on cable release, and resets only with the blue reset knob; a cable status indicator helps with setting up. Thermal current is 10 A, the die-cast housing is rated IP67 for -20…+80 °C, mechanical life is 1,000,000 operations and the weight is 610 g. Rockwell recommends the Lifeline Rope Tensioner System with it.
Technical reference
| Product name | Allen-Bradley 440E-D13120 Industrial Safety Switch |
|---|---|
| Brand | Allen-Bradley |
| Model | 440E-D13120 |
| Category | Machine Safety & Vision |
| Actuator | Up To 30m Span |
| Material | Die Cast Alloy (Yellow) |
| Sub Brand | Lifeline 3 |
| Contact Type | Break Before Make |
