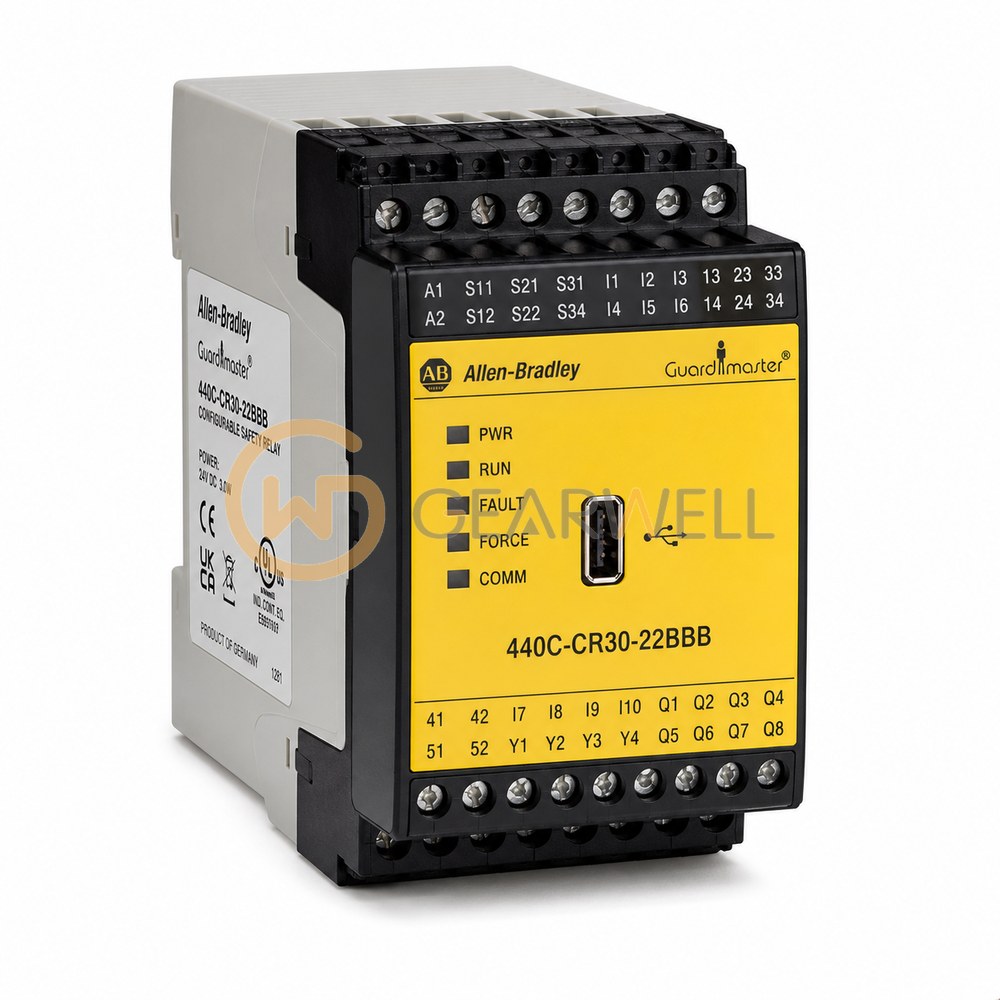

Allen-Bradley 440C-CR30-22BBB PLC Module
- Brand
- Allen-Bradley
- Model
- 440C-CR30-22BBB
- GEARWELL SKU
- GWP-000004408
- Category
- PLCs & I/O
Key specifications
- Depth
- 80 mm
- Width
- 100 mm
- Height
- 90 mm
- Communication
- Modbus
- Evaluation input
- SWS input
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 440C-CR30-22BBB is a Guardmaster 440C-CR30 software-configurable safety relay rated PLe and SIL 3, with 22 embedded safety I/O: 10 inputs, 2 multi-purpose inputs that can serve as single-wire safety inputs, 6 configurable terminals (input, test output or output), 2 outputs and 2 multi-purpose outputs that can serve as single-wire safety outputs. It has an embedded USB programming port, an embedded serial port with Modbus RTU and two plug-in slots for Micro800 plug-ins (up to 38 digital I/O), plus an optional 440C-ENET Ethernet plug-in. It is powered from 24V DC and is configured with safety function blocks in Connected Components Workbench or Studio 5000 Logix Designer.
Technical reference
| Product name | Allen-Bradley 440C-CR30-22BBB PLC Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 440C-CR30-22BBB |
| Category | PLCs & I/O |
| Depth | 80 mm |
| Width | 100 mm |
| Height | 90 mm |
| Communication | Modbus |
| Evaluation input | SWS input |
| Enclosure type rating | IP20 |
| Continuous output current | 0.5 A @ terminals 12...19 |
| Aggregate current of outputs per device, max | 3 A |
