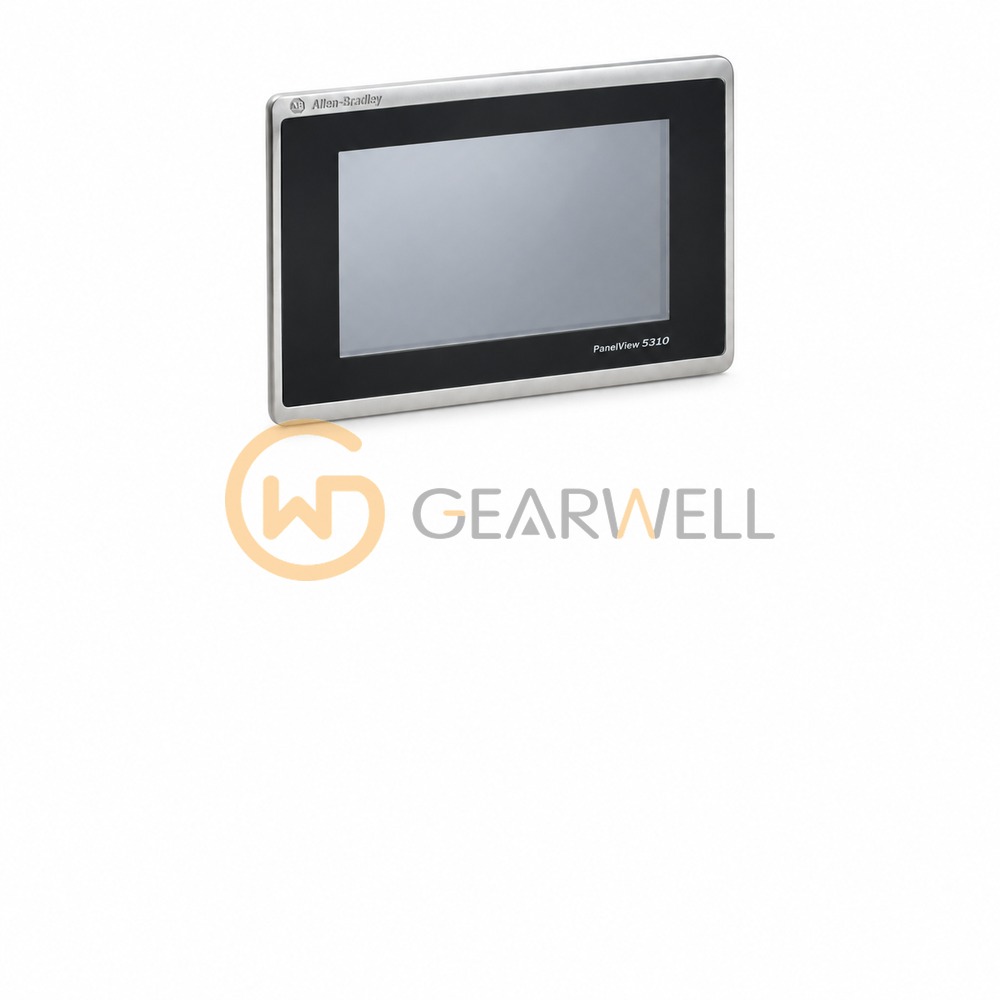

Allen-Bradley 2713P-T9WD1 PanelView 5310 Wide Touchscreen Terminal
- Brand
- Allen-Bradley
- Model
- 2713P-T9WD1
- GEARWELL SKU
- GWP-000002350
- Category
- HMIs & Industrial PCs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2713P-T9WD1 is a PanelView 5310 graphic terminal with a 9 in. widescreen color TFT touch screen (analog resistive), 800 x 480 pixels and 24-bit color, and an LED backlight rated 50,000 h. Power consumption is 14 W max. It talks to ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 controllers over EtherNet/IP (firmware V27 or later), is programmed with Studio 5000 View Designer, and supports up to 100 user-defined screens. It has 1 GB RAM and 1 GB of nonvolatile project storage, one 10/100Base-T Ethernet port, a USB 2.0 host port and an SD card slot, runs on 24V DC (18…30V DC), is rated for 0…50 °C, and the front meets NEMA/UL Type 4X, 12, 13 and IP66 when panel mounted.
Technical reference
| Product name | Allen-Bradley 2713P-T9WD1 PanelView 5310 Wide Touchscreen Terminal |
|---|---|
| Brand | Allen-Bradley |
| Model | 2713P-T9WD1 |
| Category | HMIs & Industrial PCs |
