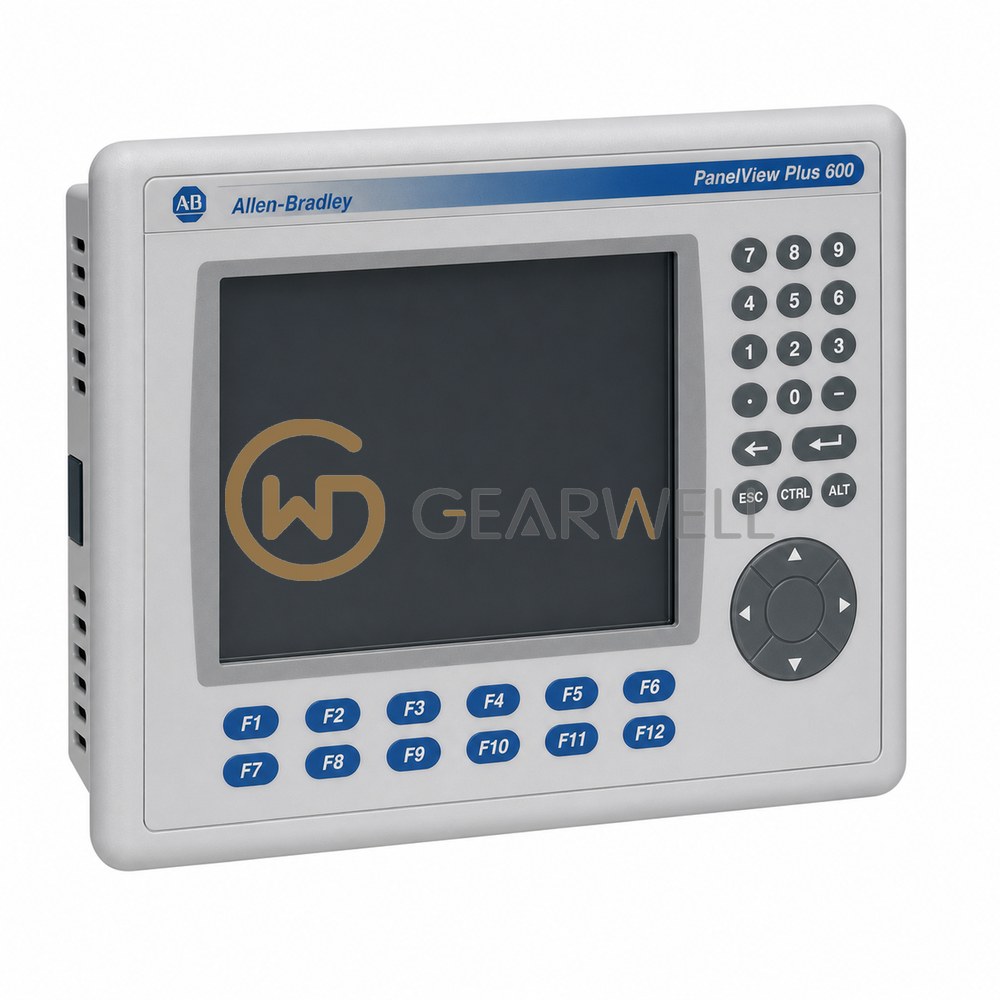

Allen-Bradley 2713P-T6CD1 HMI Operator Panel
- Brand
- Allen-Bradley
- Model
- 2713P-T6CD1
- GEARWELL SKU
- GWP-000002699
- Category
- HMIs & Industrial PCs
Key specifications
- Memory
- RAM: 1 GB RAM, User available: 1 GB nonvolatile storage for projects
- Color depth
- 24-bit color graphics (16.7 mon colors)
- Display resolution
- 640 x 480 VGA
- Height of the front
- 153 mm
- Cutout dimensions, approx
- Height: 123 mm (4.84 in), Width: 156 mm (6.14 in)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2713P-T6CD1 is a PanelView 5310 graphic terminal with a 5.7 in. (4:3) color TFT touch screen (analog resistive), 640 x 480 pixels and 24-bit color, and an LED backlight rated 50,000 h. Power consumption is 13 W max. It talks to ControlLogix 5570/5580 and CompactLogix 5370/5380/5480 controllers over EtherNet/IP (firmware V27 or later), is programmed with Studio 5000 View Designer, and supports up to 100 user-defined screens. It has 1 GB RAM and 1 GB of nonvolatile project storage, one 10/100Base-T Ethernet port, a USB 2.0 host port and an SD card slot, runs on 24V DC (18…30V DC), is rated for 0…50 °C, and the front meets NEMA/UL Type 4X, 12, 13 and IP66 when panel mounted.
Technical reference
| Product name | Allen-Bradley 2713P-T6CD1 HMI Operator Panel |
|---|---|
| Brand | Allen-Bradley |
| Model | 2713P-T6CD1 |
| Category | HMIs & Industrial PCs |
| Memory | RAM: 1 GB RAM, User available: 1 GB nonvolatile storage for projects |
| Color depth | 24-bit color graphics (16.7 mon colors) |
| Display resolution | 640 x 480 VGA |
| Height of the front | 153 mm |
| Cutout dimensions, approx | Height: 123 mm (4.84 in), Width: 156 mm (6.14 in) |
| Backlight power consumption | 2.4 W |
| Degree of protection (IP), front side | IP66 |
| Degree of protection (NEMA), front side | 13 |
