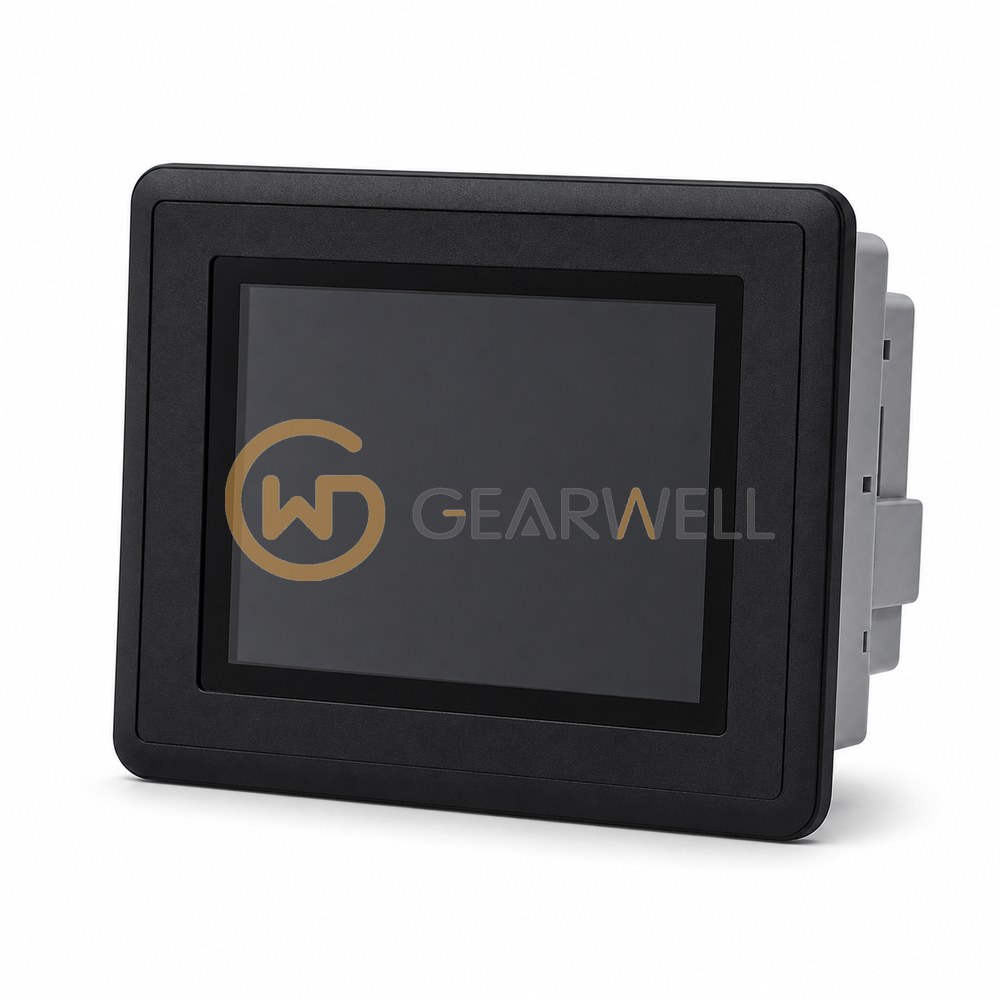

Allen-Bradley 2711P-T6C21D8S PanelView Plus 7 Standard 5.7-inch Touchscreen HMI
- Brand
- Allen-Bradley
- Model
- 2711PT6C21D8S
- GEARWELL SKU
- GWP-000001033
- Category
- HMIs & Industrial PCs
Key specifications
- Memory
- 512 MB RAM; 512 MB nonvolatile storage with approximately 80 MB available for applications
- USB interfaces
- One USB 2.0 Type-A host port and one USB 1.0 Type-B device port
- Display size
- 5.7 in
- Panel cutout (H x W)
- 123 x 156 mm (H x W)
- Product type
- PanelView Plus 7 Standard touchscreen terminal
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2711P-T6C21D8S is a PanelView Plus 7 Standard operator terminal with a 5.7-in. color TFT touch screen at 640 x 480 VGA resolution, one 10/100 Ethernet port with IEEE 1588 support and a 24V DC supply. Rockwell sizes the Standard terminal for one controller, up to 100 screens and up to 500 alarms, and it runs FactoryTalk View Machine Edition applications on Windows CE with a PDF viewer, an SD card slot and USB host and device ports. It connects to ControlLogix 5570 and CompactLogix 5370 controllers over EtherNet/IP and is certified for Class I, Div. 2 and ATEX, IECEx and INMETRO Zones 2 and 22. Series D terminals need firmware version 13.x or later.
Technical reference
| Product name | Allen-Bradley 2711P-T6C21D8S PanelView Plus 7 Standard 5.7-inch Touchscreen HMI |
|---|---|
| Brand | Allen-Bradley |
| Model | 2711PT6C21D8S |
| Category | HMIs & Industrial PCs |
| Memory | 512 MB RAM; 512 MB nonvolatile storage with approximately 80 MB available for applications |
| USB interfaces | One USB 2.0 Type-A host port and one USB 1.0 Type-B device port |
| Display size | 5.7 in |
| Panel cutout (H x W) | 123 x 156 mm (H x W) |
| Product type | PanelView Plus 7 Standard touchscreen terminal |
| Catalog brand-marking option | Allen-Bradley brand marking |
| Input voltage | 24 V DC nominal (18...30 V DC) |
| Ethernet interfaces | One 10/100Base-T Ethernet port |
| Operator input | Analog resistive touchscreen |
| Operating system and series condition | Windows CE 6.0; Series D requires firmware 13.x or later |
| Maximum power consumption | 35 W maximum |
| Display resolution | 640 x 480 VGA |
| Operating temperature | 0...55 °C |
