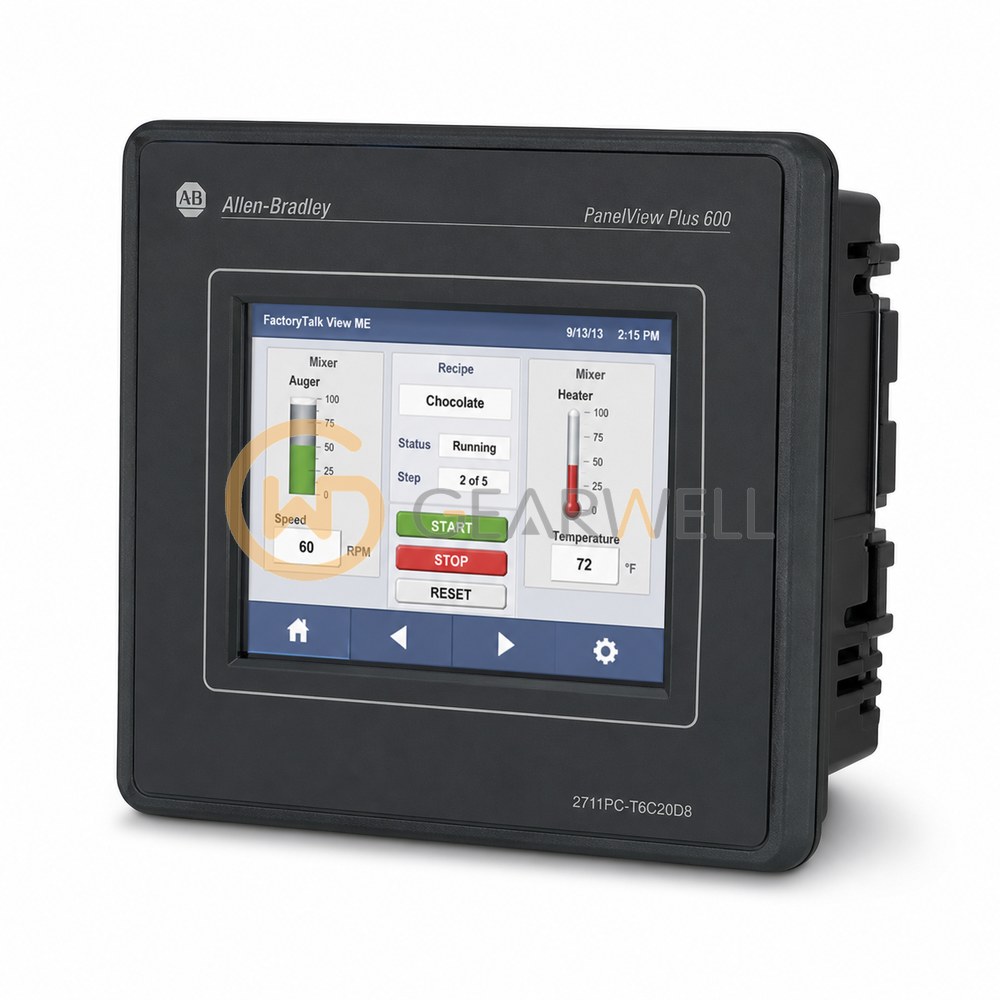

Allen-Bradley 2711PC-T6C20D8 PanelView Plus 6 Compact 600 5.7-inch Touchscreen HMI
- Brand
- Allen-Bradley
- Model
- 2711PC-T6C20D8
- GEARWELL SKU
- GWP-000002499
- Category
- HMIs & Industrial PCs
Key specifications
- Memory
- 256 MB RAM; 512 MB nonvolatile memory (approximately 73 MB free user memory)
- Display resolution
- 320 x 240 pixels
- Display size
- 5.7 in
- Display type
- Color active-matrix TFT
- Input voltage
- 24 V DC nominal (18...30 V DC)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2711PC-T6C20D8 is the PanelView Plus 6 Compact 600 Color terminal, with analog resistive touch screen and a 5.7 in. color active-matrix TFT display, 320 x 240, 18-bit color. It has 256 MB RAM and 512 MB nonvolatile memory, uses 15 W max and weighs about 594 g. It runs Windows CE 6.0 with FactoryTalk View Machine Edition software, version 6.10 or later, has Ethernet (10/100 Mbps), RS-232 and USB host ports and an SD card slot, and takes 18…30V DC (24V DC nom) from a Class 2, SELV or PELV supply.
Technical reference
| Product name | Allen-Bradley 2711PC-T6C20D8 PanelView Plus 6 Compact 600 5.7-inch Touchscreen HMI |
|---|---|
| Brand | Allen-Bradley |
| Model | 2711PC-T6C20D8 |
| Category | HMIs & Industrial PCs |
| Memory | 256 MB RAM; 512 MB nonvolatile memory (approximately 73 MB free user memory) |
| Display resolution | 320 x 240 pixels |
| Display size | 5.7 in |
| Display type | Color active-matrix TFT |
| Input voltage | 24 V DC nominal (18...30 V DC) |
| Depth for this power configuration | 68 mm |
| Operator input | Analog resistive touchscreen |
| Catalog operating system | Windows CE 6.0 without extended features or Microsoft Office file viewers |
| Panel cutout (H x W) | 123 x 156 mm (H x W) |
| Power consumption | 15 W maximum; 9 W typical |
| Communication interfaces | 10/100 Mbps Ethernet, RS-232, one USB host and one USB device port |
| Installed front protection | IP66 at the front when properly installed |
| Installed enclosure rating | NEMA/UL Type 4X (indoor use only), when properly installed |
