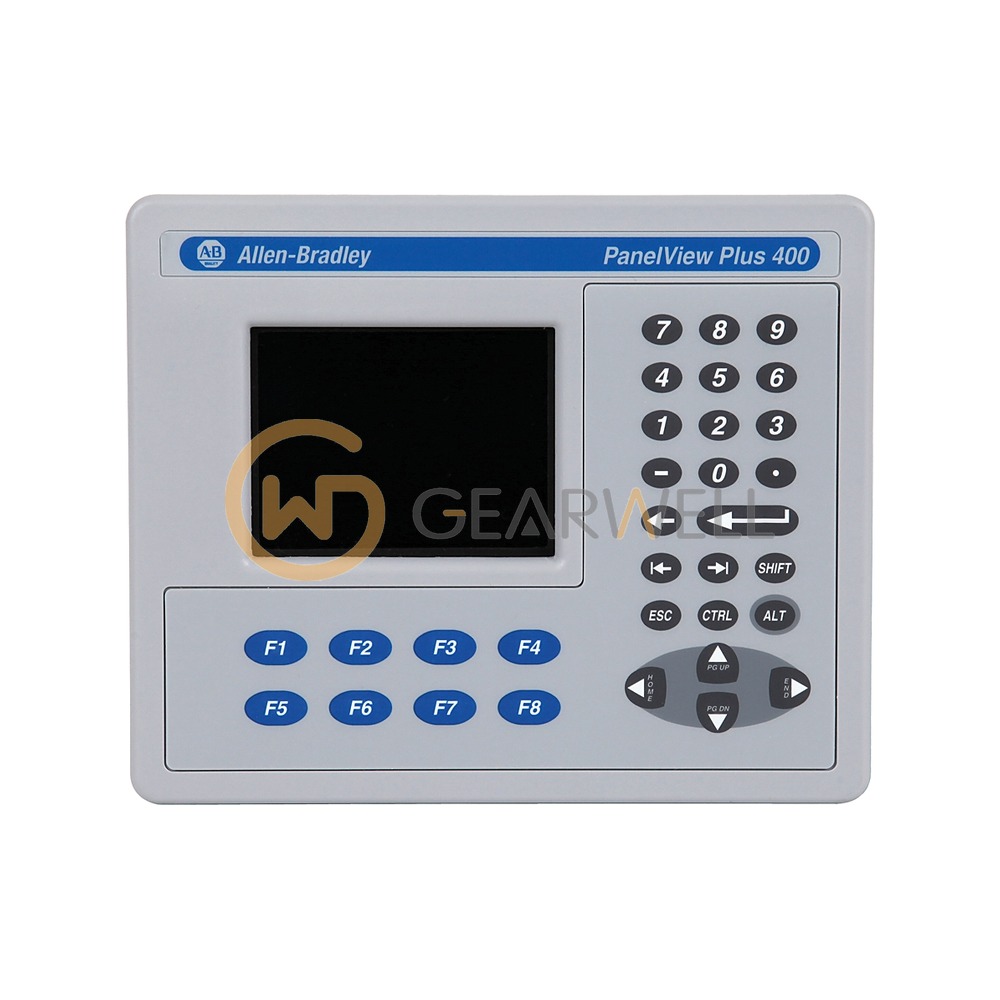

Allen-Bradley 2711PC-K4M20D8 PanelView Plus 6 Compact 400 Keypad HMI
- Brand
- Allen-Bradley
- Model
- 2711PC-K4M20D8
- GEARWELL SKU
- GWP-000011757
- Category
- HMIs & Industrial PCs
Key specifications
- Memory
- 256 MB RAM, 512 MB nonvolatile
- Display
- 3.5 in grayscale TFT LCD, 320 x 240
- Input voltage
- 24V DC nominal
- Weight, approx
- 473 g
- Front size (WxH)
- 185 x 152 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2711PC-K4M20D8 is the PanelView Plus 6 Compact 400 Grayscale terminal, with keypad operation (8 function keys F1…F8) and a 3.5 in. grayscale TFT LCD, 320 x 240, 16-levels gray. It has 256 MB RAM and 512 MB nonvolatile memory, uses 15 W max and weighs about 473 g. It runs Windows CE 6.0 with FactoryTalk View Machine Edition software, version 6.10 or later, has Ethernet (10/100 Mbps), RS-232 and USB host ports and an SD card slot, and takes 18…30V DC (24V DC nom) from a Class 2, SELV or PELV supply.
Technical reference
| Product name | Allen-Bradley 2711PC-K4M20D8 PanelView Plus 6 Compact 400 Keypad HMI |
|---|---|
| Brand | Allen-Bradley |
| Model | 2711PC-K4M20D8 |
| Category | HMIs & Industrial PCs |
| Memory | 256 MB RAM, 512 MB nonvolatile |
| Display | 3.5 in grayscale TFT LCD, 320 x 240 |
| Input voltage | 24V DC nominal |
| Weight, approx | 473 g |
| Front size (WxH) | 185 x 152 mm |
| Operator input | Keypad, 8 function keys (F1...F8) |
| Enclosure rating | NEMA/UL Type 12, 13, 4X (indoor), IEC IP66 |
| Power consumption | 15 W max (0.6 A at 24V DC) |
| Communication ports | Ethernet (10/100 Mbps), RS-232, 1 USB host, 1 USB device |
