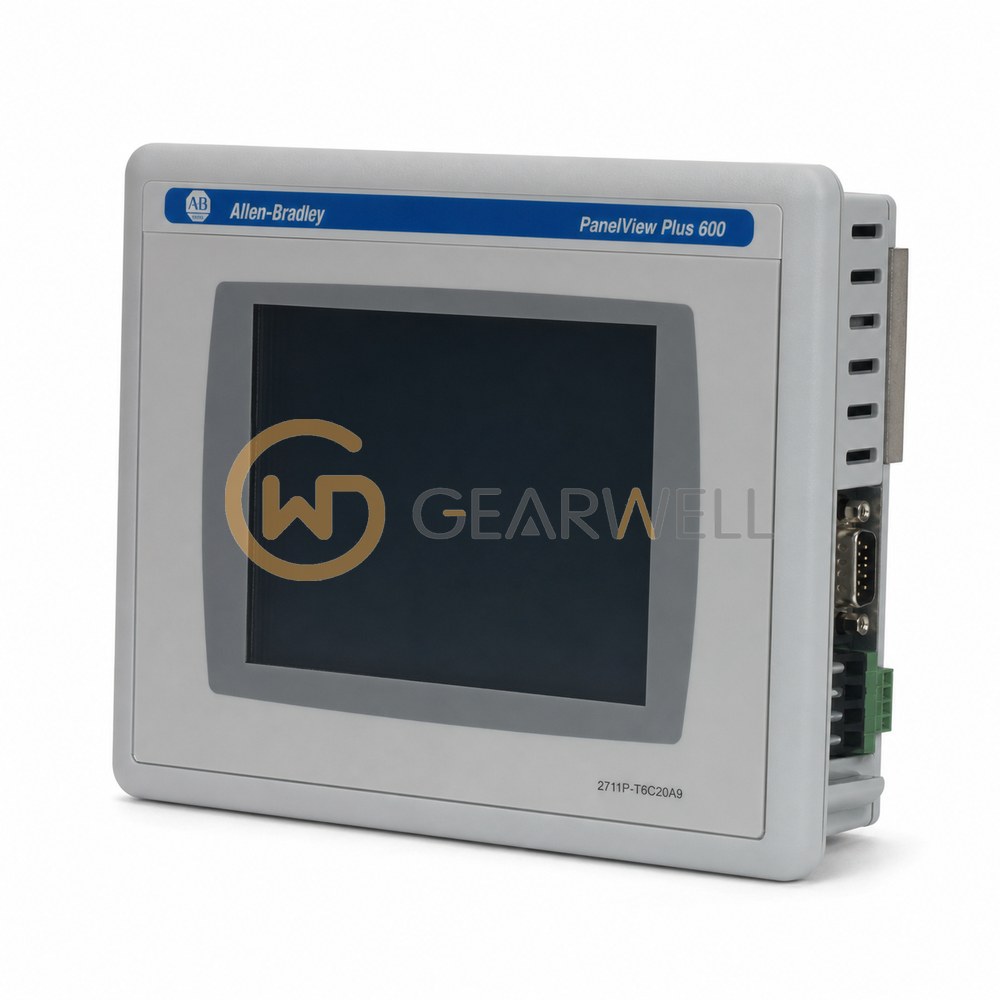

Allen-Bradley 2711P-T6C20A9 PanelView Plus 6 600 5.7-inch Touchscreen HMI

Key specifications

Memory: 256 MB RAM; 512 MB nonvolatile memory (approximately 73 MB free user memory)
Display resolution: 320 x 240 pixels
Display size: 5.7 in
Display type: Color active-matrix TFT
Input voltage: 100...240 V AC, 50...60 Hz

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Allen-Bradley 2711P-T6C20A9 PanelView Plus 6 600 5.7-inch Touchscreen HMI
Brand	Allen-Bradley
Model	2711P-T6C20A9
Category	HMIs & Industrial PCs
Memory	256 MB RAM; 512 MB nonvolatile memory (approximately 73 MB free user memory)
Display resolution	320 x 240 pixels
Display size	5.7 in
Display type	Color active-matrix TFT
Input voltage	100...240 V AC, 50...60 Hz
Depth for this power configuration	98 mm including AC power module
Operator input	Analog resistive touchscreen
Catalog operating system	Windows CE 6.0 with extended features and file viewers
Panel cutout (H x W)	123 x 156 mm (H x W)
Dimensions (H x W x D)	152 x 185 x 98 mm (H x W x D), including AC power module
Communication interfaces	10/100 Mbps Ethernet, RS-232, one USB host and one USB device port
Installed front protection	IP66 at the front when properly installed
Installed enclosure rating	NEMA/UL Type 4X (indoor use only), when properly installed
