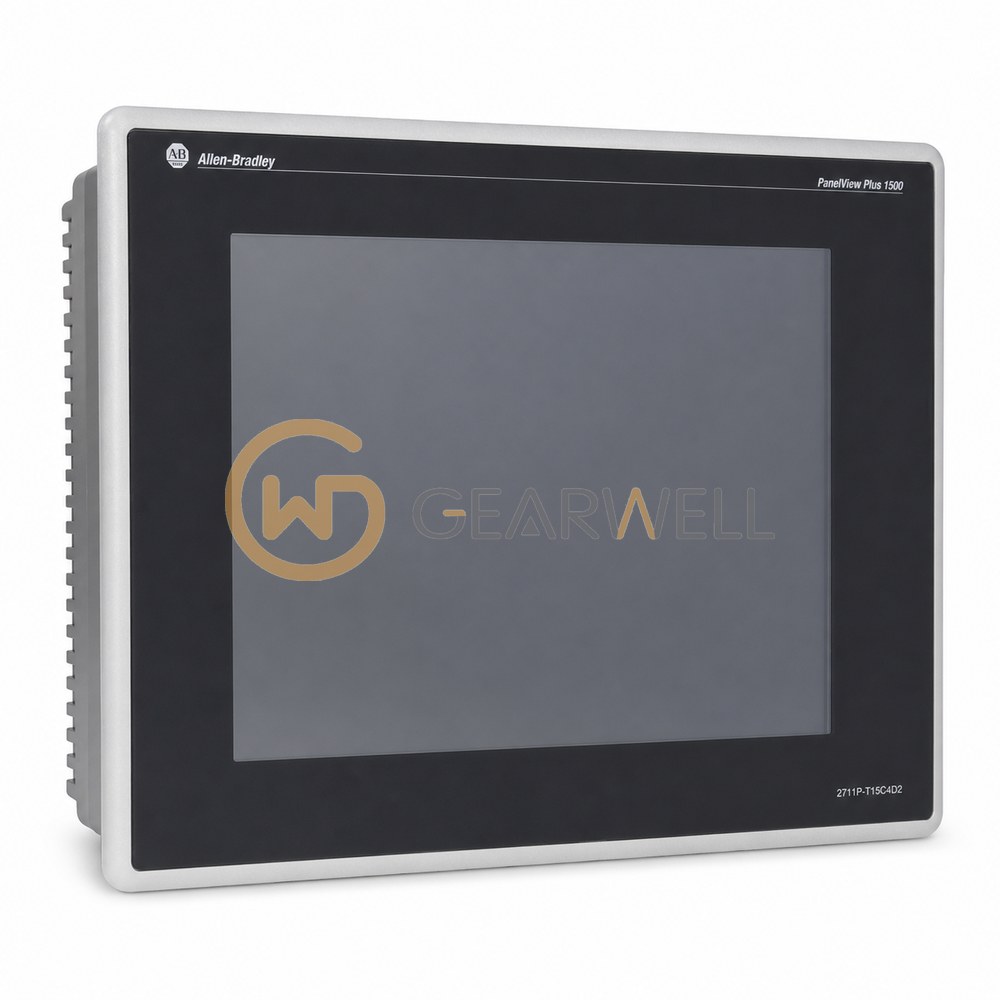

Allen-Bradley 2711P-T15C4D2 PanelView Plus 1500 15-inch Touchscreen HMI

Key specifications

Typical display luminance: 300 cd/m²
Base-unit dimensions (H x W x D): 330 x 416 x 65 mm (H x W x D), without communication module
Display resolution: 1024 x 768 pixels
Display area (W x H): 304 x 228 mm
Display size: 15 in

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Allen-Bradley 2711P-T15C4D2 PanelView Plus 1500 15-inch Touchscreen HMI
Brand	Allen-Bradley
Model	2711P-T15C4D2
Category	HMIs & Industrial PCs
Typical display luminance	300 cd/m²
Base-unit dimensions (H x W x D)	330 x 416 x 65 mm (H x W x D), without communication module
Display resolution	1024 x 768 pixels
Display area (W x H)	304 x 228 mm
Display size	15 in
Display type	Color active-matrix TFT LCD
Logic module	Standard logic module: 128 MB flash and 128 MB RAM
Product type	PanelView Plus 1500 terminal
Communication	Ethernet and RS-232
Input voltage	24 V DC nominal (18...32 V DC)
Built-in ports	10/100 Mbps Ethernet, RS-232 and two USB-A host ports
Operator input	Touchscreen
Operating temperature	0...55 °C
