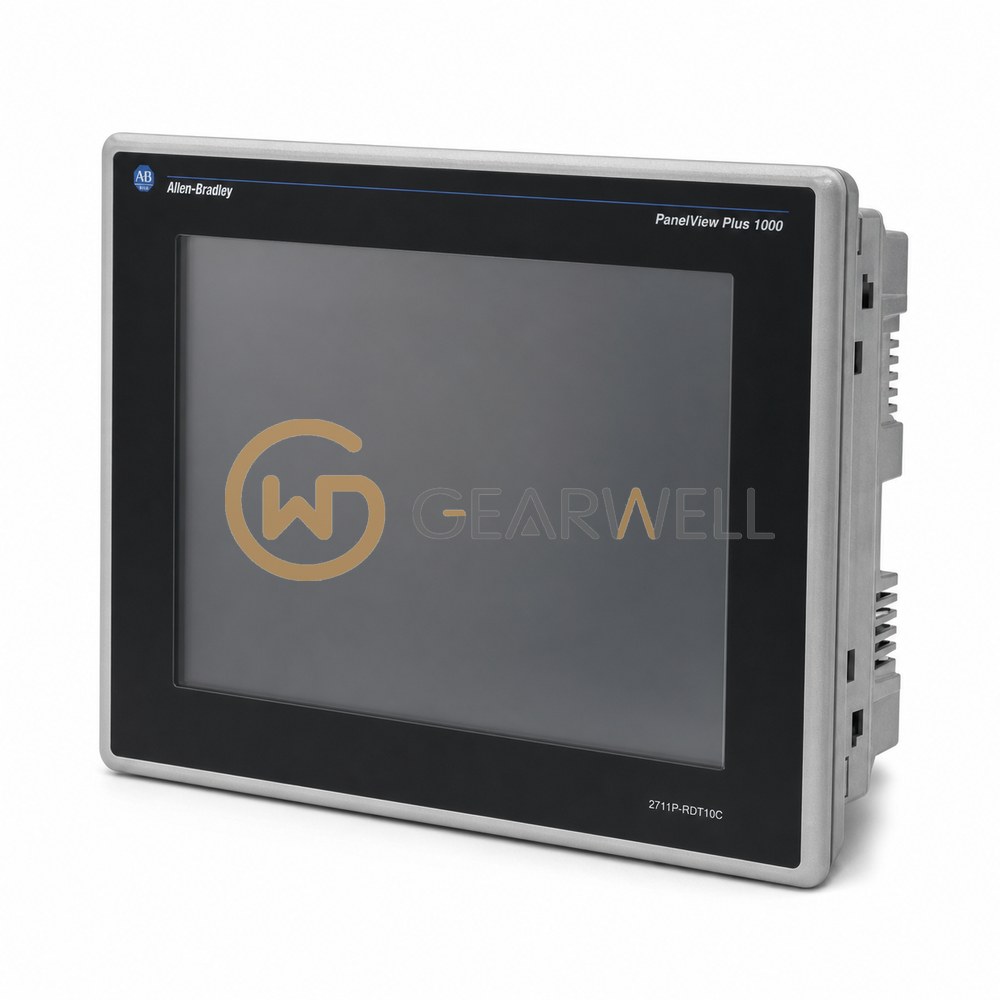

Allen-Bradley 2711P-RDT10C PanelView Plus 1000 10.4-inch Touchscreen Display Module
- Brand
- Allen-Bradley
- Model
- 2711P-RDT10C
- GEARWELL SKU
- GWP-000000694
- Category
- HMIs & Industrial PCs
Key specifications
- Assembled depth (display-to-logic)
- 55 mm with logic module, without communication module
- Front width
- 329 mm
- Front height
- 248 mm
- Backlight
- Series C: LED; Series B or earlier: CCFL
- Display luminance
- 300 cd/m² (nits)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 2711P-RDT10C PanelView Plus 1000 10.4-inch Touchscreen Display Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 2711P-RDT10C |
| Category | HMIs & Industrial PCs |
| Assembled depth (display-to-logic) | 55 mm with logic module, without communication module |
| Front width | 329 mm |
| Front height | 248 mm |
| Backlight | Series C: LED; Series B or earlier: CCFL |
| Display luminance | 300 cd/m² (nits) |
| Display size | 10.4 in |
| Display type | Color active-matrix TFT LCD |
| Product type | PanelView Plus 1000 display module |
| Operator input | Analog resistive touchscreen |
| Panel cutout (H x W) | 224 x 305 mm (H x W) |
| Display resolution | 640 x 480 pixels |
| Installed front protection | IP65 at the front when properly installed in a suitable enclosure |
| Touchscreen actuation rating | 1 million presses |
