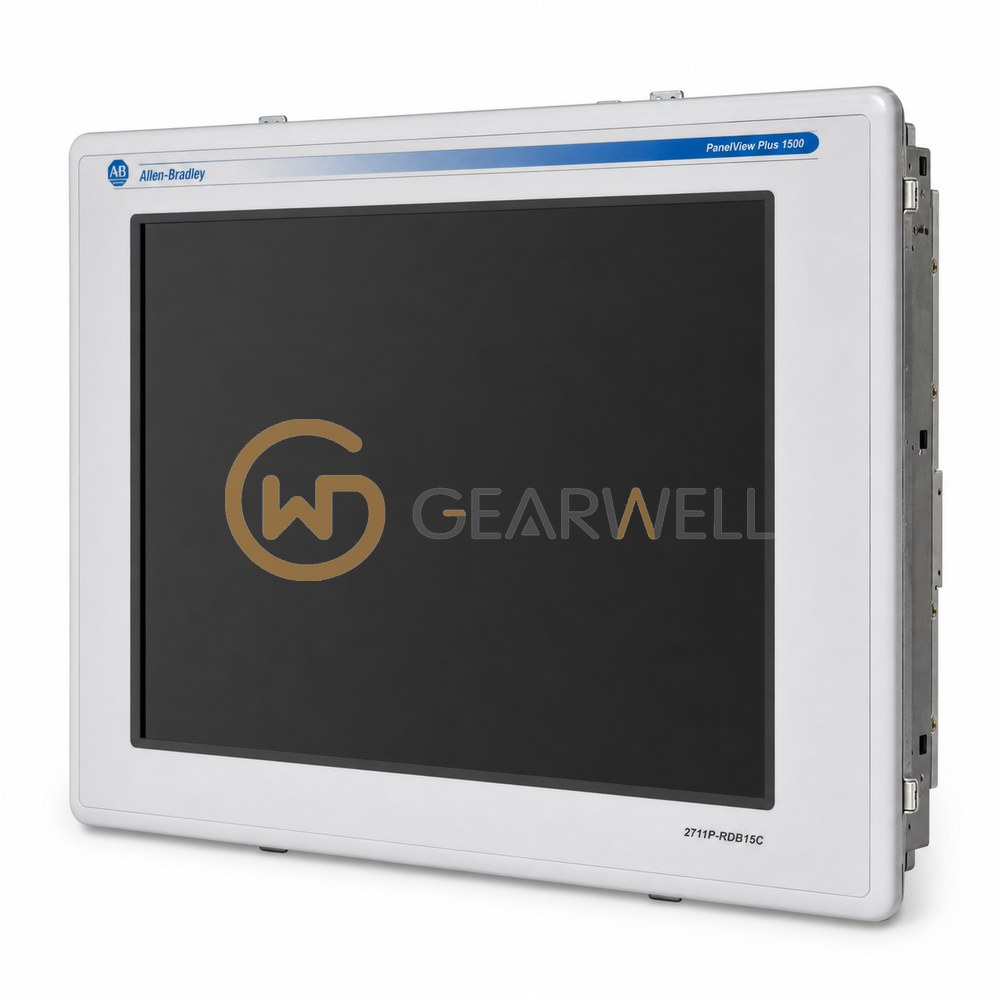

Allen-Bradley 2711P-RDB15C PanelView Plus 1500 15-inch Keypad/Touch Display Module

Key specifications

Assembled depth (display-to-logic): 65 mm with logic module, without communication module
Front width: 469 mm
Front height: 330 mm
Backlight: Series C: LED; Series B or earlier: CCFL
Display luminance: 300 cd/m² (nits)

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Allen-Bradley 2711P-RDB15C PanelView Plus 1500 15-inch Keypad/Touch Display Module
Brand	Allen-Bradley
Model	2711P-RDB15C
Category	HMIs & Industrial PCs
Assembled depth (display-to-logic)	65 mm with logic module, without communication module
Front width	469 mm
Front height	330 mm
Backlight	Series C: LED; Series B or earlier: CCFL
Display luminance	300 cd/m² (nits)
Display size	15 in
Display type	Color active-matrix TFT LCD
Product type	PanelView Plus 1500 display module
Operator input	Keypad and analog resistive touchscreen
Panel cutout (H x W)	305 x 419 mm (H x W)
Display resolution	1024 x 768 pixels
Installed front protection	IP65 at the front when properly installed in a suitable enclosure
Touchscreen actuation rating	1 million presses
