Allen-Bradley 22D-D6P0N104 PowerFlex 40P 2.2 kW 480 V AC VFD

Product overview

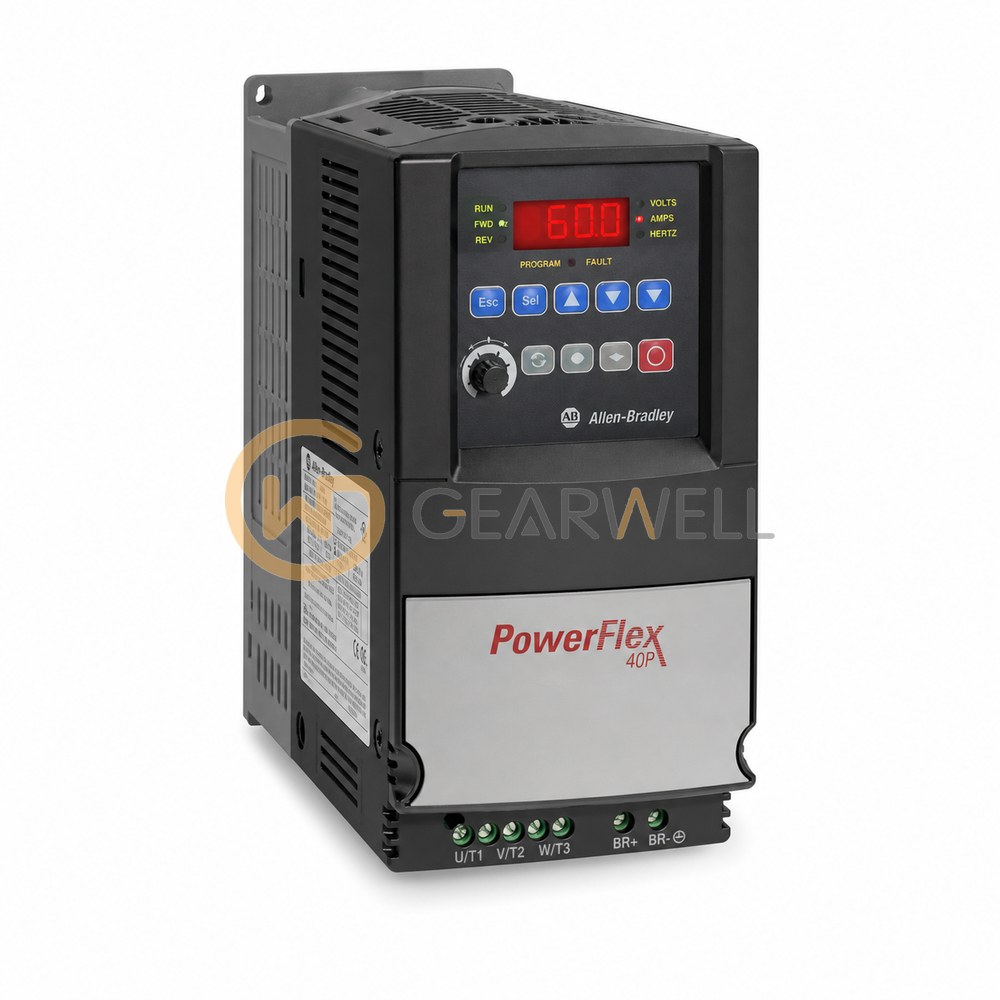

The Allen-Bradley 22D-D6P0N104 is a PowerFlex 40P AC drive from Rockwell's PowerFlex family. It is rated 2.2 kW (3.0 HP), for 380…480 V AC 3-phase input and 0…460 V 3-phase output, in frame B. Output current is 6.0 A. Input current is 7.5 A (5.9 kVA) over a 342…528 V AC supply range. It is an IP20, NEMA Type Open panel-mount drive rated for –10…+50 °C ambient. Based on the PowerFlex 40 platform, it adds closed-loop control with an incremental encoder or pulse-train input (up to 250 kHz), sensorless vector and volts/hertz control, output frequency 0…500 Hz, 150% overload for 1 minute or 200% for 3 seconds, an adjustable PWM carrier of 2…16 kHz, integral PID and StepLogic position or velocity programming. I/O comprises 2 dedicated (start, stop) and 5 programmable digital inputs, two isolated analog inputs (–10…+10 V and 4…20 mA), one analog output (0…10 V or 4…20 mA), two opto outputs and one form C relay. Programming is through an external HIM or the DSI port with PC software, and the integral display has a fault reset button; the DriveGuard Safe-Torque-Off option provides functional safety up to SIL 2/PL d.
