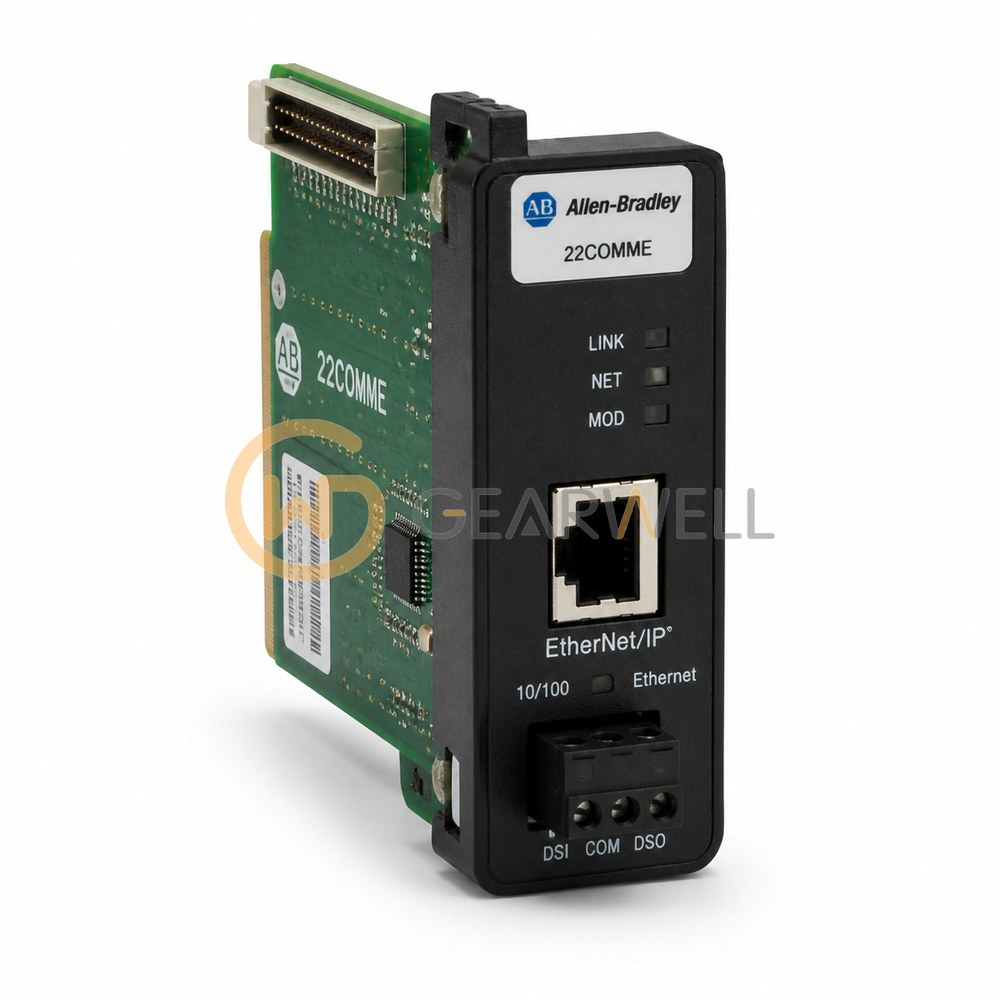

Allen-Bradley 22-COMM-E PowerFlex EtherNet/IP Communication Adapter
- Brand
- Allen-Bradley
- Model
- 22COMME
- GEARWELL SKU
- GWP-000002307
- Category
- Industrial Automation Parts
Key specifications
- Weight
- 85 g
- Dimensions
- 19 x 86 x 78.5 mm (H x L x W)
- Device role
- Communication adapter
- Application
- EtherNet/IP communication for supported DSI drives
- Product family
- PowerFlex Component Class
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 22-COMM-E is an EtherNet/IP communication adapter from Rockwell. It is the embedded EtherNet/IP communication option for PowerFlex 40 drives. It needs a communication adapter cover, ordered separately (22B-CCB for frame B or 22B-CCC for frame C), which adds 25 mm (0.98 in.) to the drive depth. It also fits the 22-XCOMM-DC-BASE external DSI communications kit, which connects up to 5 drives.
Technical reference
| Product name | Allen-Bradley 22-COMM-E PowerFlex EtherNet/IP Communication Adapter |
|---|---|
| Brand | Allen-Bradley |
| Model | 22COMME |
| Category | Industrial Automation Parts |
| Weight | 85 g |
| Dimensions | 19 x 86 x 78.5 mm (H x L x W) |
| Device role | Communication adapter |
| Application | EtherNet/IP communication for supported DSI drives |
| Product family | PowerFlex Component Class |
| Power supply | 350 mA at 5 V DC, supplied through the drive |
| Product type | EtherNet/IP communication adapter |
| Drive interface | DSI, 19.2 kbps |
| Catalog number | 22-COMM-E |
| Ethernet data rate | 10/100 Mbps; full or half duplex |
| Ethernet connector | RJ45 |
