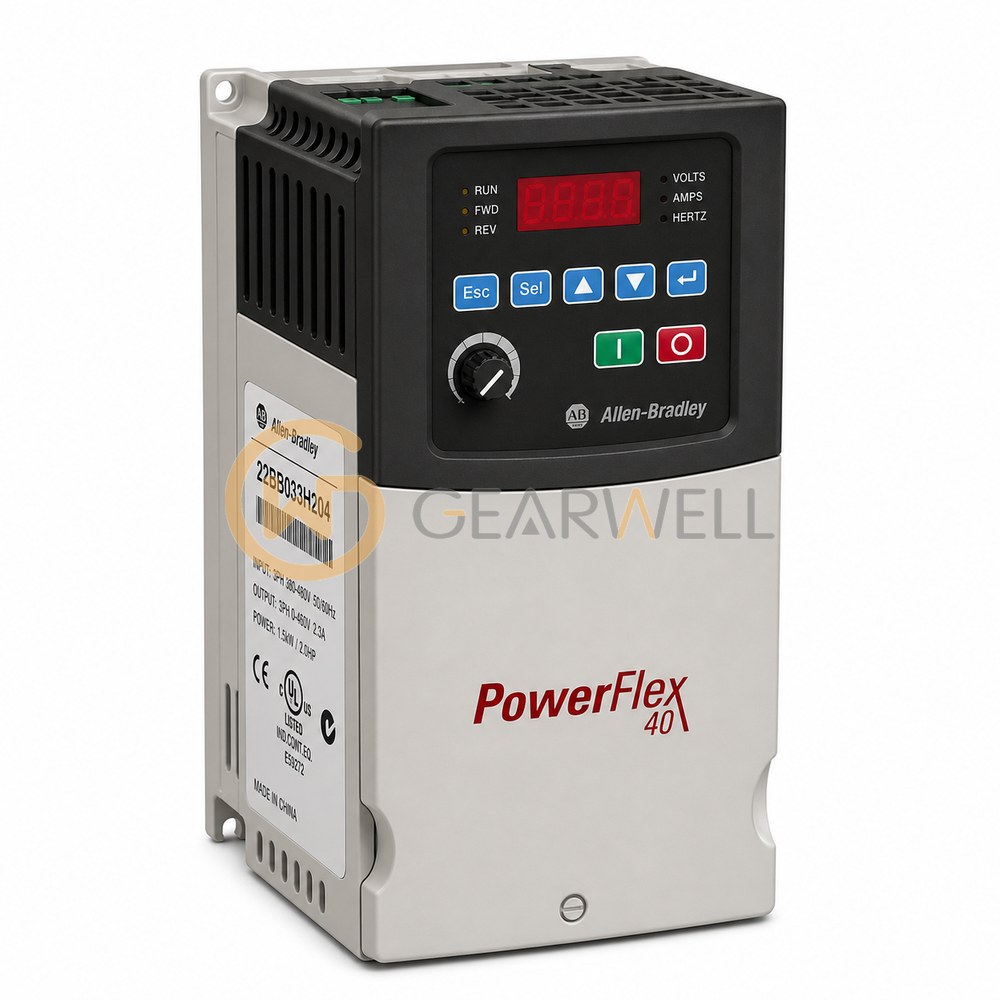

Allen-Bradley 22B-B033H204 PowerFlex 40 7.5 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 22BB033H204
- GEARWELL SKU
- GWP-000003485
- Category
- Variable Frequency Drives
Key specifications
- Enclosure and mounting
- Replacement plate drive, IP20 open
- Internal brake IGBT
- Included
- EMC filtering
- No integral EMC filter
- Frame size
- C
- Displacement power factor
- 0.98 across the speed range
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 22B-B033H204 PowerFlex 40 7.5 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 22BB033H204 |
| Category | Variable Frequency Drives |
| Enclosure and mounting | Replacement plate drive, IP20 open |
| Internal brake IGBT | Included |
| EMC filtering | No integral EMC filter |
| Frame size | C |
| Displacement power factor | 0.98 across the speed range |
| Rated motor power | 7.5 kW (10 HP) |
| Communication | RS485 |
| Operator interface | Integral digital keypad with LED display |
| Nominal AC input frequency | 50/60 Hz |
| AC input | 200-240 V AC, 3-phase, 50/60 Hz |
| Rated output current | 33 A |
