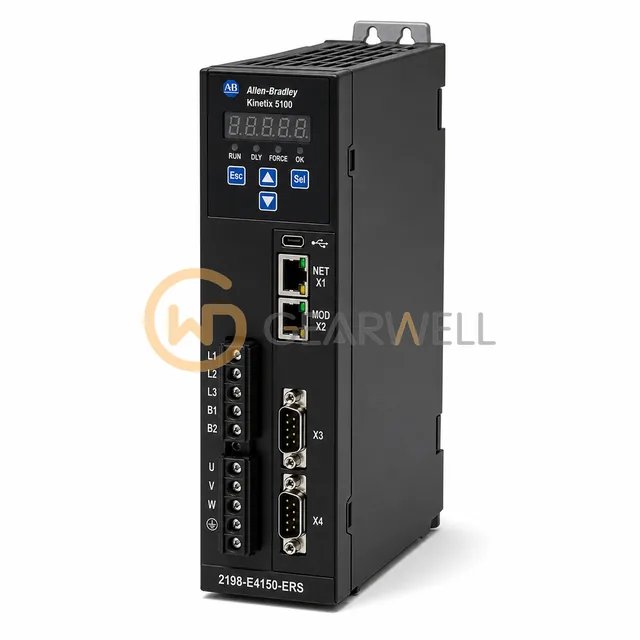

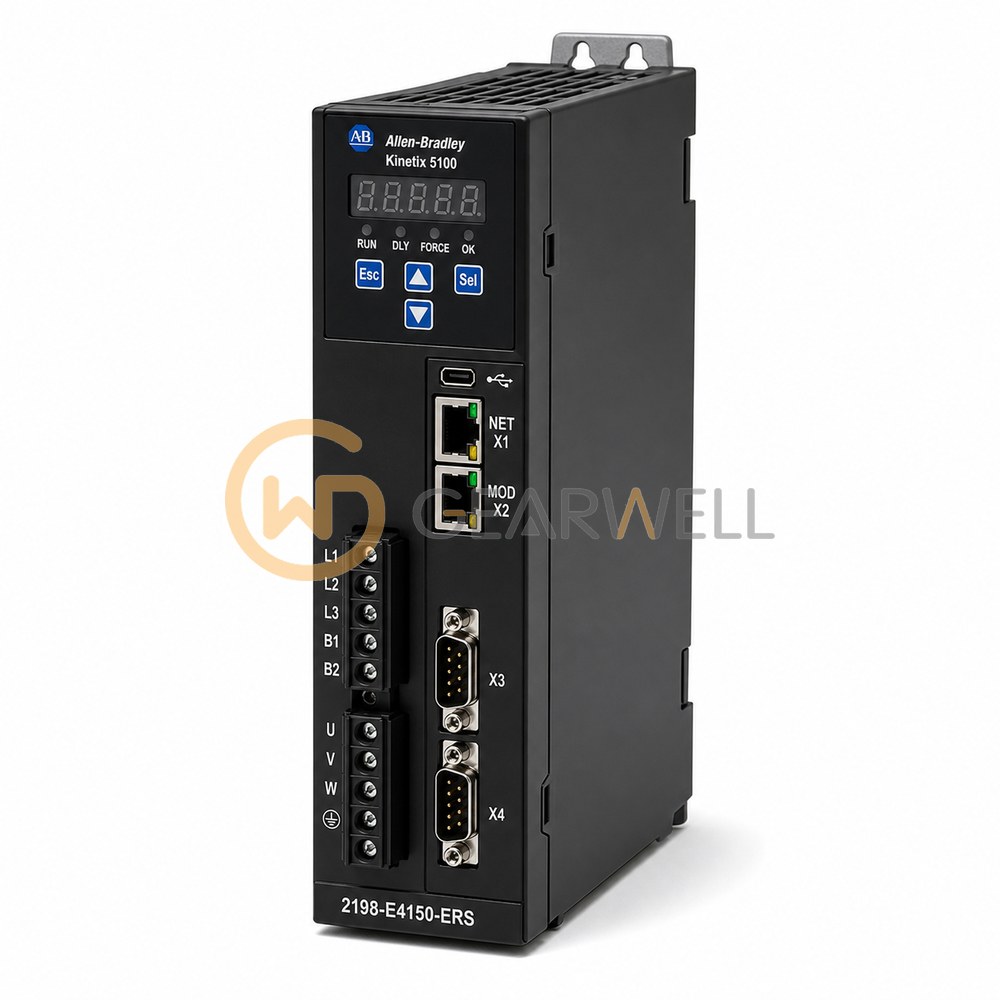

Allen-Bradley 2198-E4150-ERS Kinetix 5100 Indexing Servo Drive
- Brand
- Allen-Bradley
- Model
- 2198E4150ERS
- GEARWELL SKU
- GWP-000001343
- Category
- Servo Systems
Key specifications
- Product type
- Single-axis EtherNet/IP indexing servo drive
- Control power
- 21.6-26.4 V DC (24 V DC nominal)
- Product series
- Kinetix 5100
- AC input voltage
- 342-528 V AC three-phase
- Safety interface
- Safe Torque Off (STO)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2198-E4150-ERS is a Kinetix 5100 EtherNet/IP indexing servo drive from Rockwell's Kinetix servo drive family. It accepts 342…528V rms three-phase (380/480V nom) input and delivers 15.0 kW continuous output power, with 41.26 A rms continuous and 70.14 A rms peak output current (peak allowed for up to 1.8 seconds). Kinetix 5100 drives support applications controlled by stand-alone, Micro800, MicroLogix and Logix 5000 controllers, and come with standard inputs and outputs, different modes of control, Safe Torque Off and dual-port EtherNet/IP. Functional safety is rated up to PL d, Category 3 (ISO 13849) and SIL CL2 (IEC 61508, IEC 61800-5-2 and IEC 62061). The operating ambient temperature is 0…50 °C.
Technical reference
| Product name | Allen-Bradley 2198-E4150-ERS Kinetix 5100 Indexing Servo Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 2198E4150ERS |
| Category | Servo Systems |
| Product type | Single-axis EtherNet/IP indexing servo drive |
| Control power | 21.6-26.4 V DC (24 V DC nominal) |
| Product series | Kinetix 5100 |
| AC input voltage | 342-528 V AC three-phase |
| Safety interface | Safe Torque Off (STO) |
| Network interface | EtherNet/IP |
| AC input frequency | 47-63 Hz |
| Continuous drive output power | 15 kW at 480 V AC three-phase |
| Official catalog number | 2198-E4150-ERS |
| Peak output current (RMS) | 70.14 A RMS; up to 1.8 s |
| Continuous output current (RMS) | 41.26 A RMS |
