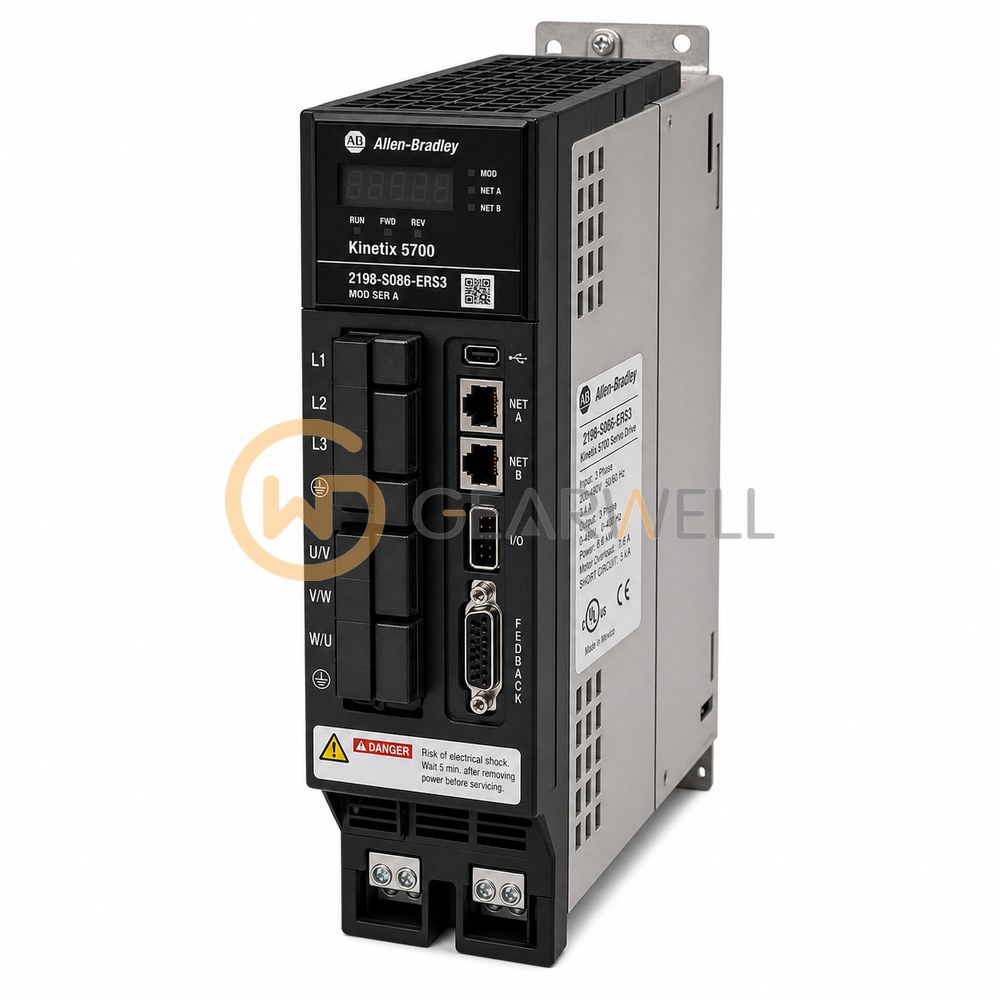

Allen-Bradley 2198-S086-ERS3 Kinetix 5700 Single-Axis Servo Inverter
- Brand
- Allen-Bradley
- Model
- 2198-S086-ERS3
- GEARWELL SKU
- GWP-000001007
- Category
- Servo Systems
Key specifications
- Body depth (excluding front connector projection)
- 252 mm; front connector projection excluded
- Module width
- 85 mm
- Overall module height (dimension C)
- 433 mm
- Approximate module weight
- 5.21 kg
- Maximum velocity-loop bandwidth
- 400 Hz; depends on tuning and mechanical components
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2198-S086-ERS3 is a Kinetix 5700 single-axis inverter from Rockwell's Kinetix servo drive family. It delivers 43.0 A rms continuous and 86.0 A rms peak output current (peak current duration 1.0 second), with 29.7 kW continuous output power at 480V nominal, and draws 45.7 A DC from the 276…747V DC bus. Kinetix 5700 drives are designed for machines with high axis counts and high power requirements; drive modules connect and operate by using ControlLogix, GuardLogix, CompactLogix or Compact GuardLogix controllers with the Studio 5000 Logix Designer application. The family is TÜV certified for functional safety up to SIL CL3 (IEC 61800-5-2, IEC 61508 and IEC 62061) and PL e, Category 3 (ISO 13849-1). It has IP20 protection and a 0…50 °C operating ambient temperature.
Technical reference
| Product name | Allen-Bradley 2198-S086-ERS3 Kinetix 5700 Single-Axis Servo Inverter |
|---|---|
| Brand | Allen-Bradley |
| Model | 2198-S086-ERS3 |
| Category | Servo Systems |
| Body depth (excluding front connector projection) | 252 mm; front connector projection excluded |
| Module width | 85 mm |
| Overall module height (dimension C) | 433 mm |
| Approximate module weight | 5.21 kg |
| Maximum velocity-loop bandwidth | 400 Hz; depends on tuning and mechanical components |
| Axis count | 1 |
| Control power | 21.6-26.4 V DC (24 V DC nominal) |
| DC-bus input voltage | 276-747 V DC |
| Network interface | EtherNet/IP |
| Peak output current (RMS) | 86 A RMS; up to 1.0 s |
| Continuous output current (0-peak) | 60.8 A (0-peak) |
| Continuous output power | 14.9 kW at 240 V AC nominal three-phase supply; 29.7 kW at 480 V AC nominal three-phase supply |
| Continuous output current (RMS) | 43 A RMS |
