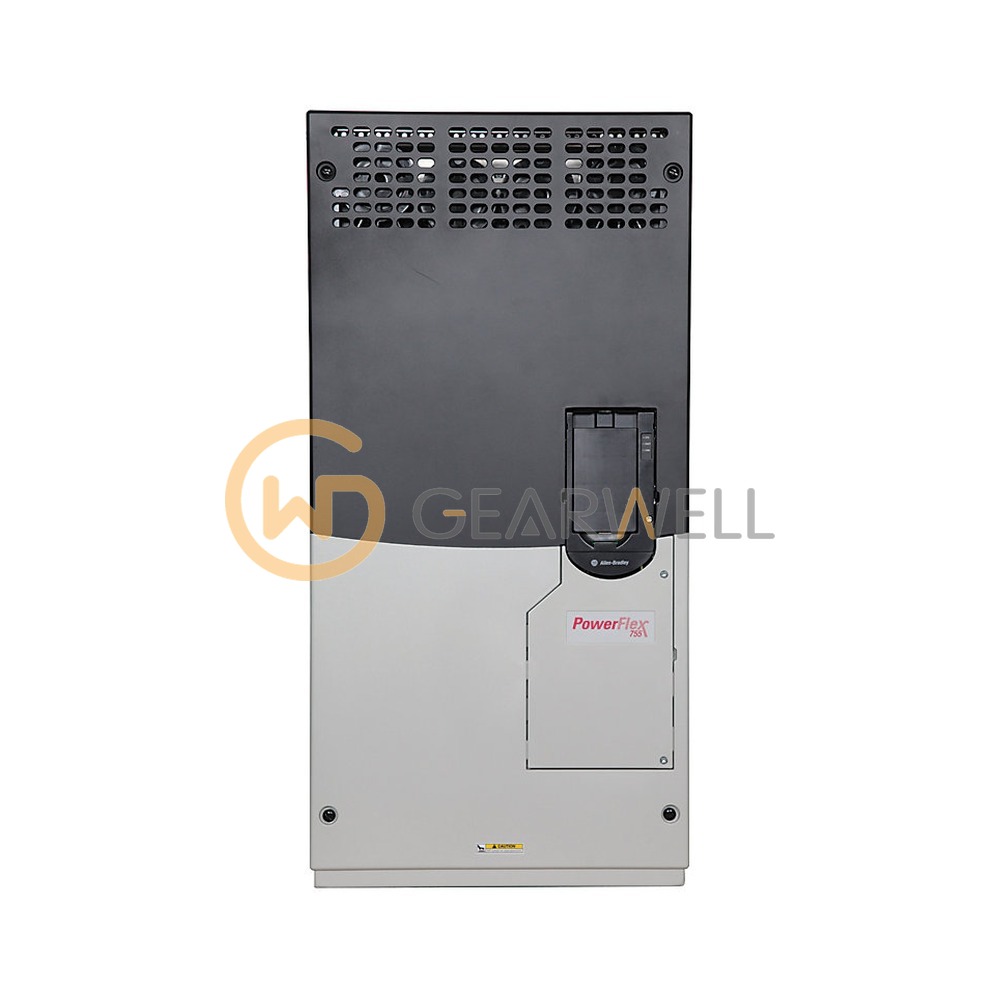

Allen-Bradley 20G1ANC456JA0NNNNN PowerFlex 755 AC Drive
- Brand
- Allen-Bradley
- Model
- 20G1ANC456JA0NNNNN
- GEARWELL SKU
- GWP-000002118
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- 7
- Input voltage
- 400 V AC, three-phase
- Output current
- 456 A
- Product family
- PowerFlex 755
- Normal-duty power
- 250 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G1ANC456JA0NNNNN is a PowerFlex 755 AC drive for the 400 V AC / 540 V DC class in frame 7, built as an IP00, NEMA/UL Type Open wall-mount chassis with AC input with precharge and no DC terminals. Rockwell rates it at 456 A and 250 kW for normal duty and 367 A and 200 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke, and frame 6…7 Open Type drives can be converted to IP20, NEMA/UL Type 1 with the 20-750-NEMA1-Fx kit. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G1ANC456JA0NNNNN PowerFlex 755 AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G1ANC456JA0NNNNN |
| Category | Variable Frequency Drives |
| Frame size | 7 |
| Input voltage | 400 V AC, three-phase |
| Output current | 456 A |
| Product family | PowerFlex 755 |
| Normal-duty power | 250 kW |
