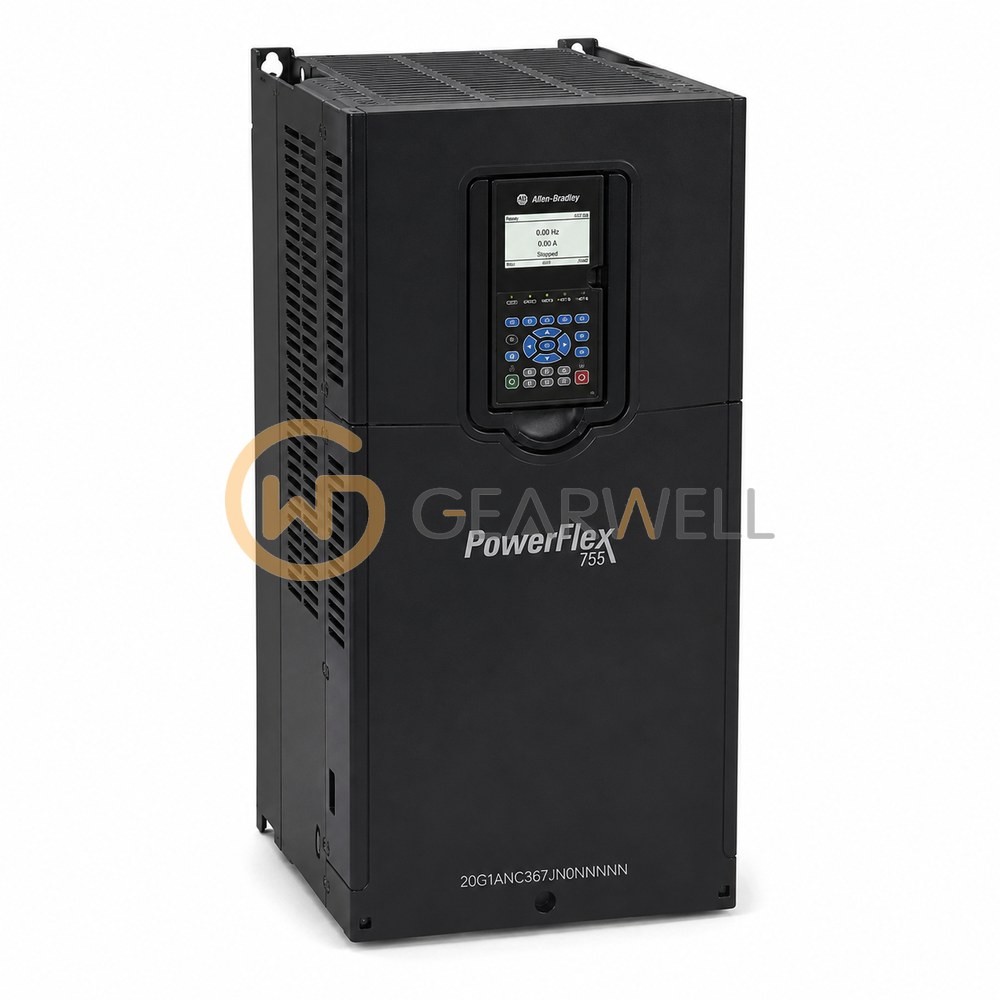

Allen-Bradley 20G1ANC367JN0NNNNN PowerFlex 755 400 V AC 200 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20G1ANC367JN0NNNNN
- GEARWELL SKU
- GWP-000001790
- Category
- Variable Frequency Drives
Key specifications
- Input configuration
- AC input with precharge, without DC terminals
- Drive frame
- 7
- Nominal input voltage
- 400 V AC, three-phase
- Rated motor output
- 367 A continuous, 200 kW normal duty; 160 kW heavy duty
- Operator interface
- No factory-fitted HIM
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G1ANC367JN0NNNNN is a PowerFlex 755 AC drive for the 400 V AC / 540 V DC class in frame 7, built as an IP00, NEMA/UL Type Open wall-mount chassis with AC input with precharge and no DC terminals. Rockwell rates it at 367 A and 200 kW for normal duty and 302 A and 160 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and no internal dynamic braking transistor. Wall-mount frames 1…7 include a DC link choke, and frame 6…7 Open Type drives can be converted to IP20, NEMA/UL Type 1 with the 20-750-NEMA1-Fx kit. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G1ANC367JN0NNNNN PowerFlex 755 400 V AC 200 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G1ANC367JN0NNNNN |
| Category | Variable Frequency Drives |
| Input configuration | AC input with precharge, without DC terminals |
| Drive frame | 7 |
| Nominal input voltage | 400 V AC, three-phase |
| Rated motor output | 367 A continuous, 200 kW normal duty; 160 kW heavy duty |
| Operator interface | No factory-fitted HIM |
| Braking hardware | No internal braking transistor; braking resistor not included |
| Built-in communication | Embedded EtherNet/IP port |
| Configured enclosure | IP00, NEMA/UL Open Type |
| Protection and cooling | Standard corrosive-gas protection; forced-air cooling |
