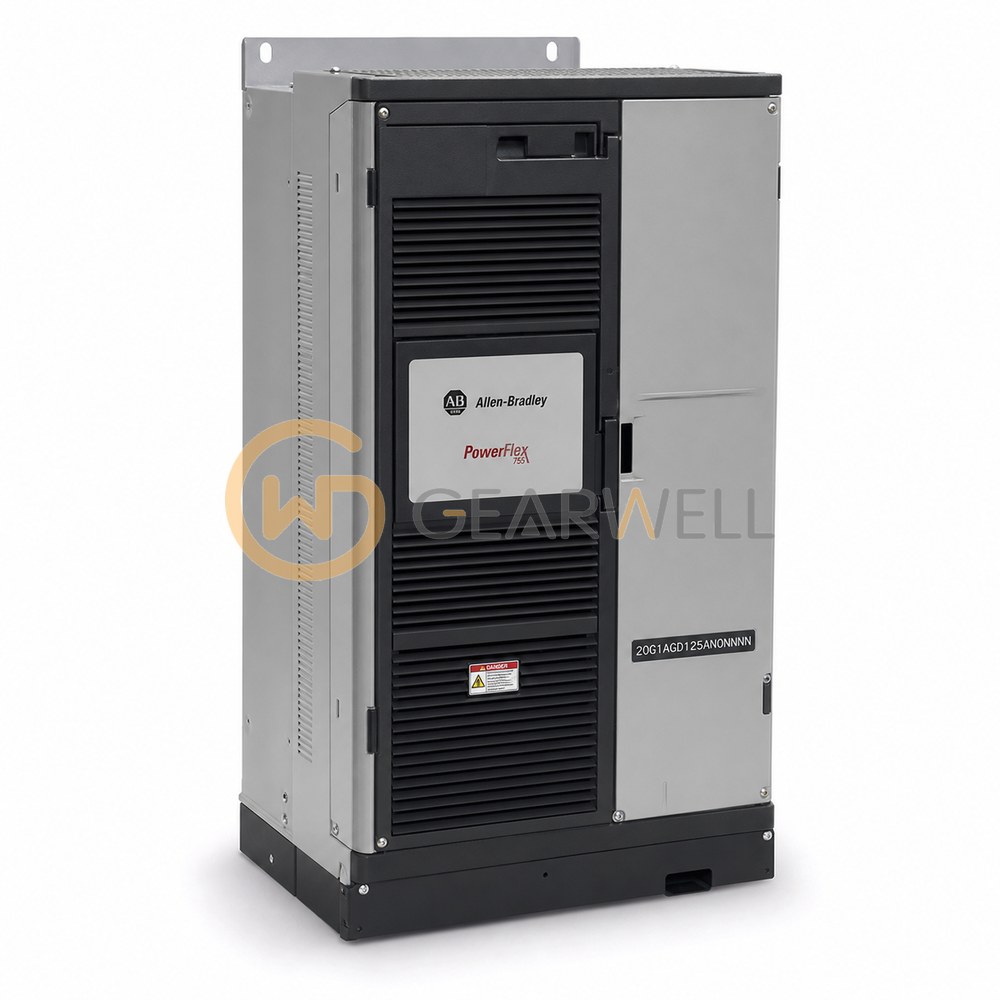

Allen-Bradley 20G1AGD125AN0NNNNN PowerFlex 755 100 hp 480 V AC VFD
- Brand
- Allen-Bradley
- Model
- 20G1AGD125AN0NNNNN
- GEARWELL SKU
- GWP-000001340
- Category
- Industrial Automation Parts
Key specifications
- Enclosure
- IP54, NEMA/UL Type 12
- Product family
- PowerFlex 755
- Input type
- AC input with precharge, without DC terminals
- Product type
- PowerFlex 755 variable-frequency AC drive
- AC input voltage
- 480 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G1AGD125AN0NNNNN is a PowerFlex 755 AC drive for the 480 V AC / 650 V DC class in frame 6, built as an IP54, NEMA/UL Type 12 enclosed drive with AC input with precharge and no DC terminals. Rockwell rates it at 125 A and 100 Hp for normal duty and 96 A and 75 Hp for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and no internal dynamic braking transistor. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G1AGD125AN0NNNNN PowerFlex 755 100 hp 480 V AC VFD |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G1AGD125AN0NNNNN |
| Category | Industrial Automation Parts |
| Enclosure | IP54, NEMA/UL Type 12 |
| Product family | PowerFlex 755 |
| Input type | AC input with precharge, without DC terminals |
| Product type | PowerFlex 755 variable-frequency AC drive |
| AC input voltage | 480 V AC |
| Normal-duty output current | 125 A |
| Heavy-duty motor power | 75 hp |
| Lifecycle status | Discontinued |
| Normal-duty motor power | 100 hp |
