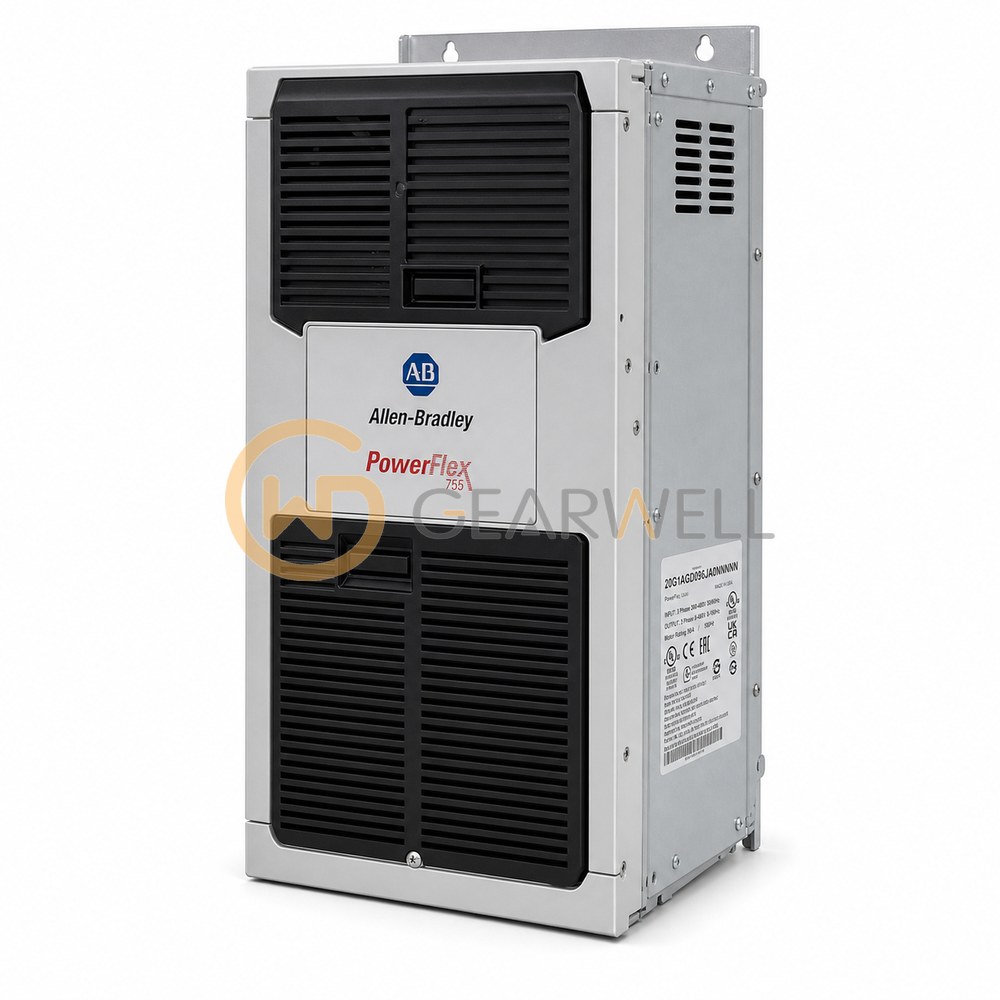

Allen-Bradley 20G1AGD096JA0NNNNN PowerFlex 755 75 hp 480 V AC VFD
- Brand
- Allen-Bradley
- Model
- 20G1AGD096JA0NNNNN
- GEARWELL SKU
- GWP-000001153
- Category
- Industrial Automation Parts
Key specifications
- Enclosure
- IP54, NEMA/UL Type 12
- Frame size
- Frame 6
- Input type
- AC input with precharge, without DC terminals
- AC input voltage
- 480 V AC
- Normal-duty output current
- 96 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G1AGD096JA0NNNNN is a PowerFlex 755 AC drive for the 480 V AC / 650 V DC class in frame 6, built as an IP54, NEMA/UL Type 12 enclosed drive with AC input with precharge and no DC terminals. Rockwell rates it at 96 A and 75 Hp for normal duty and 77 A and 60 Hp for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G1AGD096JA0NNNNN PowerFlex 755 75 hp 480 V AC VFD |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G1AGD096JA0NNNNN |
| Category | Industrial Automation Parts |
| Enclosure | IP54, NEMA/UL Type 12 |
| Frame size | Frame 6 |
| Input type | AC input with precharge, without DC terminals |
| AC input voltage | 480 V AC |
| Normal-duty output current | 96 A |
| Dynamic braking | Internal braking transistor installed |
| Heavy-duty motor power | 60 hp |
| Normal-duty motor power | 75 hp |
| Protection and cooling | Standard protection; forced-air cooling |
