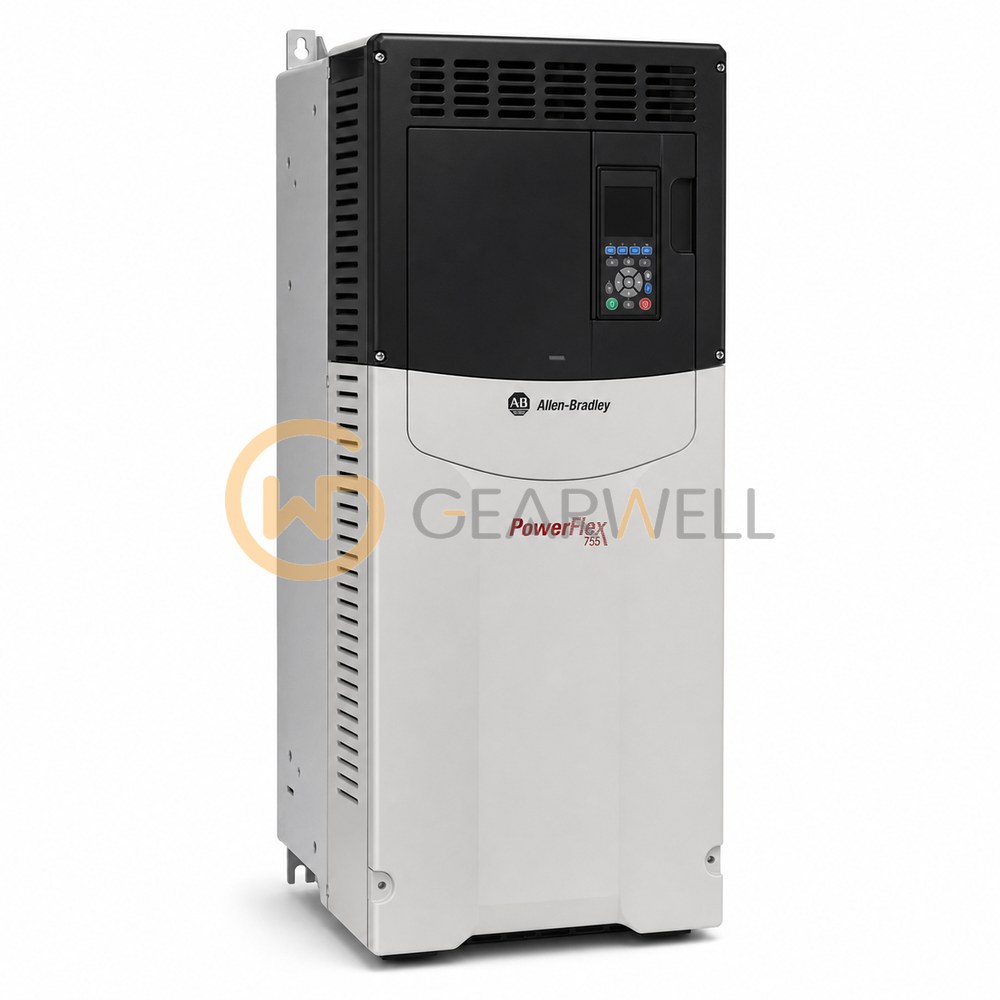

Allen-Bradley 20G1AGC205JN0NNNNN PowerFlex 755 110 kW 400 V AC VFD
- Brand
- Allen-Bradley
- Model
- 20G1AGC205JN0NNNNN
- GEARWELL SKU
- GWP-000004238
- Category
- Industrial Automation Parts
Key specifications
- Heavy-duty motor power
- 90 kW
- Normal-duty motor power
- 110 kW
- Normal-duty output current
- 205 A
- AC input voltage
- 400 V AC
- Enclosure
- IP54, NEMA/UL Type 12
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G1AGC205JN0NNNNN is a PowerFlex 755 AC drive for the 400 V AC / 540 V DC class in frame 6, built as an IP54, NEMA/UL Type 12 enclosed drive with AC input with precharge and no DC terminals. Rockwell rates it at 205 A and 110 kW for normal duty and 170 A and 90 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and no internal dynamic braking transistor. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G1AGC205JN0NNNNN PowerFlex 755 110 kW 400 V AC VFD |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G1AGC205JN0NNNNN |
| Category | Industrial Automation Parts |
| Heavy-duty motor power | 90 kW |
| Normal-duty motor power | 110 kW |
| Normal-duty output current | 205 A |
| AC input voltage | 400 V AC |
| Enclosure | IP54, NEMA/UL Type 12 |
| Product family | PowerFlex 755 |
| Frame size | Frame 6 |
| Input type | AC input with precharge, without DC terminals |
| Motor control modes | V/Hz, sensorless vector, and flux vector control (with or without feedback); permanent-magnet motor control with or without encoder feedback |
| Dynamic braking | No internal braking transistor |
| EMC filter and common-mode jumper | EMC filter; common-mode jumper installed by default |
