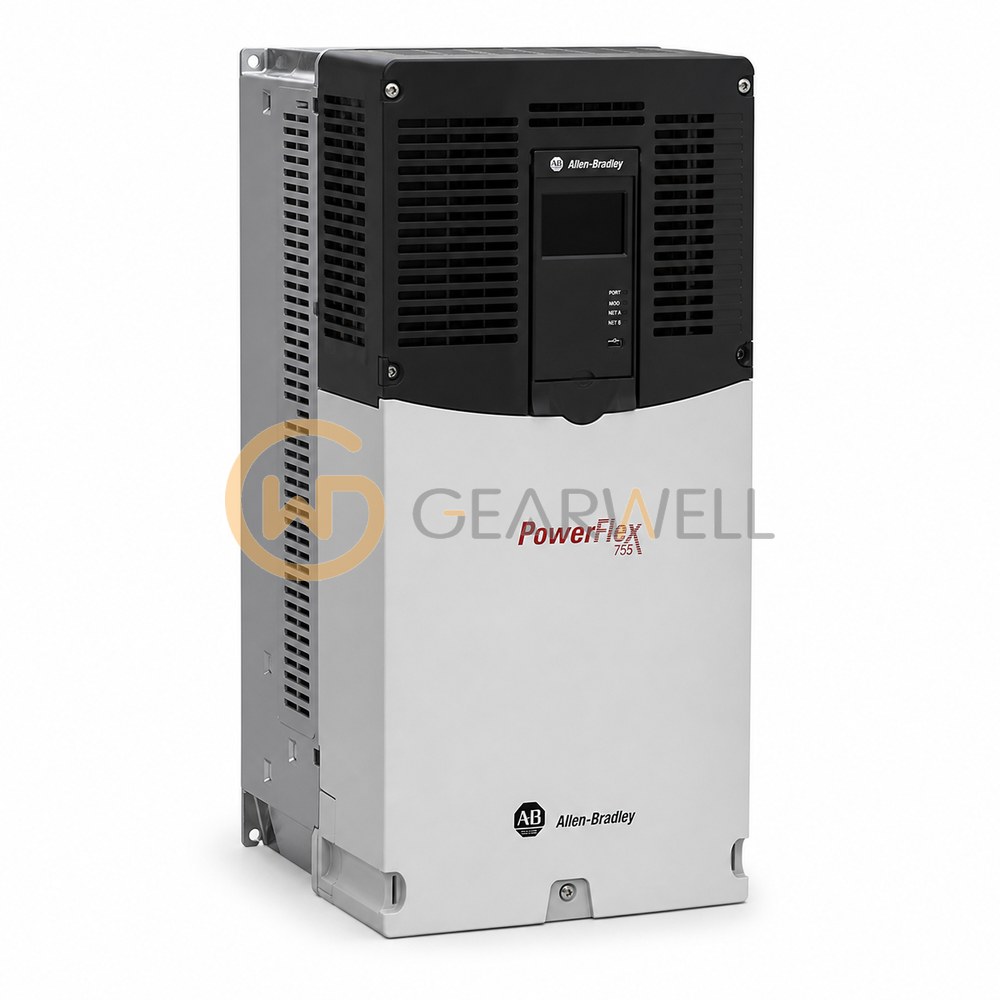

Allen-Bradley 20G1AGC170JN0NNNNN PowerFlex 755 90 kW 400 V AC VFD
- Brand
- Allen-Bradley
- Model
- 20G1AGC170JN0NNNNN
- GEARWELL SKU
- GWP-000002914
- Category
- Industrial Automation Parts
Key specifications
- Enclosure
- IP54, NEMA/UL Type 12
- Input type
- AC input with precharge, without DC terminals
- Product type
- PowerFlex 755 variable-frequency AC drive
- AC input voltage
- 400 V AC
- Normal-duty output current
- 170 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20G1AGC170JN0NNNNN is a PowerFlex 755 AC drive for the 400 V AC / 540 V DC class in frame 6, built as an IP54, NEMA/UL Type 12 enclosed drive with AC input with precharge and no DC terminals. Rockwell rates it at 170 A and 90 kW for normal duty and 140 A and 75 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and no internal dynamic braking transistor. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 755 is Rockwell's 750-Series drive for maximum flexibility and performance up to 2000 Hp and 1500 kW, with a built-in Ethernet port, slot-based option cards, DeviceLogix embedded control and a choice of safety options.
Technical reference
| Product name | Allen-Bradley 20G1AGC170JN0NNNNN PowerFlex 755 90 kW 400 V AC VFD |
|---|---|
| Brand | Allen-Bradley |
| Model | 20G1AGC170JN0NNNNN |
| Category | Industrial Automation Parts |
| Enclosure | IP54, NEMA/UL Type 12 |
| Input type | AC input with precharge, without DC terminals |
| Product type | PowerFlex 755 variable-frequency AC drive |
| AC input voltage | 400 V AC |
| Normal-duty output current | 170 A |
| Dynamic braking | No internal braking transistor |
| Heavy-duty motor power | 75 kW |
| Lifecycle status | Active mature |
| Normal-duty motor power | 90 kW |
| Drive configuration | The Allen-Bradley 20G1AGC170JN0NNNNN is a PowerFlex 755 variable-frequency drive for AC motor control. Rated at 90 kW normal duty (75 kW heavy duty), with 170 A continuous normal-duty output. AC input with precharge, without DC terminals, rated 400 V AC three-phase input. Enclosure: IP54, NEMA/UL Type 12. Frame 6. No internal braking transistor. EMC filter; common-mode jumper installed by default. Operator interface: No door-mounted HIM. Embedded EtherNet/IP interface. Standard protection; forced-air cooling. |
| EMC filter and common-mode jumper | EMC filter; common-mode jumper installed by default |
