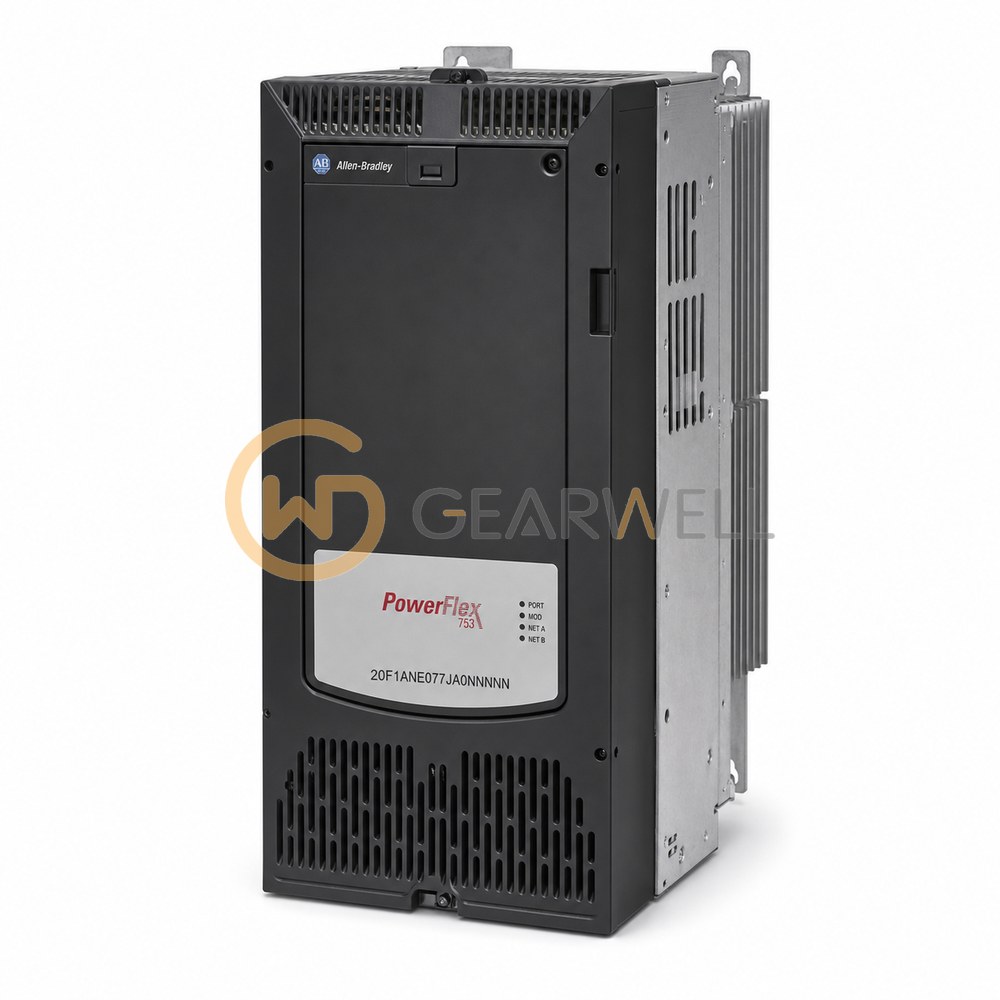

Allen-Bradley 20F1ANE077JA0NNNNN Industrial Electronic Component

Allen-Bradley 20F1ANE077JA0NNNNN PowerFlex 753 75 hp 600 V AC VFD

Model
20F1ANE077JA0NNNNN
GEARWELL SKU
GWP-000003734
Category
Industrial Automation Parts

Key specifications

Enclosure
IP00, NEMA/UL Type Open
Product family
PowerFlex 753
Product type
PowerFlex 753 variable-frequency AC drive
AC input voltage
600 V AC
Normal-duty output current
77 A
Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Product overview

The Allen-Bradley 20F1ANE077JA0NNNNN is a PowerFlex 753 AC drive for the 600 V AC / 810 V DC class in frame 6, built as an IP00, NEMA/UL Type Open wall-mount chassis with AC input with precharge and no DC terminals. Rockwell rates it at 77 A and 75 Hp for normal duty and 63 A and 60 Hp for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke, and frame 6…7 Open Type drives can be converted to IP20, NEMA/UL Type 1 with the 20-750-NEMA1-Fx kit. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.

Technical reference

Product nameAllen-Bradley 20F1ANE077JA0NNNNN PowerFlex 753 75 hp 600 V AC VFD
BrandAllen-Bradley
Model20F1ANE077JA0NNNNN
CategoryIndustrial Automation Parts
EnclosureIP00, NEMA/UL Type Open
Product familyPowerFlex 753
Product typePowerFlex 753 variable-frequency AC drive
AC input voltage600 V AC
Normal-duty output current77 A
Heavy-duty motor power60 hp
Lifecycle statusActive
Normal-duty motor power75 hp
Drive configurationThe Allen-Bradley 20F1ANE077JA0NNNNN is a PowerFlex 753 variable-frequency drive for AC motor control. Rated at 75 hp normal duty (60 hp heavy duty), with 77 A continuous normal-duty output. AC input with precharge, without DC terminals, rated 600 V AC three-phase input. Enclosure: IP00, NEMA/UL Type Open. Frame 6. Internal braking transistor installed. EMC filter; common-mode jumper installed by default.
