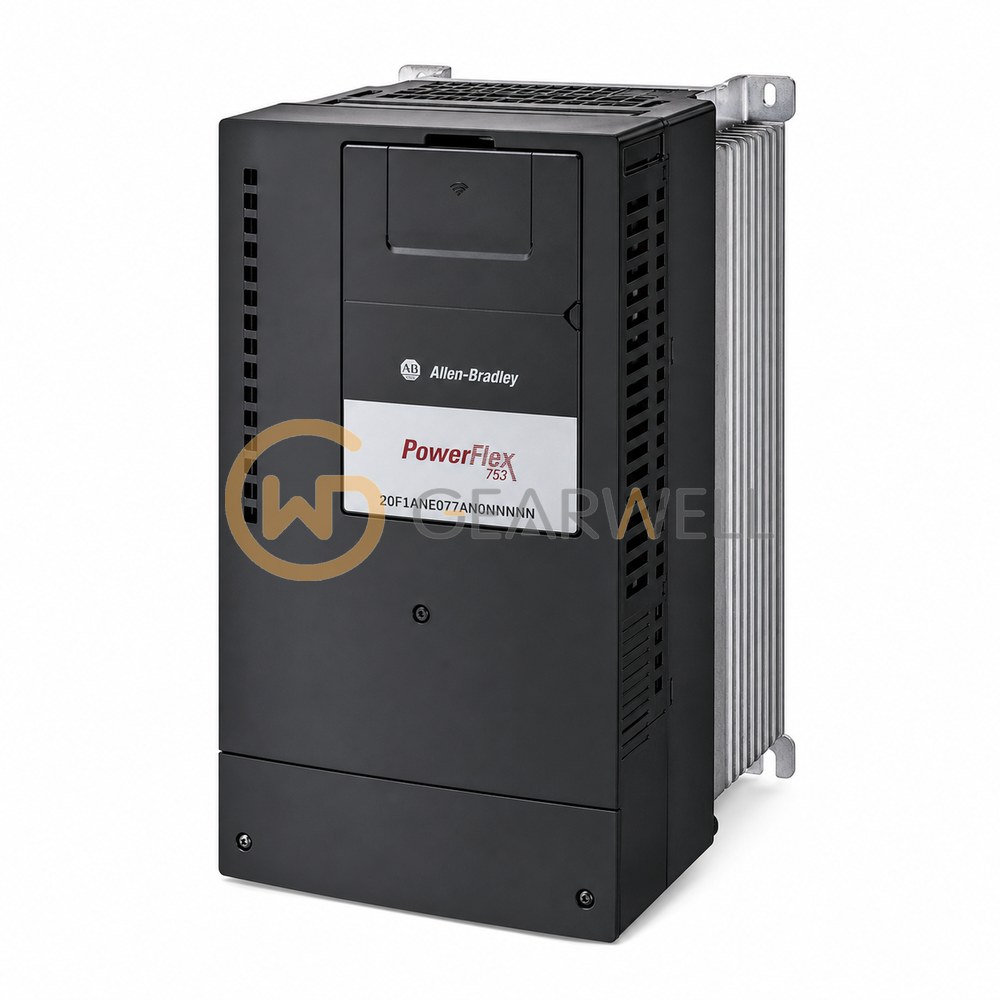

Allen-Bradley 20F1ANE077AN0NNNNN PowerFlex 753 75 hp 600 V AC VFD
- Brand
- Allen-Bradley
- Model
- 20F1ANE077AN0NNNNN
- GEARWELL SKU
- GWP-000003135
- Category
- Industrial Automation Parts
Key specifications
- Enclosure
- IP00, NEMA/UL Type Open
- Product family
- PowerFlex 753
- Input type
- AC input with precharge, without DC terminals
- Product type
- PowerFlex 753 variable-frequency AC drive
- AC input voltage
- 600 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F1ANE077AN0NNNNN is a PowerFlex 753 AC drive for the 600 V AC / 810 V DC class in frame 6, built as an IP00, NEMA/UL Type Open wall-mount chassis with AC input with precharge and no DC terminals. Rockwell rates it at 77 A and 75 Hp for normal duty and 63 A and 60 Hp for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and no internal dynamic braking transistor. Wall-mount frames 1…7 include a DC link choke, and frame 6…7 Open Type drives can be converted to IP20, NEMA/UL Type 1 with the 20-750-NEMA1-Fx kit. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F1ANE077AN0NNNNN PowerFlex 753 75 hp 600 V AC VFD |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F1ANE077AN0NNNNN |
| Category | Industrial Automation Parts |
| Enclosure | IP00, NEMA/UL Type Open |
| Product family | PowerFlex 753 |
| Input type | AC input with precharge, without DC terminals |
| Product type | PowerFlex 753 variable-frequency AC drive |
| AC input voltage | 600 V AC |
| Normal-duty output current | 77 A |
| Heavy-duty motor power | 60 hp |
| Lifecycle status | Discontinued |
| Normal-duty motor power | 75 hp |
