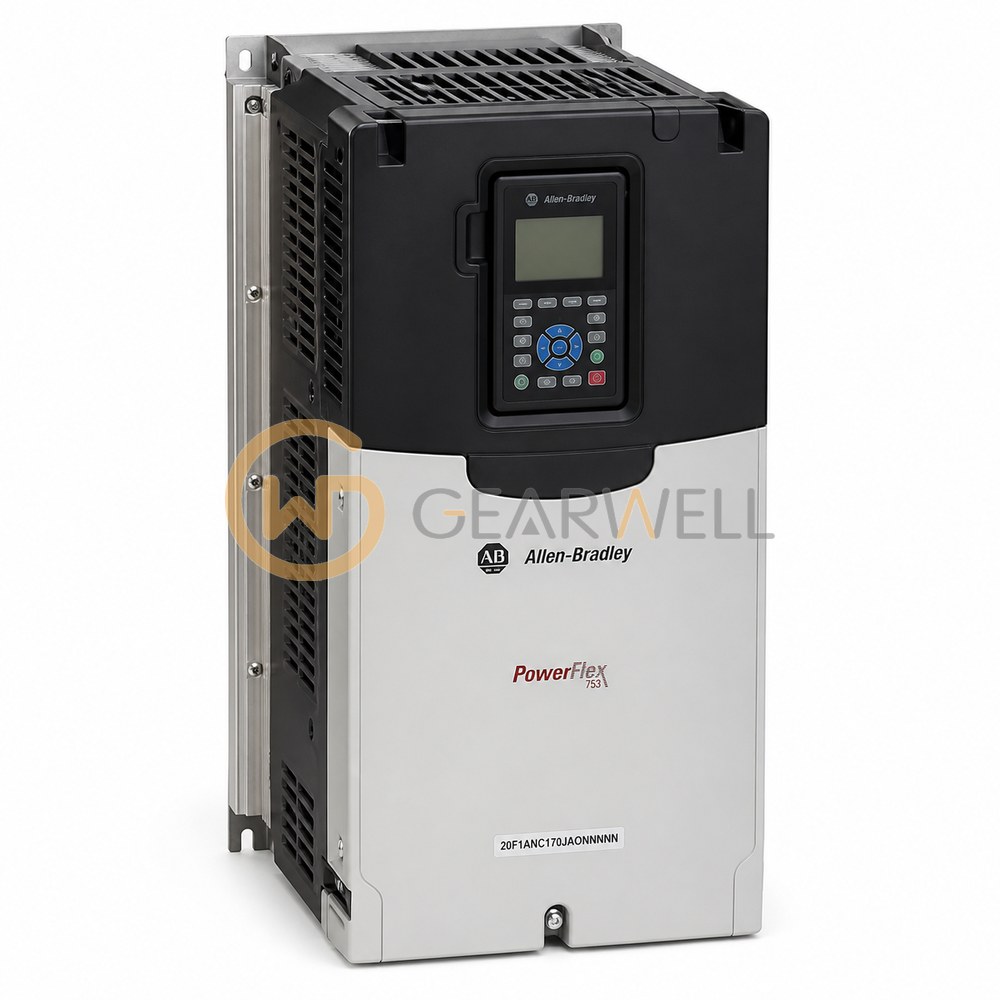

Allen-Bradley 20F1ANC170JA0NNNNN PowerFlex 753 90 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20F1ANC170JA0NNNNN
- GEARWELL SKU
- GWP-000001052
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- 6
- Typical application
- Induction motor speed and torque control
- Drive family
- PowerFlex 753
- Product type
- Low-voltage AC variable frequency drive
- Input voltage
- 400 V AC, three-phase
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 20F1ANC170JA0NNNNN PowerFlex 753 90 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F1ANC170JA0NNNNN |
| Category | Variable Frequency Drives |
| Frame size | 6 |
| Typical application | Induction motor speed and torque control |
| Drive family | PowerFlex 753 |
| Product type | Low-voltage AC variable frequency drive |
| Input voltage | 400 V AC, three-phase |
| Motor control modes | V/Hz, sensorless vector and flux vector control |
| Product series | PowerFlex 750-Series |
| Dynamic braking | Internal braking transistor installed; no internal braking resistor |
| Enclosure | IP00, NEMA/UL Type Open |
| Motor power rating | 90 kW (ND); 75 kW (HD) |
| Continuous output current | 170 A (ND); 140 A (HD) |
