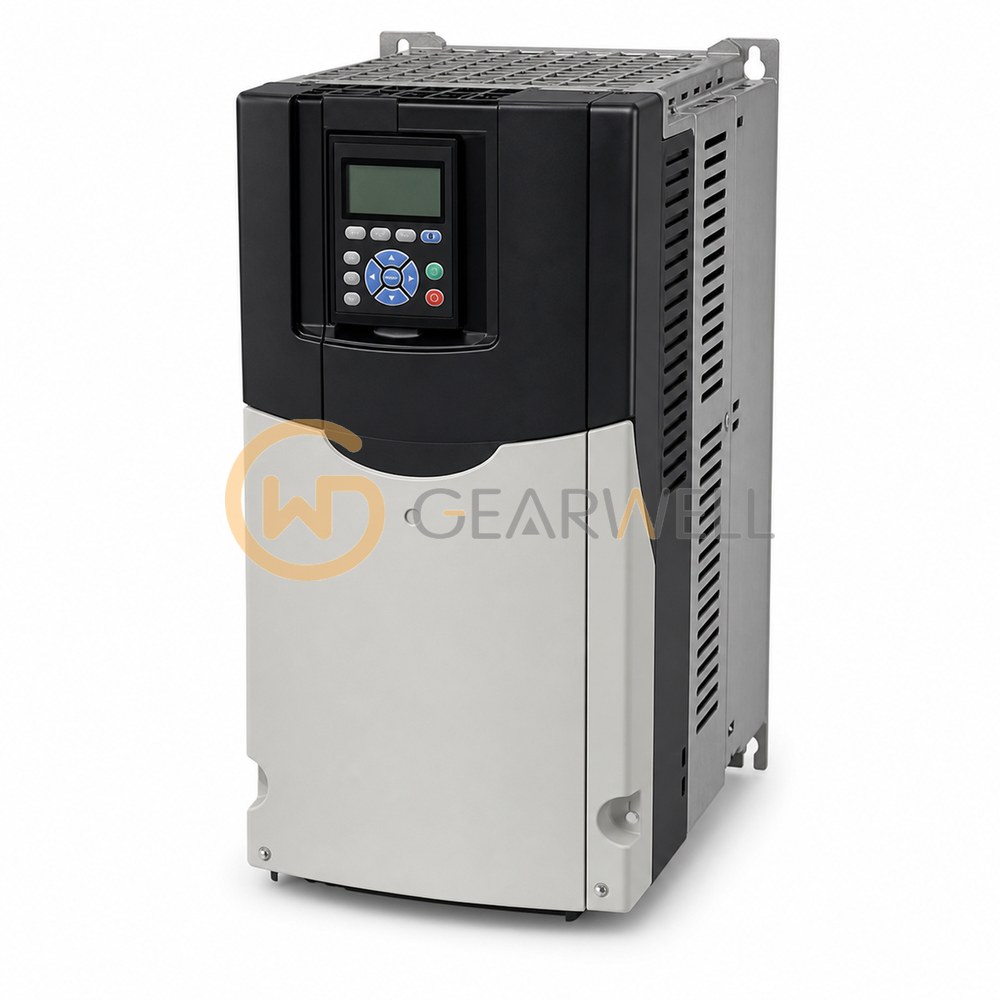

Allen-Bradley 20F1ANC170AA0NNNNN PowerFlex 753 400 V AC 90 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20F1ANC170AA0NNNNN
- GEARWELL SKU
- GWP-000000742
- Category
- Variable Frequency Drives
Key specifications
- Configured enclosure
- IP00, NEMA/UL Open Type
- Drive frame
- 6
- Input configuration
- AC input with precharge, without DC terminals
- Product type
- Variable-frequency AC motor drive
- Nominal input voltage
- 400 V AC, three-phase
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F1ANC170AA0NNNNN is a PowerFlex 753 AC drive for the 400 V AC / 540 V DC class in frame 6, built as an IP00, NEMA/UL Type Open wall-mount chassis with AC input with precharge and no DC terminals. Rockwell rates it at 170 A and 90 kW for normal duty and 140 A and 75 kW for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke, and frame 6…7 Open Type drives can be converted to IP20, NEMA/UL Type 1 with the 20-750-NEMA1-Fx kit. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F1ANC170AA0NNNNN PowerFlex 753 400 V AC 90 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F1ANC170AA0NNNNN |
| Category | Variable Frequency Drives |
| Configured enclosure | IP00, NEMA/UL Open Type |
| Drive frame | 6 |
| Input configuration | AC input with precharge, without DC terminals |
| Product type | Variable-frequency AC motor drive |
| Nominal input voltage | 400 V AC, three-phase |
| Rated motor output | 170 A continuous, normal duty; 90 kW normal duty; 75 kW heavy duty |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Output frequency | 0–325 Hz at 2 kHz carrier frequency; 0–590 Hz at 4 kHz carrier frequency |
| Normal-duty motor power | 90 kW, normal duty |
| Motor control | V/Hz, sensorless vector and flux vector control; feedback requirements depend on the selected control mode |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper removed |
