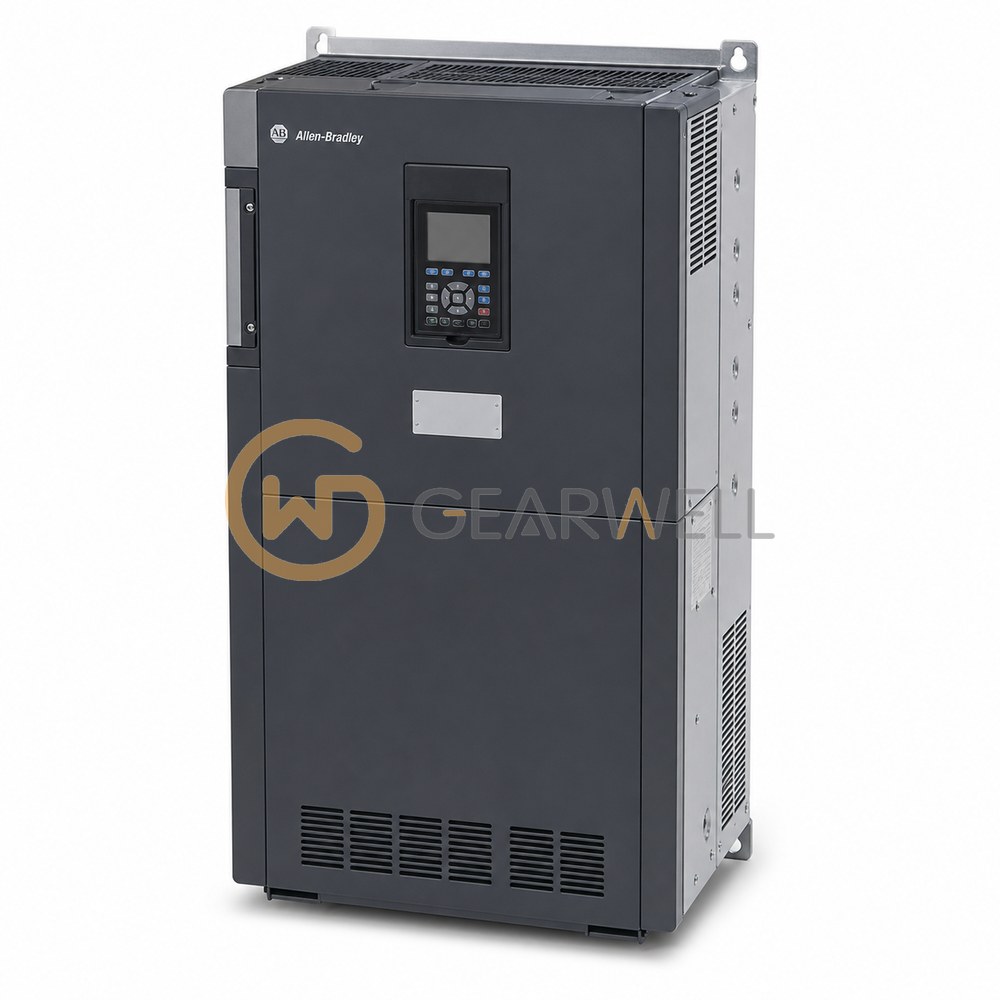

Allen-Bradley 20F1AGD248AN0NNNNN PowerFlex 753 200 hp 480 V AC VFD
- Brand
- Allen-Bradley
- Model
- 20F1AGD248AN0NNNNN
- GEARWELL SKU
- GWP-000003800
- Category
- Industrial Automation Parts
Key specifications
- Enclosure
- IP54, NEMA/UL Type 12
- Input type
- AC input with precharge, without DC terminals
- Product type
- PowerFlex 753 variable-frequency AC drive
- AC input voltage
- 480 V AC
- Normal-duty output current
- 248 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F1AGD248AN0NNNNN is a PowerFlex 753 AC drive for the 480 V AC / 650 V DC class in frame 7, built as an IP54, NEMA/UL Type 12 enclosed drive with AC input with precharge and no DC terminals. Rockwell rates it at 248 A and 200 Hp for normal duty and 186 A and 150 Hp for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and no internal dynamic braking transistor. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F1AGD248AN0NNNNN PowerFlex 753 200 hp 480 V AC VFD |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F1AGD248AN0NNNNN |
| Category | Industrial Automation Parts |
| Enclosure | IP54, NEMA/UL Type 12 |
| Input type | AC input with precharge, without DC terminals |
| Product type | PowerFlex 753 variable-frequency AC drive |
| AC input voltage | 480 V AC |
| Normal-duty output current | 248 A |
| Dynamic braking | No internal braking transistor |
| Heavy-duty motor power | 150 hp |
| Lifecycle status | Discontinued |
| Normal-duty motor power | 200 hp |
| EMC filter and common-mode jumper | EMC filter; common-mode jumper removed by default |
