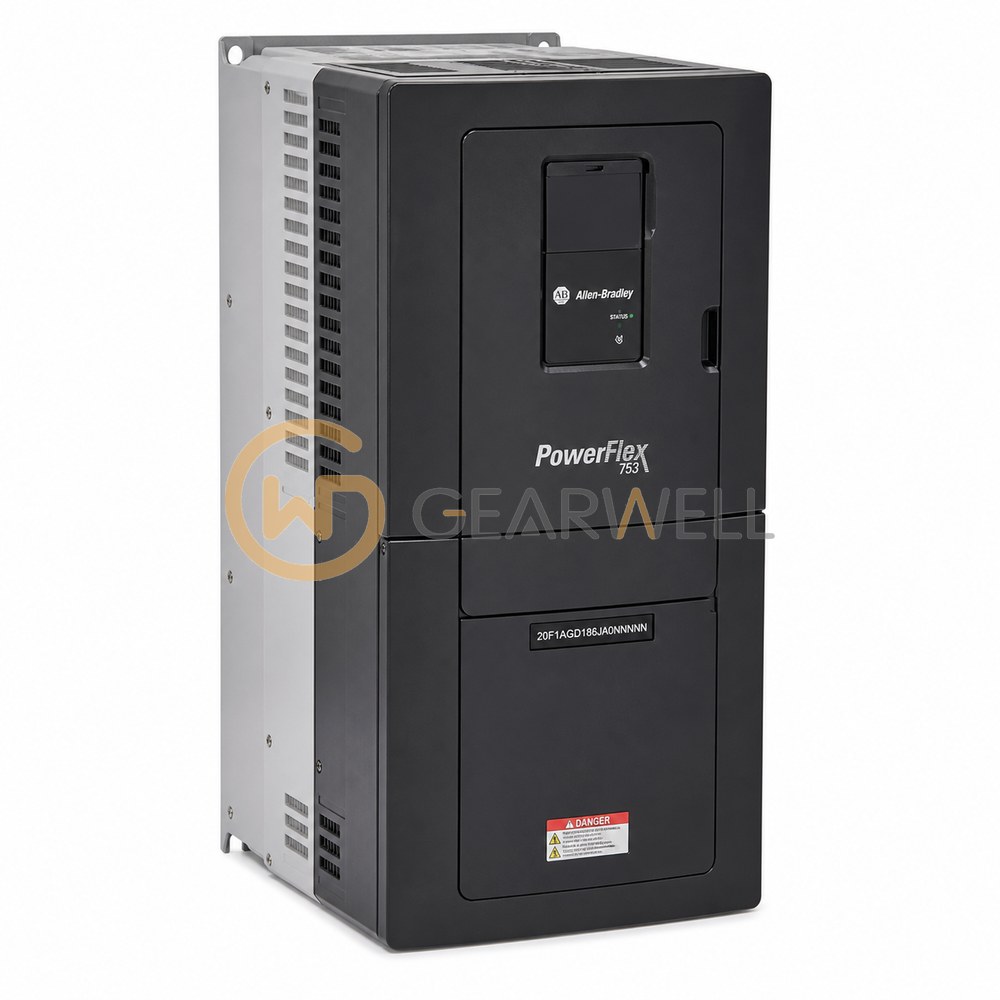

Allen-Bradley 20F1AGD186JA0NNNNN Industrial Electronic Component

Allen-Bradley 20F1AGD186JA0NNNNN PowerFlex 753 150 hp 480 V AC VFD

Model
20F1AGD186JA0NNNNN
GEARWELL SKU
GWP-000000874
Category
Industrial Automation Parts

Key specifications

AC input voltage
480 V AC
Enclosure
IP54, NEMA/UL Type 12
Frame size
Frame 6
Product type
PowerFlex 753 variable-frequency AC drive
Normal-duty output current
186 A
Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Product overview

The Allen-Bradley 20F1AGD186JA0NNNNN is a PowerFlex 753 AC drive for the 480 V AC / 650 V DC class in frame 6, built as an IP54, NEMA/UL Type 12 enclosed drive with AC input with precharge and no DC terminals. Rockwell rates it at 186 A and 150 Hp for normal duty and 156 A and 125 Hp for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. Wall-mount frames 1…7 include a DC link choke. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.

Technical reference

Product nameAllen-Bradley 20F1AGD186JA0NNNNN PowerFlex 753 150 hp 480 V AC VFD
BrandAllen-Bradley
Model20F1AGD186JA0NNNNN
CategoryIndustrial Automation Parts
AC input voltage480 V AC
EnclosureIP54, NEMA/UL Type 12
Frame sizeFrame 6
Product typePowerFlex 753 variable-frequency AC drive
Normal-duty output current186 A
Heavy-duty motor power125 hp
Lifecycle statusActive
Normal-duty motor power150 hp
Drive configurationThe Allen-Bradley 20F1AGD186JA0NNNNN is a PowerFlex 753 variable-frequency drive for AC motor control. Rated at 150 hp normal duty (125 hp heavy duty), with 186 A continuous normal-duty output. AC input with precharge, without DC terminals, rated 480 V AC three-phase input. Enclosure: IP54, NEMA/UL Type 12. Frame 6. Internal braking transistor installed. EMC filter; common-mode jumper installed by default.
