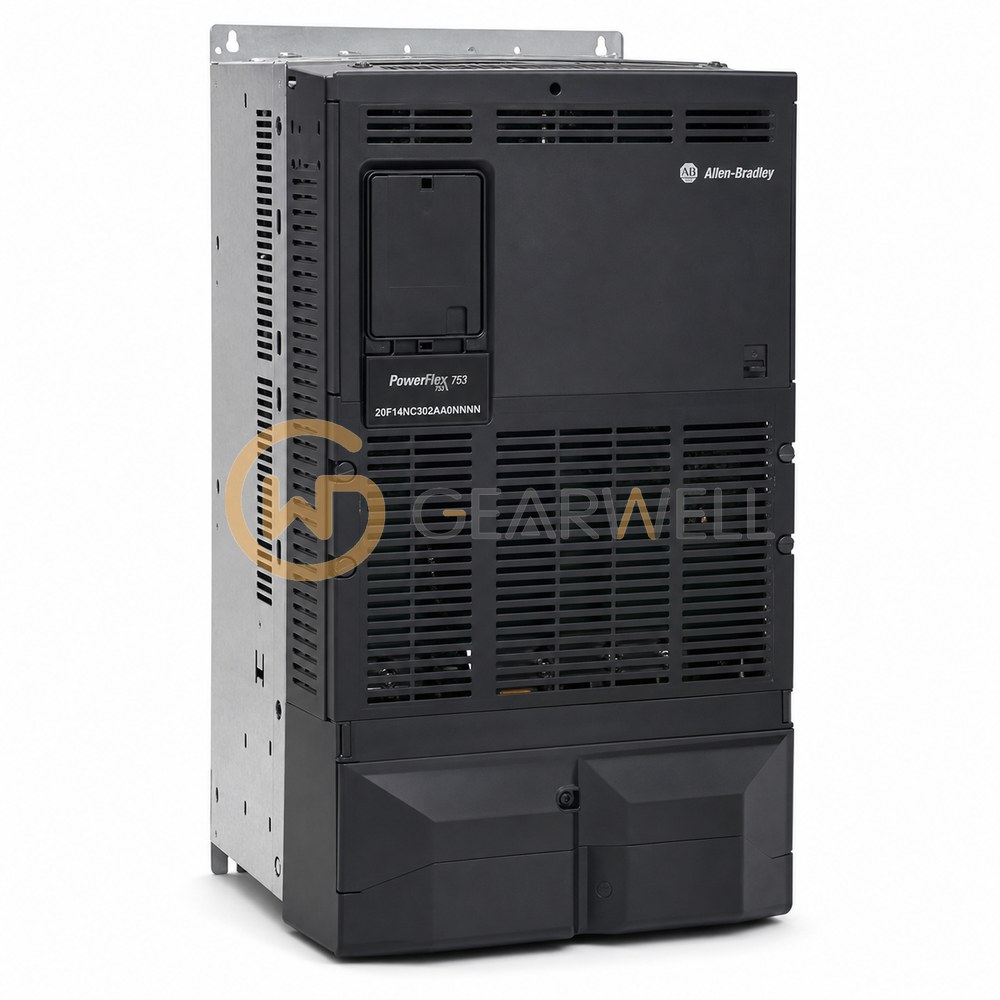

Allen-Bradley 20F14NC302AA0NNNNN PowerFlex 753 540 V DC 160 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20F14NC302AA0NNNNN
- GEARWELL SKU
- GWP-000001982
- Category
- Variable Frequency Drives
Key specifications
- Drive family
- PowerFlex 753
- Drive frame
- 7
- Product type
- Variable-frequency AC motor drive
- Braking hardware
- Internal braking transistor fitted; braking resistor not included
- Manufacturer lifecycle status
- discontinued
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 20F14NC302AA0NNNNN PowerFlex 753 540 V DC 160 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F14NC302AA0NNNNN |
| Category | Variable Frequency Drives |
| Drive family | PowerFlex 753 |
| Drive frame | 7 |
| Product type | Variable-frequency AC motor drive |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Manufacturer lifecycle status | discontinued |
| Rated motor output | 302 A continuous, normal duty; 160 kW normal duty; 132 kW heavy duty |
| Nominal input voltage | 540 V DC nominal |
| Configured enclosure | IP00, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper removed |
