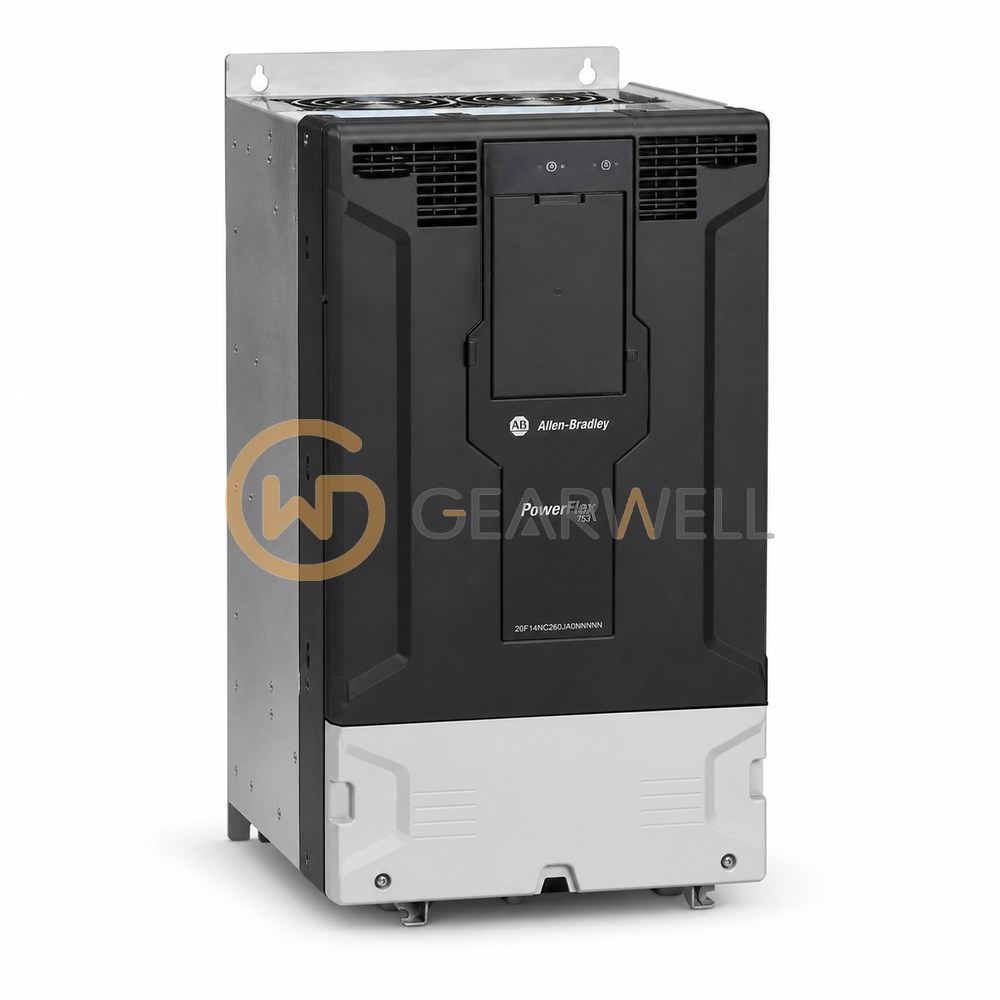

Allen-Bradley 20F14NC260JA0NNNNN PowerFlex 753 540 V DC 132 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20F14NC260JA0NNNNN
- GEARWELL SKU
- GWP-000001734
- Category
- Variable Frequency Drives
Key specifications
- Heavy-duty motor power
- 110 kW, heavy duty
- Normal-duty motor power
- 132 kW, normal duty
- Normal-duty output current
- 260 A continuous, normal duty
- Nominal input voltage
- 540 V DC nominal
- Drive family
- PowerFlex 753
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 20F14NC260JA0NNNNN PowerFlex 753 540 V DC 132 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F14NC260JA0NNNNN |
| Category | Variable Frequency Drives |
| Heavy-duty motor power | 110 kW, heavy duty |
| Normal-duty motor power | 132 kW, normal duty |
| Normal-duty output current | 260 A continuous, normal duty |
| Nominal input voltage | 540 V DC nominal |
| Drive family | PowerFlex 753 |
| Input configuration | Common DC bus input with precharge |
| Drive frame | 6 |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| Operator interface | No factory-fitted HIM |
| Protection and cooling | Standard corrosive-gas protection; forced-air cooling |
| Motor control | V/Hz, sensorless vector and flux vector control; feedback requirements depend on the selected control mode |
| Configured enclosure | IP00, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
