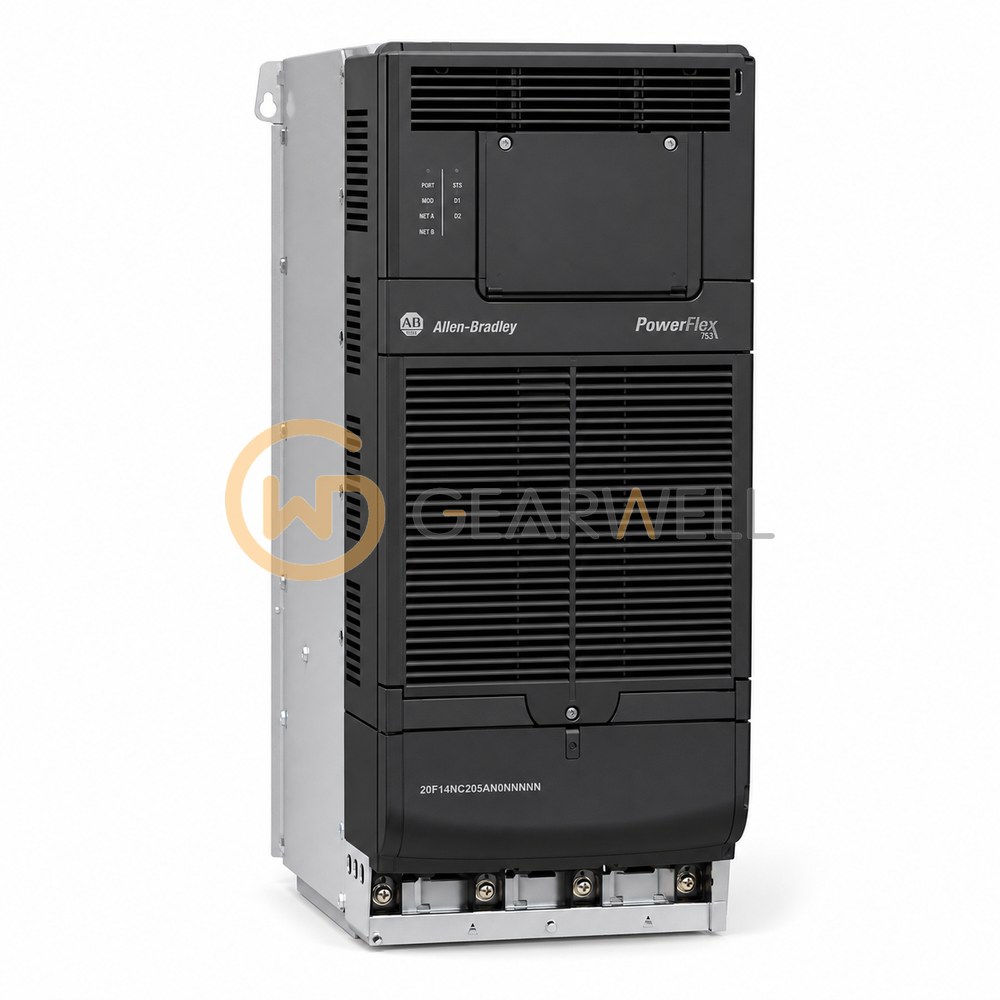

Allen-Bradley 20F14NC205AN0NNNNN PowerFlex 753 540 V DC 110 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20F14NC205AN0NNNNN
- GEARWELL SKU
- GWP-000004309
- Category
- Variable Frequency Drives
Key specifications
- Drive family
- PowerFlex 753
- Drive frame
- 6
- Product type
- Variable-frequency AC motor drive
- Manufacturer lifecycle status
- discontinued
- Rated motor output
- 205 A continuous, normal duty; 110 kW normal duty; 90 kW heavy duty
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F14NC205AN0NNNNN is a PowerFlex 753 AC drive for the 400 V AC / 540 V DC class in frame 6, built as an IP00, NEMA/UL Type Open wall-mount chassis with DC input with precharge (common bus). Rockwell rates it at 205 A and 110 kW for normal duty and 170 A and 90 kW for heavy duty. This version has filtering with the common mode capacitor jumper removed (Rockwell now lists code A as no longer available) and no internal dynamic braking transistor. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F14NC205AN0NNNNN PowerFlex 753 540 V DC 110 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F14NC205AN0NNNNN |
| Category | Variable Frequency Drives |
| Drive family | PowerFlex 753 |
| Drive frame | 6 |
| Product type | Variable-frequency AC motor drive |
| Manufacturer lifecycle status | discontinued |
| Rated motor output | 205 A continuous, normal duty; 110 kW normal duty; 90 kW heavy duty |
| Nominal input voltage | 540 V DC nominal |
| Braking hardware | No internal braking transistor; braking resistor not included |
| Configured enclosure | IP00, NEMA/UL Open Type |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper removed |
