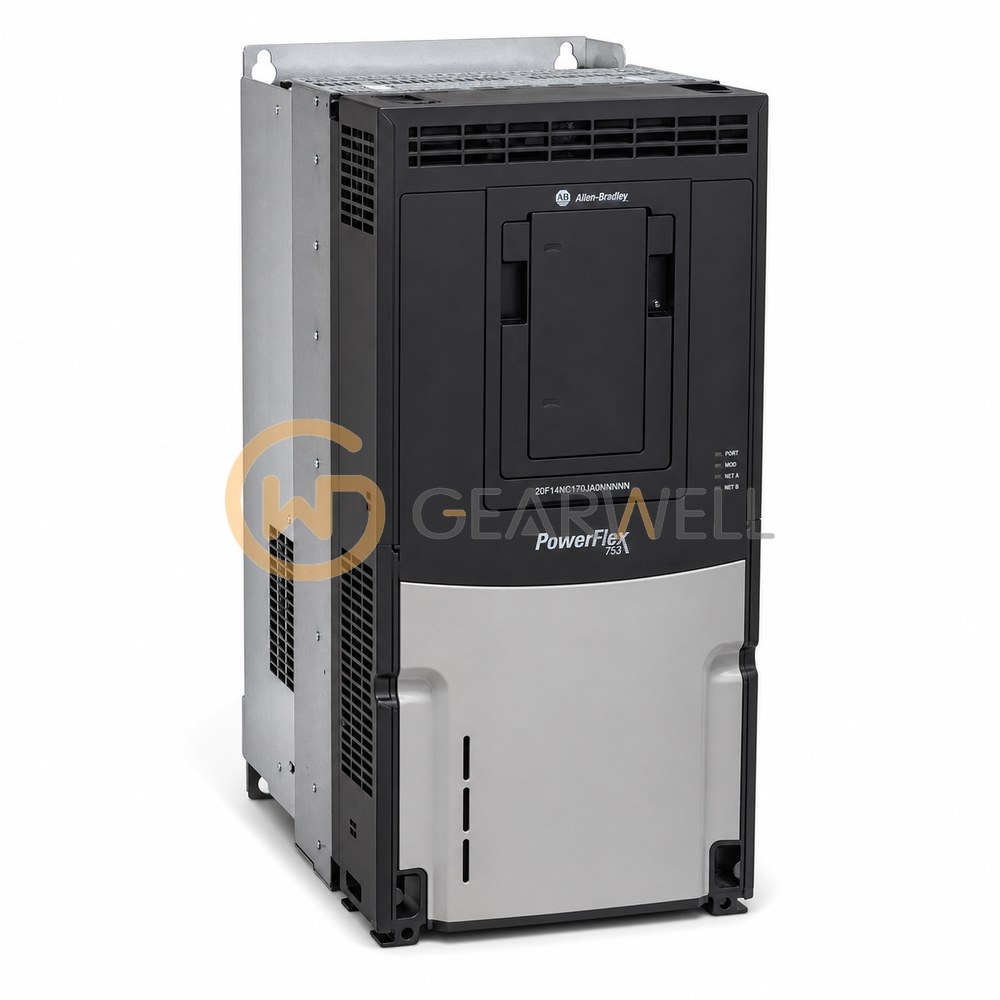

Allen-Bradley 20F14NC170JA0NNNNN PowerFlex 753 540 V DC 90 kW AC Drive
- Brand
- Allen-Bradley
- Model
- 20F14NC170JA0NNNNN
- GEARWELL SKU
- GWP-000003376
- Category
- Variable Frequency Drives
Key specifications
- Input configuration
- Common DC bus input with precharge
- Drive frame
- 6
- Product type
- Variable-frequency AC motor drive
- Manufacturer lifecycle status
- active
- Rated motor output
- 170 A continuous, normal duty; 90 kW normal duty; 75 kW heavy duty
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20F14NC170JA0NNNNN is a PowerFlex 753 AC drive for the 400 V AC / 540 V DC class in frame 6, built as an IP00, NEMA/UL Type Open wall-mount chassis with DC input with precharge (common bus). Rockwell rates it at 170 A and 90 kW for normal duty and 140 A and 75 kW for heavy duty. This version has filtering with the common mode capacitor jumper installed and the internal dynamic braking transistor installed. The PowerFlex 753 is Rockwell's general-purpose 750-Series drive for applications up to 400 Hp and 270 kW, with built-in I/O, slot-based option cards, DeviceLogix embedded control and Ethernet available through a communication module.
Technical reference
| Product name | Allen-Bradley 20F14NC170JA0NNNNN PowerFlex 753 540 V DC 90 kW AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20F14NC170JA0NNNNN |
| Category | Variable Frequency Drives |
| Input configuration | Common DC bus input with precharge |
| Drive frame | 6 |
| Product type | Variable-frequency AC motor drive |
| Manufacturer lifecycle status | active |
| Rated motor output | 170 A continuous, normal duty; 90 kW normal duty; 75 kW heavy duty |
| Nominal input voltage | 540 V DC nominal |
| Configuration summary | PowerFlex 753; 540 V DC nominal; 170 A continuous, normal duty; 90 kW normal duty; 75 kW heavy duty; frame 6; IP00, NEMA/UL Open Type; Internal braking transistor fitted; braking resistor not included. |
| Braking hardware | Internal braking transistor fitted; braking resistor not included |
| EMC filtering and CM jumper | EMC filter fitted; CM jumper installed |
