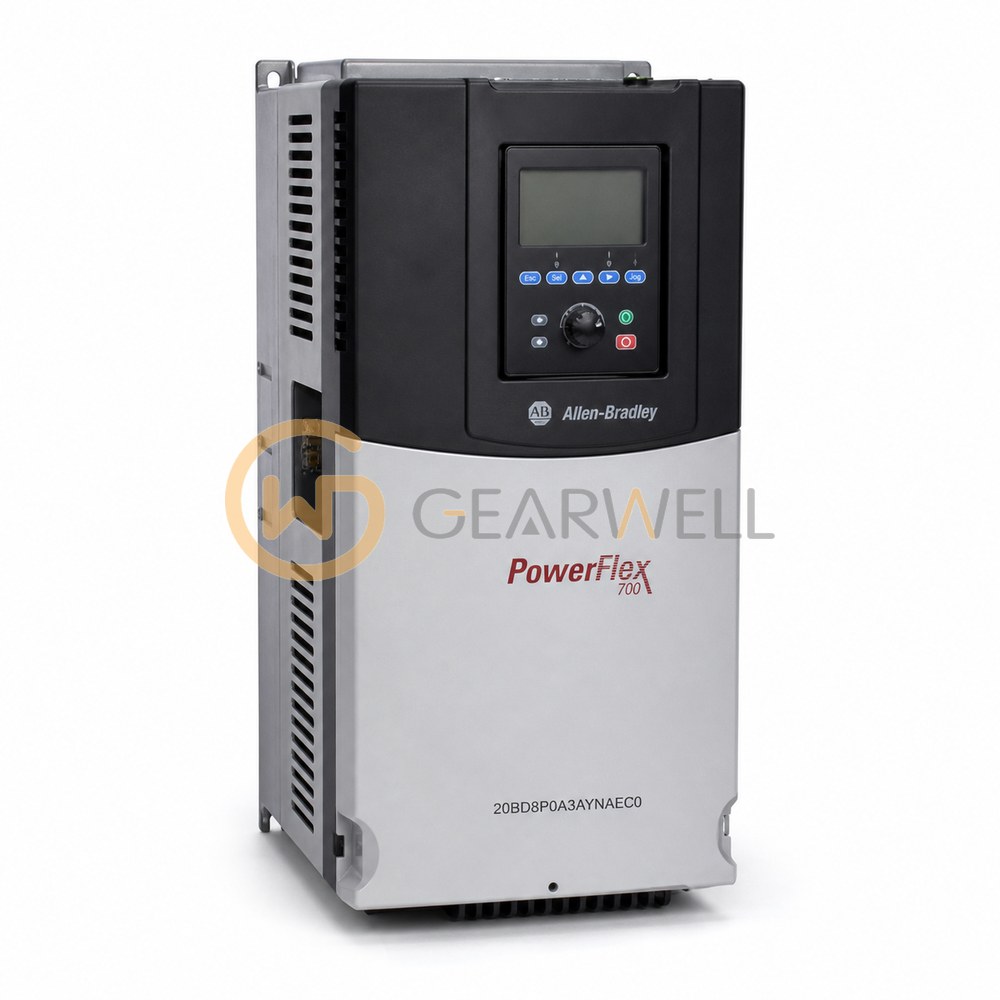

Allen-Bradley 20BD8P0A3AYNAEC0 PowerFlex 700 480 V 5 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20BD8P0A3AYNAEC0
- GEARWELL SKU
- GWP-000003031
- Category
- Variable Frequency Drives
Key specifications
- Normal-duty motor output
- 8 A continuous, 5 hp normal duty; frame 0
- Nominal input voltage
- 480 V AC
- Enclosure
- IP20 / NEMA / UL Type 1, with conformal coating
- AC input frequency
- 47-63 Hz
- Nominal line voltage
- 480 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20BD8P0A3AYNAEC0 is a PowerFlex 700 AC drive from Rockwell's PowerFlex family. At 480 V AC 3-phase input it is rated 5 HP normal duty and 3 HP heavy duty, with 8 A continuous output current, 8.8 A for 60 s and 12 A for 3 s. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 0, rated for 0…50 °C surrounding air without derating (typical). It comes with an LCD HIM with a full numeric keypad and a 7 line x 21 character backlit display. It has an internal dynamic brake transistor (IGBT) but no internal brake resistor. It has an integral CE EMC filter and common mode choke. It includes an internal EtherNet/IP communication adapter. It has the Vector Control option with 24V DC I/O. Motor control is volts per hertz, sensorless vector or vector control with Force Technology, with a 0…420 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
Technical reference
| Product name | Allen-Bradley 20BD8P0A3AYNAEC0 PowerFlex 700 480 V 5 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20BD8P0A3AYNAEC0 |
| Category | Variable Frequency Drives |
| Normal-duty motor output | 8 A continuous, 5 hp normal duty; frame 0 |
| Nominal input voltage | 480 V AC |
| Enclosure | IP20 / NEMA / UL Type 1, with conformal coating |
| AC input frequency | 47-63 Hz |
| Nominal line voltage | 480 V AC |
| Rated input apparent power | 5.7 kVA at 480 V AC, three-phase; normal duty |
| Rated input current | 6.9 A at 480 V AC, three-phase; normal duty |
| Input supply rating | 480 V AC, three-phase |
| Control and I/O | Vector control; 24 V DC digital inputs |
| Operator interface | LCD display with full numeric keypad |
| Factory communication module | EtherNet/IP |
| Degree of protection | IP20 |
| Feedback and braking | No encoder feedback option; Brake IGBT installed; no internal brake resistor |
