Allen-Bradley 20BD248A3ANNANC0 PowerFlex 700 480 V 200 hp AC Drive
- Brand
- Allen-Bradley
- Model
- 20BD248A3ANNANC0
- GEARWELL SKU
- GWP-000003621
- Category
- Variable Frequency Drives
Key specifications
- Normal-duty motor output
- 248 A continuous, 200 hp normal duty; frame 6
- Nominal input voltage
- 480 V AC
- Enclosure
- IP20 / NEMA / UL Type 1, with conformal coating
- AC input frequency
- 47-63 Hz
- Nominal line voltage
- 480 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

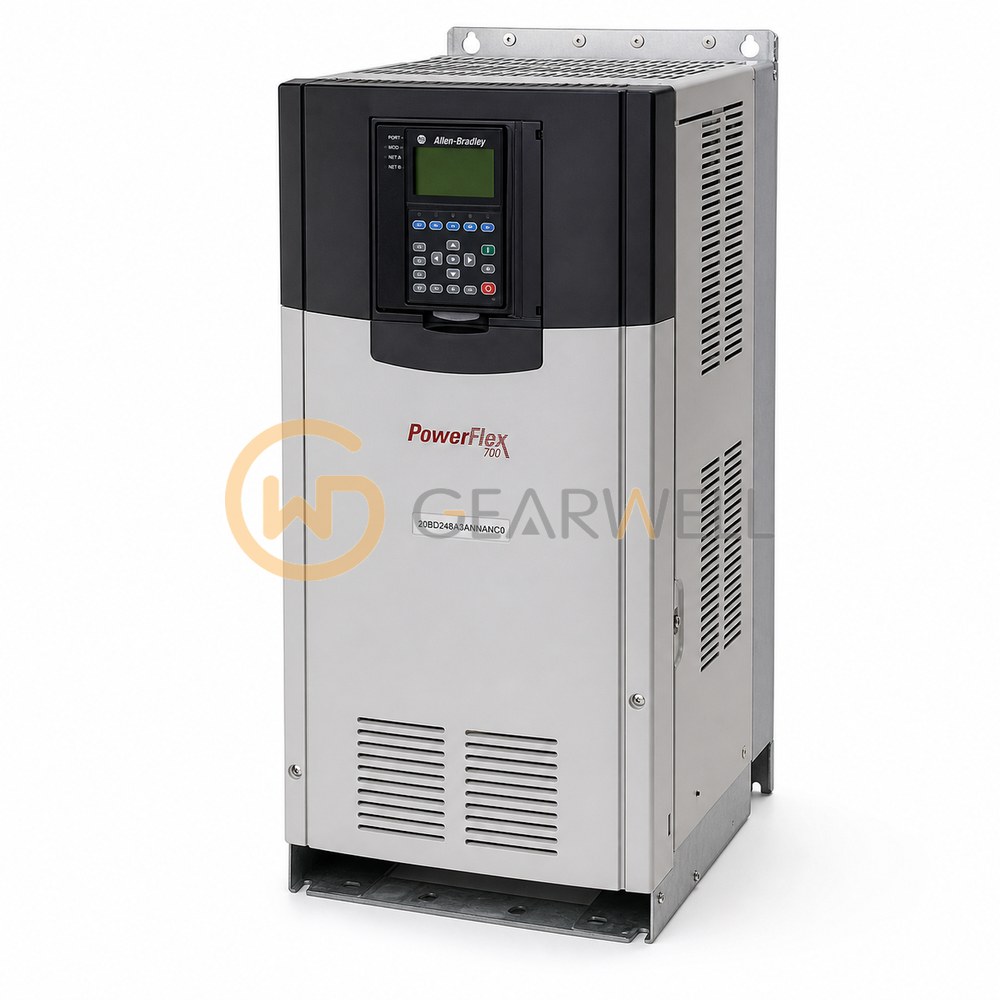

The Allen-Bradley 20BD248A3ANNANC0 is a PowerFlex 700 AC drive from Rockwell's PowerFlex family. At 480 V AC 3-phase input it is rated 200 HP normal duty and 150 HP heavy duty, with 248 A continuous output current, 273 A for 60 s and 372 A for 3 s. It is an IP20, NEMA/UL Type 1 drive with conformal coating in frame 6, rated for 0…50 °C surrounding air without derating (typical). It comes with an LCD HIM with a full numeric keypad and a 7 line x 21 character backlit display. It is supplied without the brake IGBT, which is optional on frames 4…6. It has an integral CE EMC filter and common mode choke. No internal communication adapter is fitted. It has the Vector Control option with 24V DC I/O. Motor control is volts per hertz, sensorless vector or vector control with Force Technology, with a 0…420 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
Technical reference
| Product name | Allen-Bradley 20BD248A3ANNANC0 PowerFlex 700 480 V 200 hp AC Drive |
|---|---|
| Brand | Allen-Bradley |
| Model | 20BD248A3ANNANC0 |
| Category | Variable Frequency Drives |
| Normal-duty motor output | 248 A continuous, 200 hp normal duty; frame 6 |
| Nominal input voltage | 480 V AC |
| Enclosure | IP20 / NEMA / UL Type 1, with conformal coating |
| AC input frequency | 47-63 Hz |
| Nominal line voltage | 480 V AC |
| Rated input apparent power | 194 kVA at 480 V AC, three-phase; normal duty |
| Rated input current | 233 A at 480 V AC, three-phase; normal duty |
| Input supply rating | 480 V AC, three-phase |
| Control and I/O | Vector control; 24 V DC digital inputs |
| Operator interface | LCD display with full numeric keypad |
| Factory communication module | No factory communication module |
| Degree of protection | IP20 |
| Feedback and braking | No encoder feedback option; No brake IGBT; no internal brake resistor |
