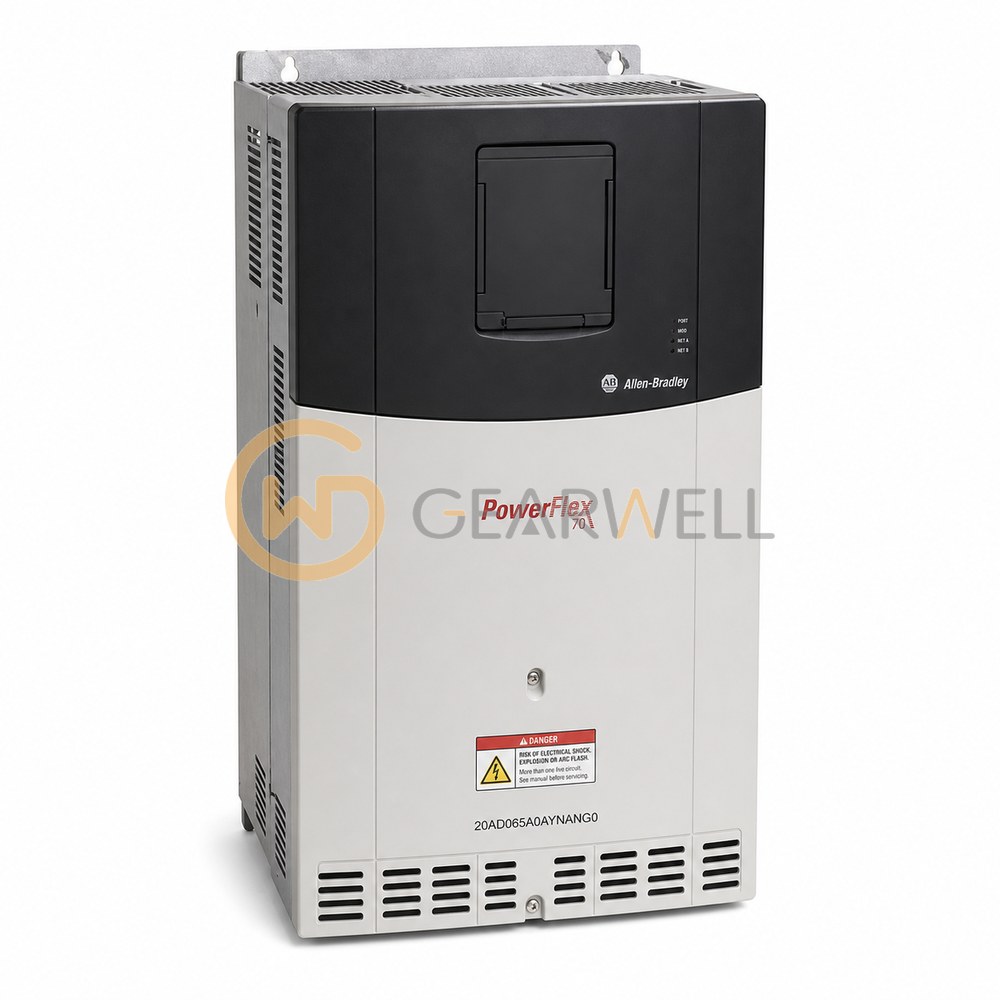

Allen-Bradley 20AD065A0AYNANG0 PowerFlex 70 480 V 50 hp AC Drive

Product overview

The Allen-Bradley 20AD065A0AYNANG0 is a PowerFlex 70 AC drive from Rockwell's PowerFlex family. At 480 V AC 3-phase input it is rated 50 HP (37 kW) normal duty and 40 HP heavy duty, with 65 A continuous output current, 78 A for 60 s and 104 A for 3 s. It is a panel-mount IP20, NEMA/UL Type 1 drive in frame E, rated for 0…50 °C surrounding air without derating. Conformal coating is standard. It is supplied with a blank cover instead of a HIM. It has an internal brake IGBT but no internal brake resistor, and an integral EMC filter. No internal communication adapter is fitted. It has enhanced control with DriveGuard Safe Torque Off, which meets EN ISO 13849-1 Category 3. Motor control is volts per hertz, sensorless vector or vector control with FORCE Technology, with a 0…500 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
