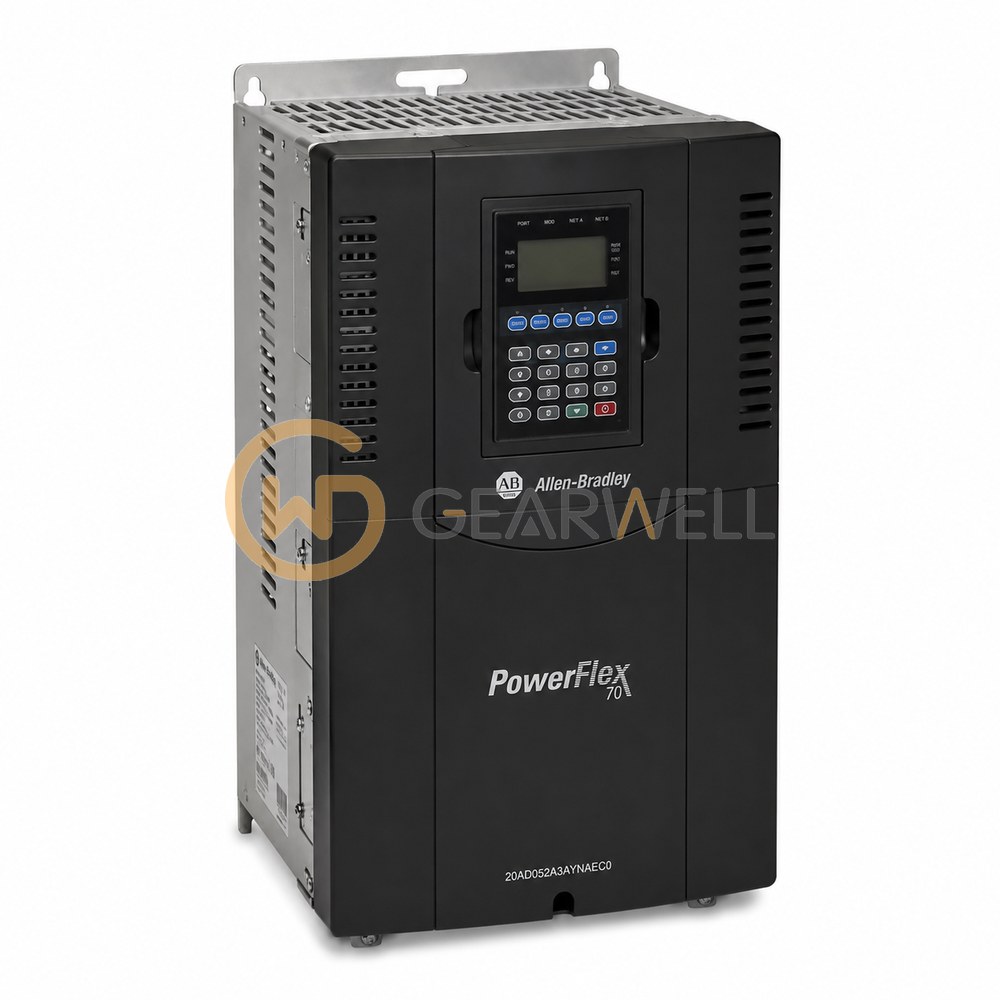

Allen-Bradley 20AD052A3AYNAEC0 PowerFlex 70 480 V 40 hp AC Drive

Product overview

The Allen-Bradley 20AD052A3AYNAEC0 is a PowerFlex 70 AC drive from Rockwell's PowerFlex family. At 480 V AC 3-phase input it is rated 40 HP (30 kW) normal duty and 30 HP heavy duty, with 52 A continuous output current, 60 A for 60 s and 80 A for 3 s. It is a panel-mount IP20, NEMA/UL Type 1 drive in frame E, rated for 0…50 °C surrounding air without derating. Conformal coating is standard. It comes with a full numeric LCD HIM with a 7-line x 21-character backlit display. It has an internal brake IGBT but no internal brake resistor, and an integral EMC filter. It includes an internal EtherNet/IP communication adapter. It has the enhanced control option. Motor control is volts per hertz, sensorless vector or vector control with FORCE Technology, with a 0…500 Hz output frequency range, 110% overload for up to 1 minute or 150% for up to 3 seconds, and Class 10 motor overload protection.
