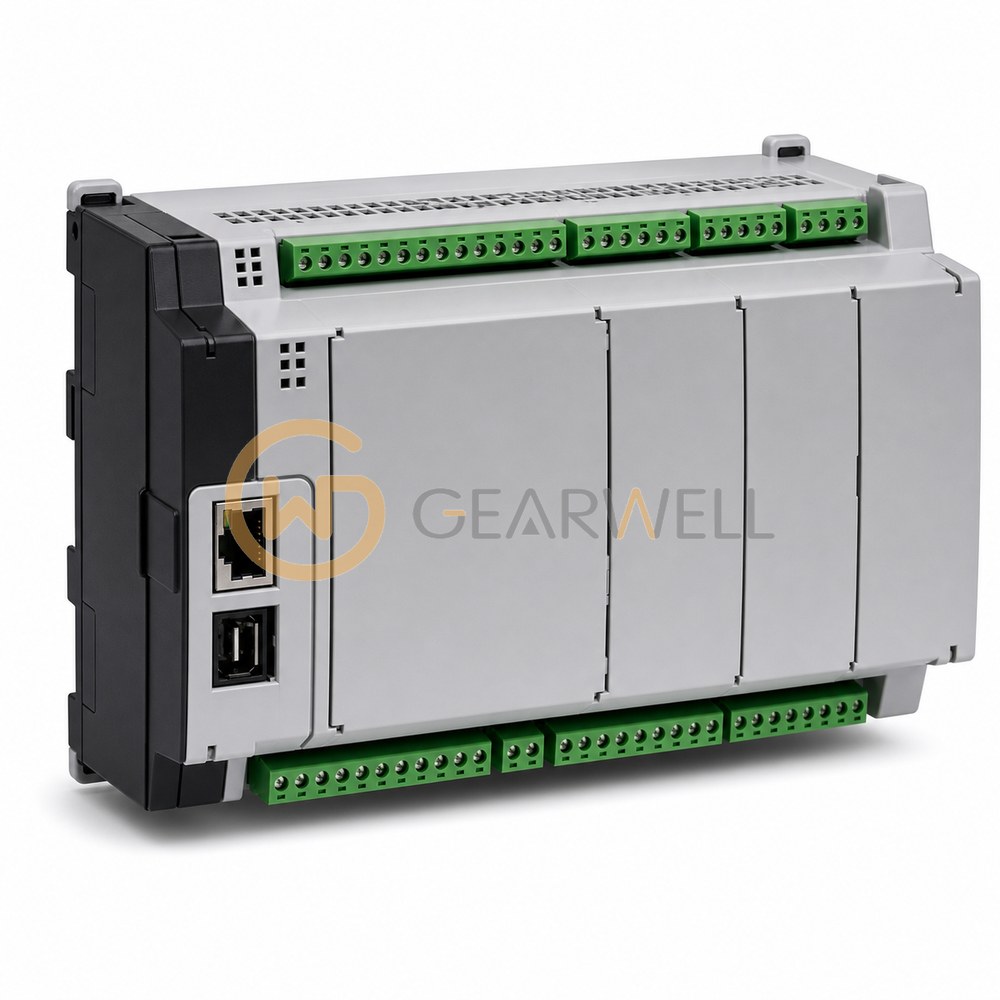

Allen-Bradley 2080-L70E-24QWB Micro870 24-Point EtherNet/IP PLC
- Brand
- Allen-Bradley
- Model
- 2080L70E24QWB
- GEARWELL SKU
- GWP-000002908
- Category
- PLCs & I/O
Key specifications
- Memory capacity
- 280 KB; supports up to 128 KB user data and up to 20,000 program steps.
- Controller supply
- 24 V DC nominal; 21.4…26.4 V DC, Class 2 or Limited Voltage Limited Current (LVLC) source.
- Digital input signal
- 24 V DC/AC.
- Plug-in module capacity
- Up to 3 Micro800 plug-in modules.
- Communication and programming ports
- RJ-45 Ethernet; non-isolated RS-232/RS-485 combo serial; USB Type B programming port.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2080-L70E-24QWB is a Micro870 24-point controller with 14 inputs for 24V DC/V AC and 10 relay outputs, with 4 embedded high-speed counters. It has an embedded 10/100 Base-T Ethernet port, USB programming and RS-232/RS-485 serial ports, 3 plug-in slots and support for up to eight expansion I/O modules, with about 20K program steps and 40 KB of data. With firmware 21.011 or later it supports Class 1 EtherNet/IP connections to up to 8 nodes. It takes a class 2 24V DC supply, such as the optional Micro800 power supply.
Technical reference
| Product name | Allen-Bradley 2080-L70E-24QWB Micro870 24-Point EtherNet/IP PLC |
|---|---|
| Brand | Allen-Bradley |
| Model | 2080L70E24QWB |
| Category | PLCs & I/O |
| Memory capacity | 280 KB; supports up to 128 KB user data and up to 20,000 program steps. |
| Controller supply | 24 V DC nominal; 21.4…26.4 V DC, Class 2 or Limited Voltage Limited Current (LVLC) source. |
| Digital input signal | 24 V DC/AC. |
| Plug-in module capacity | Up to 3 Micro800 plug-in modules. |
| Communication and programming ports | RJ-45 Ethernet; non-isolated RS-232/RS-485 combo serial; USB Type B programming port. |
| Digital output type | Relay outputs. |
| DNP3 support | No. |
| Expansion I/O module capacity | Up to 8 expansion I/O modules; subject to module compatibility and system power limits. |
| Operating temperature | -20…65 °C; install in a suitable enclosure. |
| Number of Input Points available | 14 |
| Number of Output Points Available | 10 |
