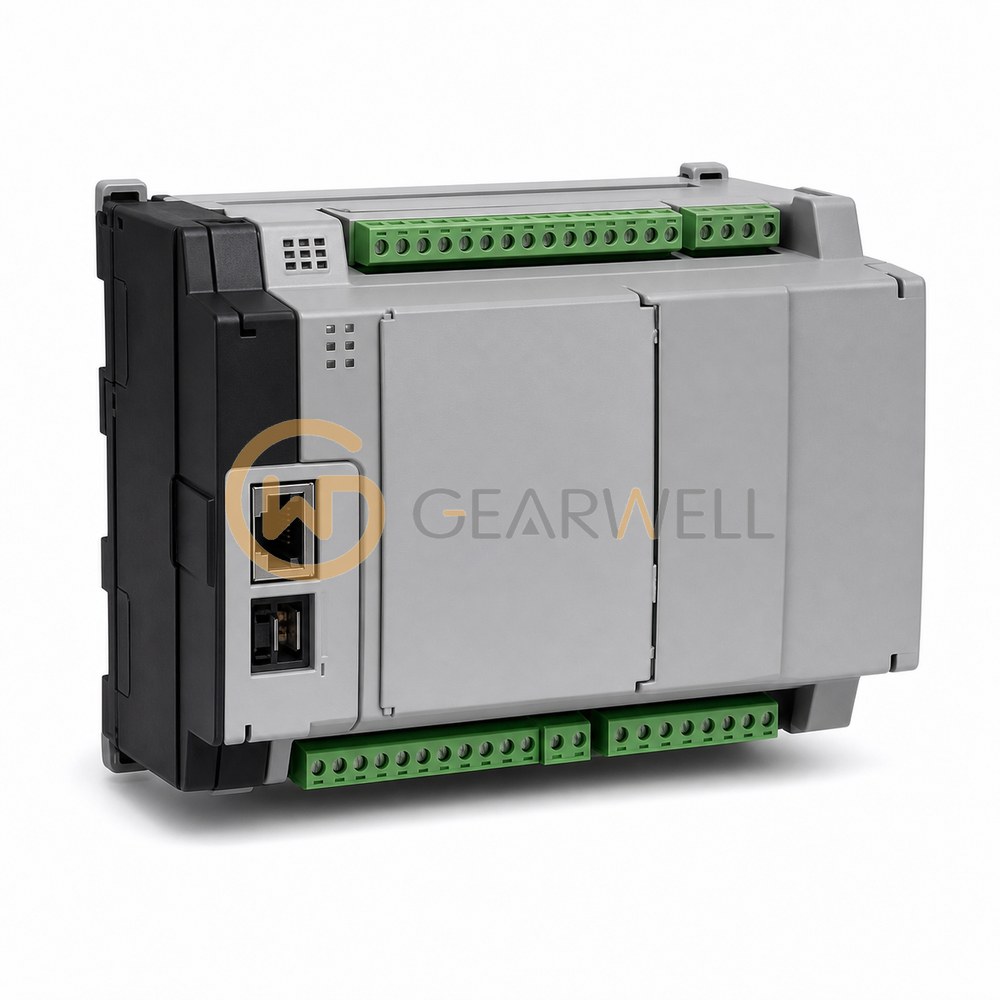

Allen-Bradley 2080-L50E-24QBB Micro850 24-Point EtherNet/IP PLC
- Brand
- Allen-Bradley
- Model
- 2080L50E24QBB
- GEARWELL SKU
- GWP-000000155
- Category
- PLCs & I/O
Key specifications
- Controller supply
- 24 V DC nominal; 21.4…26.4 V DC, Class 2 source.
- Digital input signal
- 24 V DC/AC.
- Plug-in module capacity
- Up to 3 Micro800 plug-in modules.
- Communication and programming ports
- RJ-45 Ethernet; non-isolated RS-232/RS-485 combo serial; USB Type B programming port.
- Digital output type
- 24 V DC sourcing transistor outputs.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2080-L50E-24QBB is a Micro850 24-point controller with 14 inputs for 24V DC/V AC and 10 source outputs for 24V DC, with 2 embedded PTO outputs for basic positioning and 4 embedded high-speed counters. It has an embedded 10/100 Base-T Ethernet port, USB programming and RS-232/RS-485 serial ports, 3 plug-in slots and support for up to four expansion I/O modules, with about 10K program steps and 20 KB of data. With firmware 21.011 or later it supports Class 1 EtherNet/IP connections to up to 8 nodes. It takes a class 2 24V DC supply, such as the optional Micro800 power supply.
Technical reference
| Product name | Allen-Bradley 2080-L50E-24QBB Micro850 24-Point EtherNet/IP PLC |
|---|---|
| Brand | Allen-Bradley |
| Model | 2080L50E24QBB |
| Category | PLCs & I/O |
| Controller supply | 24 V DC nominal; 21.4…26.4 V DC, Class 2 source. |
| Digital input signal | 24 V DC/AC. |
| Plug-in module capacity | Up to 3 Micro800 plug-in modules. |
| Communication and programming ports | RJ-45 Ethernet; non-isolated RS-232/RS-485 combo serial; USB Type B programming port. |
| Digital output type | 24 V DC sourcing transistor outputs. |
| Expansion I/O module capacity | Up to 4 expansion I/O modules; subject to module compatibility and system power limits. |
| Operating temperature | -20…65 °C; install in a suitable enclosure. |
| High Speed Counter Support | 4 |
| Pulse Train Output Support | 2 |
| Number of Input Points available | 14 |
| Number of Output Points Available | 10 |
