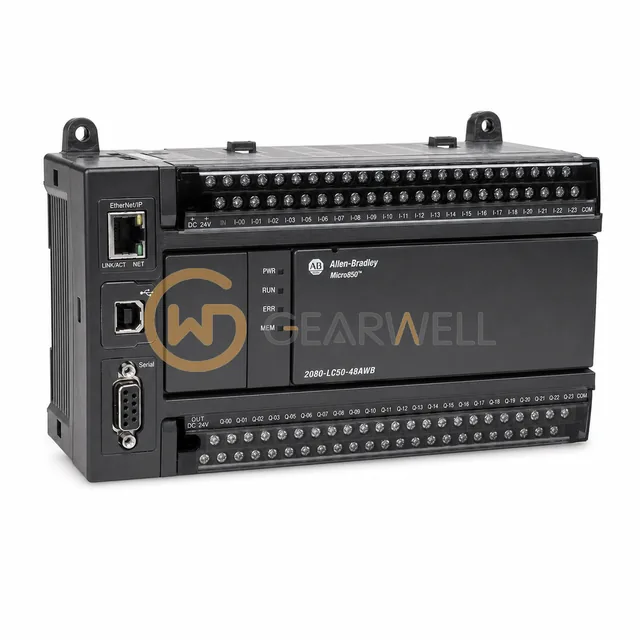

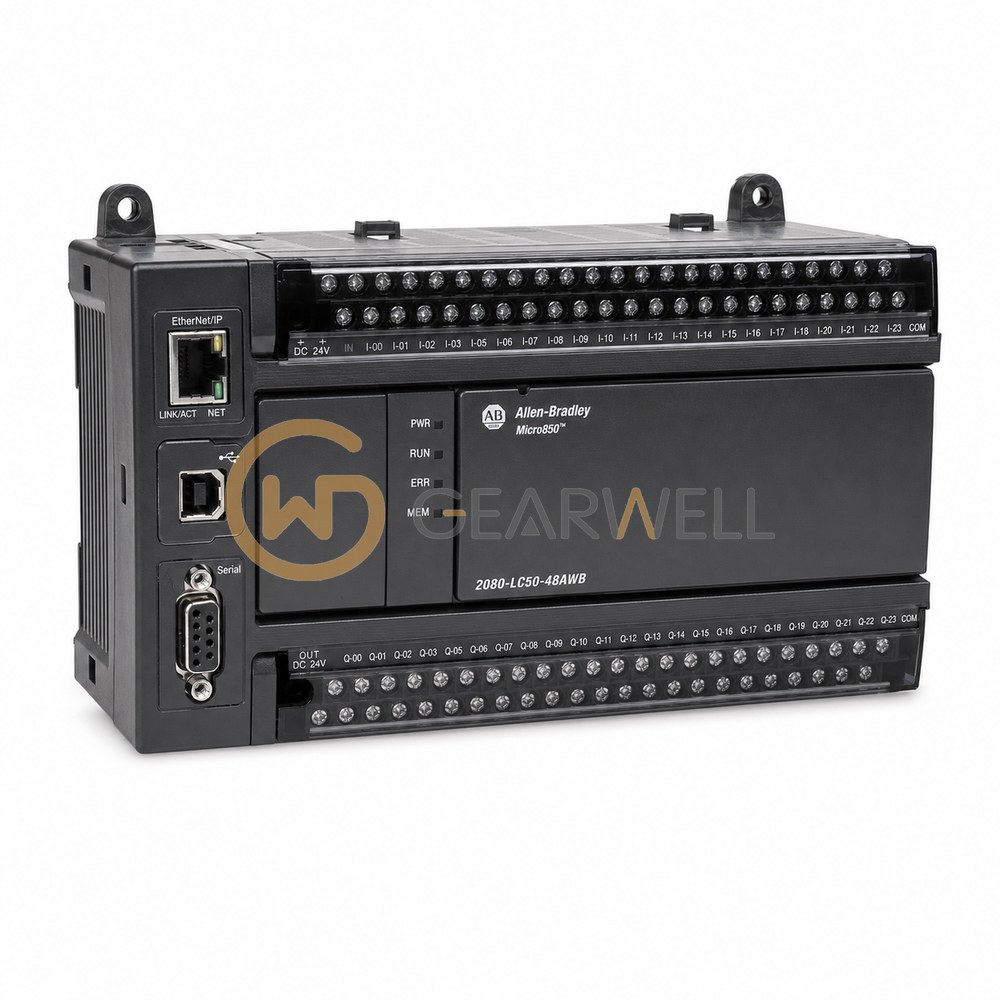

Allen-Bradley 2080-LC50-48AWB Micro850 48-Point EtherNet/IP PLC
- Brand
- Allen-Bradley
- Model
- 2080-LC50-48AWB
- GEARWELL SKU
- GWP-000000221
- Category
- PLCs & I/O
Key specifications
- Controller supply (nominal)
- 24 V DC; use a Class 2 or Limited Voltage Limited Current (LVLC) source meeting the controller specifications.
- Product type
- Micro850 48 I/O EtherNet/IP Controller
- Catalog number
- 2080-LC50-48AWB
- Manufacturer lifecycle status
- Discontinued
- Relative humidity
- 5…95%, noncondensing.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2080-LC50-48AWB is a Micro850 48-point controller with 28 inputs for 120V AC and 20 relay outputs. It has an embedded 10/100 Base-T Ethernet port, USB programming and RS-232/RS-485 serial ports, 5 plug-in slots and support for up to four expansion I/O modules, with about 10K program steps and 20 KB of data. It takes a class 2 24V DC supply, such as the optional Micro800 power supply.
Technical reference
| Product name | Allen-Bradley 2080-LC50-48AWB Micro850 48-Point EtherNet/IP PLC |
|---|---|
| Brand | Allen-Bradley |
| Model | 2080-LC50-48AWB |
| Category | PLCs & I/O |
| Controller supply (nominal) | 24 V DC; use a Class 2 or Limited Voltage Limited Current (LVLC) source meeting the controller specifications. |
| Product type | Micro850 48 I/O EtherNet/IP Controller |
| Catalog number | 2080-LC50-48AWB |
| Manufacturer lifecycle status | Discontinued |
| Relative humidity | 5…95%, noncondensing. |
| Communication and programming ports | RJ-45 Ethernet; non-isolated RS-232/RS-485 combo serial; USB Type B for temporary local programming. |
| Product description | Micro850 controller with 28 inputs rated 120 V AC and 20 relay outputs. |
| Operating temperature | -20…65 °C. |
| Nonoperating temperature | -40…85 °C. |
