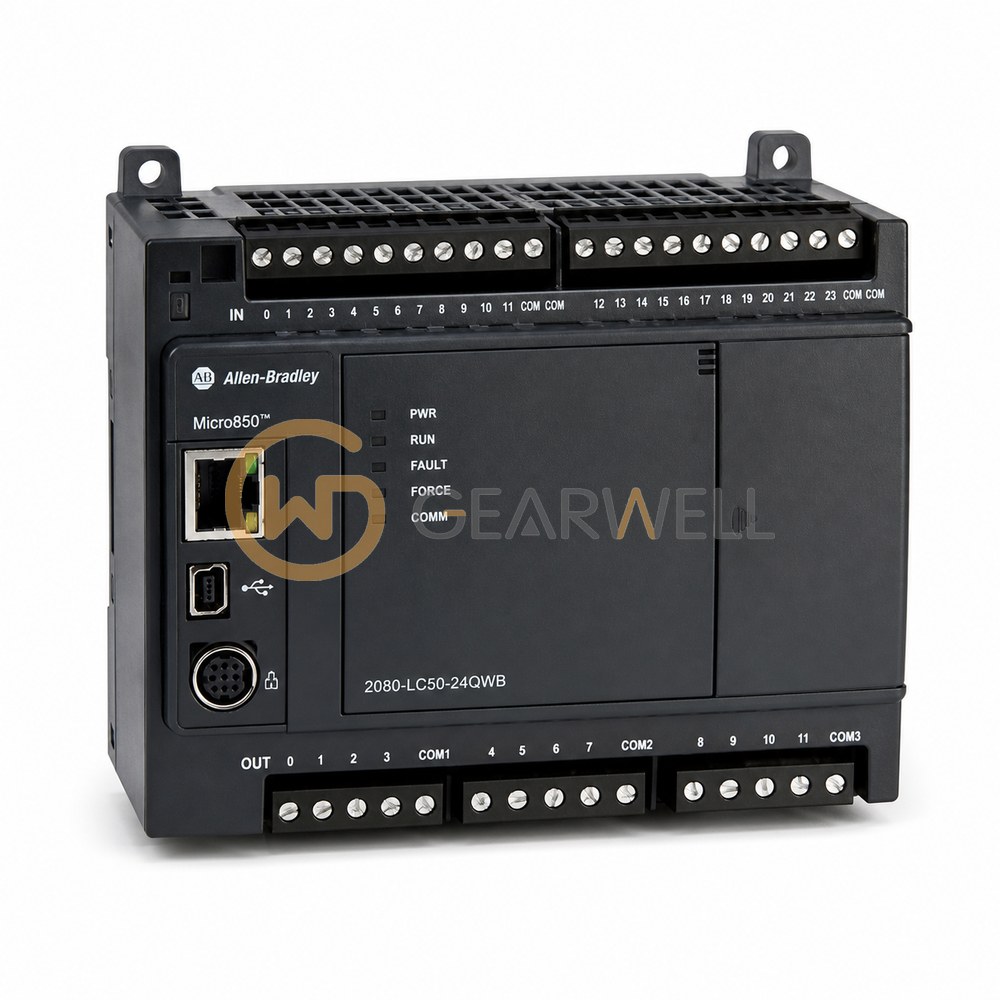

Allen-Bradley 2080-LC50-24QWB Micro850 24-Point EtherNet/IP PLC
- Brand
- Allen-Bradley
- Model
- 2080-LC50-24QWB
- GEARWELL SKU
- GWP-000001407
- Category
- PLCs & I/O
Key specifications
- I/O count
- 24
- Dimensions (H x W x D)
- 90 x 158 x 80 mm; excluding mounting feet and DIN rail latches.
- Input type
- 24V DC/AC
- Output type
- Relay
- Controller supply (nominal)
- 24 V DC; use a Class 2 or Limited Voltage Limited Current (LVLC) source meeting the controller specifications.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 2080-LC50-24QWB is a Micro850 24-point controller with 14 inputs for 24V DC/V AC and 10 relay outputs, with 4 embedded high-speed counters. It has an embedded 10/100 Base-T Ethernet port, USB programming and RS-232/RS-485 serial ports, 3 plug-in slots and support for up to four expansion I/O modules, with about 10K program steps and 20 KB of data. It takes a class 2 24V DC supply, such as the optional Micro800 power supply.
Technical reference
| Product name | Allen-Bradley 2080-LC50-24QWB Micro850 24-Point EtherNet/IP PLC |
|---|---|
| Brand | Allen-Bradley |
| Model | 2080-LC50-24QWB |
| Category | PLCs & I/O |
| I/O count | 24 |
| Dimensions (H x W x D) | 90 x 158 x 80 mm; excluding mounting feet and DIN rail latches. |
| Input type | 24V DC/AC |
| Output type | Relay |
| Controller supply (nominal) | 24 V DC; use a Class 2 or Limited Voltage Limited Current (LVLC) source meeting the controller specifications. |
| Product type | Micro850 EtherNet/IP controller |
| Digital inputs | 14 |
| Enclosure type | Open style |
| Digital outputs | 10 |
| Relative humidity | 5…95%, noncondensing. |
| Communication and programming ports | RJ-45 Ethernet; non-isolated RS-232/RS-485 combo serial; USB Type B for temporary local programming. |
| Operating temperature | -20…65 °C. |
| Nonoperating temperature | -40…85 °C. |
