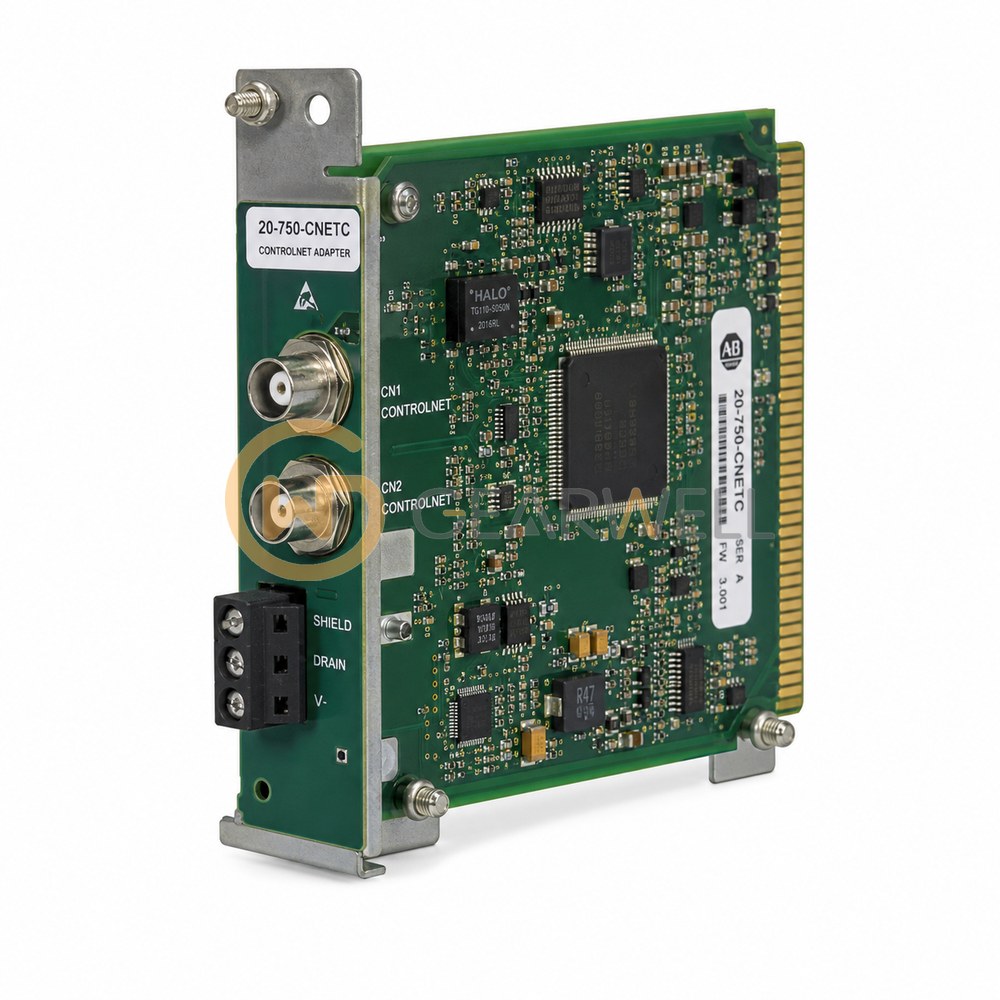

Allen-Bradley 20750CNETC ControlNet Communication Adapter
- Brand
- Allen-Bradley
- Model
- 20750CNETC
- GEARWELL SKU
- GWP-000000993
- Category
- Drives and Motors
Key specifications
- Product type
- ControlNet communication adapter
- Voltage class
- C, D, E and F
- Compatible product series
- PowerFlex 750-Series
- Compatible drive frames
- All frames
- Compatible option slots
- Slots 4-6
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 20-750-CNETC is a coaxial ControlNet option module for PowerFlex 750-Series drives, installed in slots 4 to 6. It runs at a fixed 5 Mbps on the network and talks to the drive over DPI at 500 Kbps, drawing 250 mA at 14V DC from the drive. It measures 68.0 x 150.0 x 26.0 mm and weighs 62 g.
Technical reference
| Product name | Allen-Bradley 20750CNETC ControlNet Communication Adapter |
|---|---|
| Brand | Allen-Bradley |
| Model | 20750CNETC |
| Category | Drives and Motors |
| Product type | ControlNet communication adapter |
| Voltage class | C, D, E and F |
| Compatible product series | PowerFlex 750-Series |
| Compatible drive frames | All frames |
| Compatible option slots | Slots 4-6 |
| Official catalog number | 20-750-CNETC |
