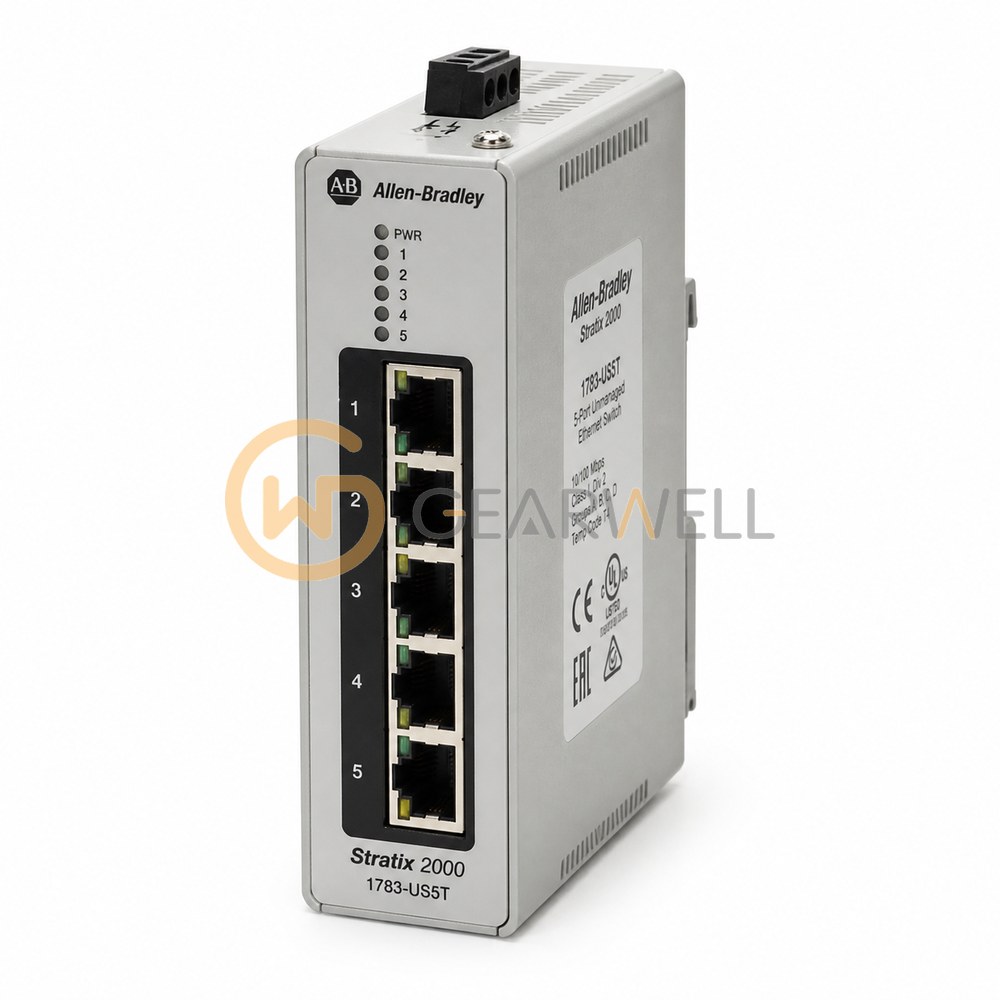

Allen-Bradley 1783-US5T Stratix 2000 5-Port Unmanaged Switch
- Brand
- Allen-Bradley
- Model
- 1783-US5T
- GEARWELL SKU
- GWP-000003706
- Category
- Industrial Communication
Key specifications
- Network
- Ethernet
- Mounting
- DIN rail
- SFP slots
- 0
- RJ45 ports
- 5 × 10/100 Mbps
- Product type
- Stratix 2000 unmanaged Ethernet switch
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1783-US5T is a Stratix 2000 unmanaged Ethernet switch with 5 Fast Ethernet RJ45 ports. It runs on 24V (12…48V DC or 18…30V AC, 50/60 Hz, SELV), is an open-style IP30 device and is rated for -10…+60 °C. Power consumption is 3.4 W max. These figures are for the current Series B.
Technical reference
| Product name | Allen-Bradley 1783-US5T Stratix 2000 5-Port Unmanaged Switch |
|---|---|
| Brand | Allen-Bradley |
| Model | 1783-US5T |
| Category | Industrial Communication |
| Network | Ethernet |
| Mounting | DIN rail |
| SFP slots | 0 |
| RJ45 ports | 5 × 10/100 Mbps |
| Product type | Stratix 2000 unmanaged Ethernet switch |
| Number of ports | 5 |
| Environmental rating by hardware series | IP20 (Series A); IP30 (Series B) |
| MAC address capacity | 1K (Series A); 2K (Series B) |
| Operating temperature by hardware series | 0...60 °C (Series A); -10 < Ta < +60 °C (Series B) |
| Single-mode fiber ports | 0 |
